Product Specifications
| Manufacturer Part Number | 00013318 |
| Functional Length (Decimal Inch) | 2.500" |
| Functional Length (mm) | 63.50mm |
| Head Length (Decimal Inch) | 0.420" |
| Head Length (mm) | 10.67mm |
| Shank Length (Decimal Inch) | 2.080" |
| Shank Length (mm) | 52.83mm |
| Shank Width (Decimal Inch) | 0.375" |
| Shank Width (mm) | 9.53mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.375" |
| Height of Tool Holder Shank (mm) | 9.53mm |
| Functional Height (Decimal Inch) | 0.375" |
| Functional Height (mm) | 9.53mm |
| Functional Width (Decimal Inch) | 0.187" |
| Functional Width (mm) | 4.75mm |
| Cutting Direction | Neutral |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 50 Degree |
| Tool Cutting Edge Angle Code | M |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 140 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 50 Degree |
| Insert Shape Code | C |
| Shank Type | Square shank |

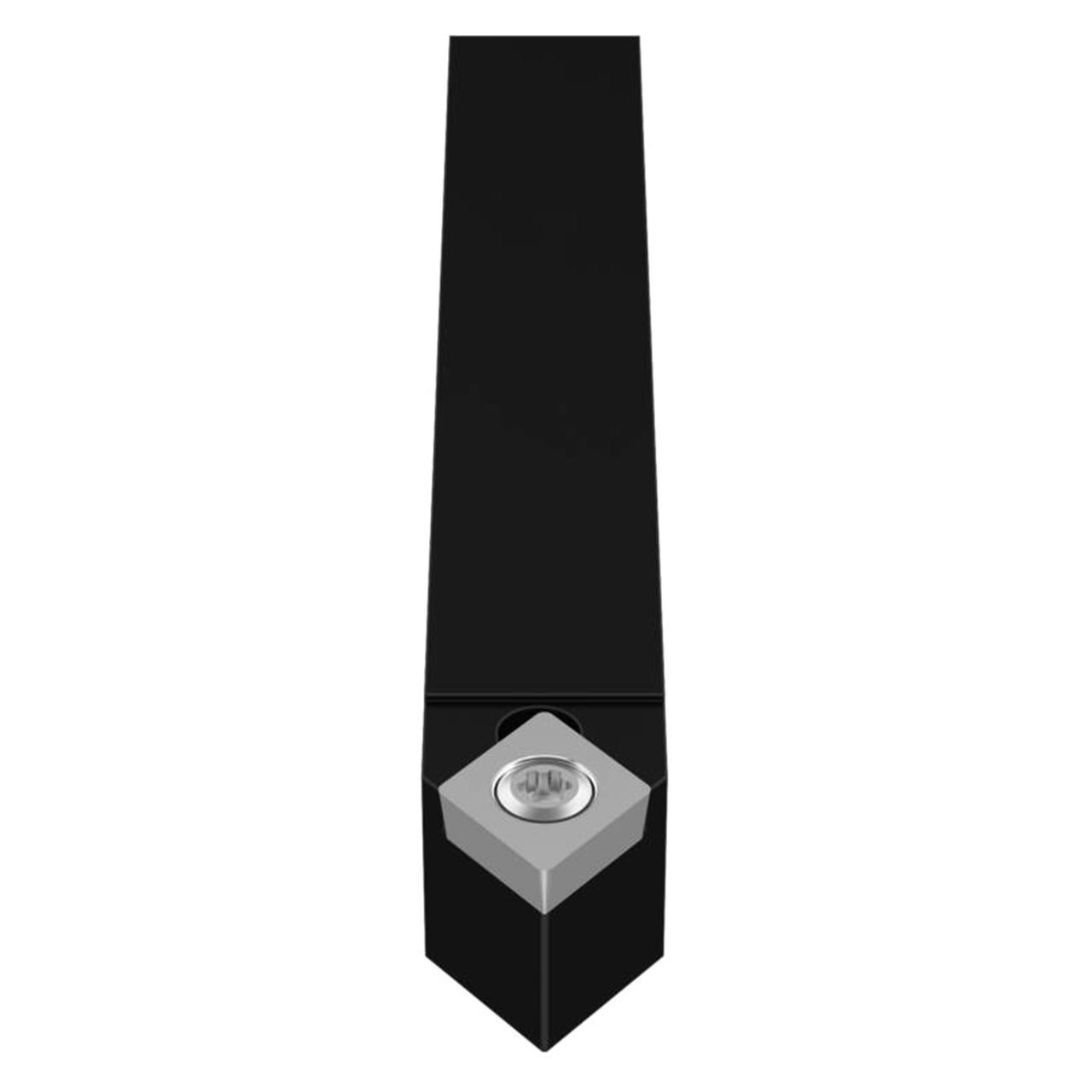

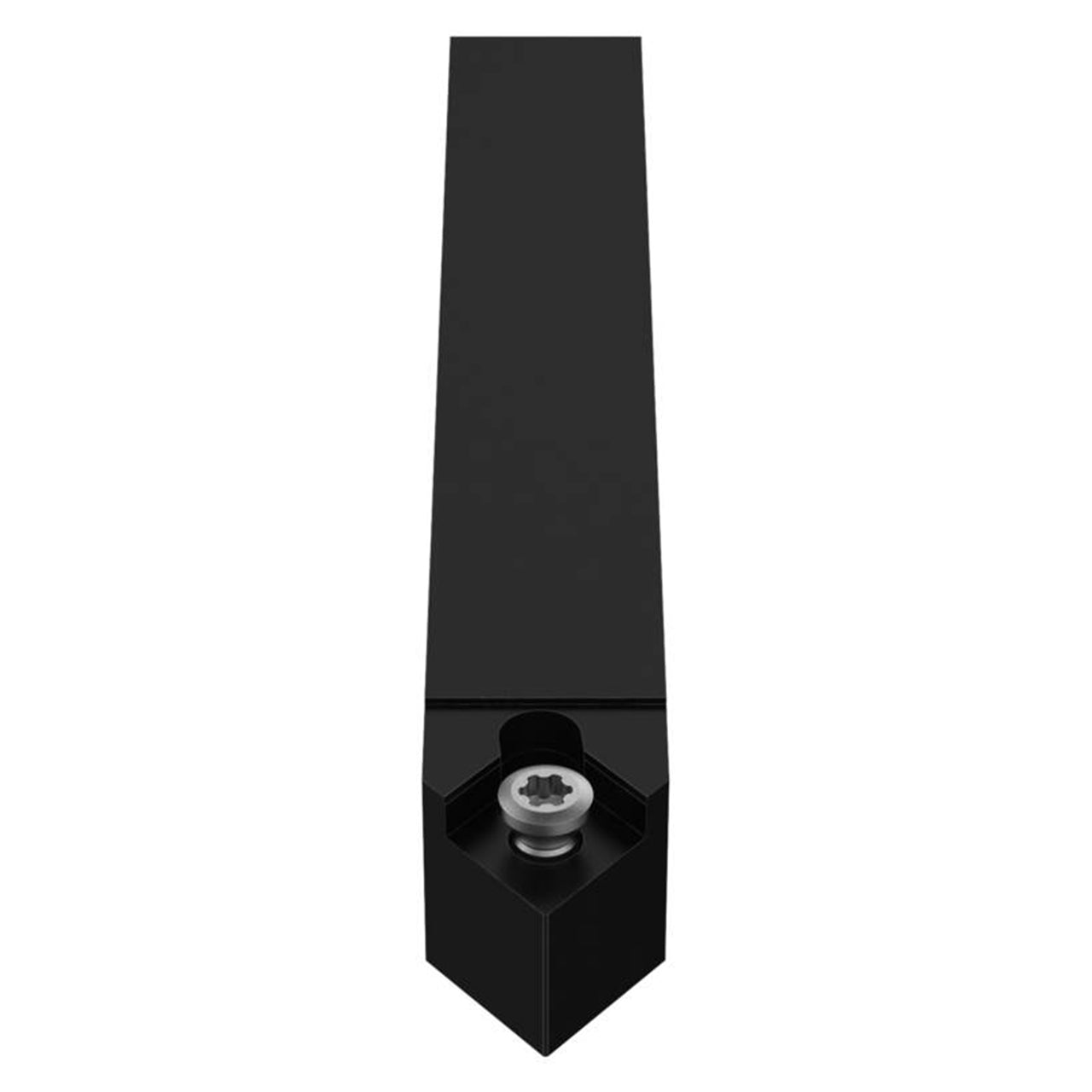

| Product Type | Indexable Turning Toolholder |
