Product Specifications
| Manufacturer Part Number | 00013316 |
| Functional Length (Decimal Inch) | 3.504" |
| Functional Length (mm) | 89.00mm |
| Head Length (Decimal Inch) | 0.681" |
| Head Length (mm) | 17.30mm |
| Shank Width (Decimal Inch) | 0.500" |
| Shank Width (mm) | 12.70mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.500" |
| Height of Tool Holder Shank (mm) | 12.70mm |
| Functional Width (Decimal Inch) | 0.551" |
| Functional Width (mm) | 14.00mm |
| Cutting Direction | Right Hand |
| Insert Clamping System | S |
| Tool Cutting Edge Angle (Degree) | 75 Degree |
| Tool Cutting Edge Angle Code | R |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 75 Degree |
| Insert Shape Code | C |
| Shank Type | Square shank |

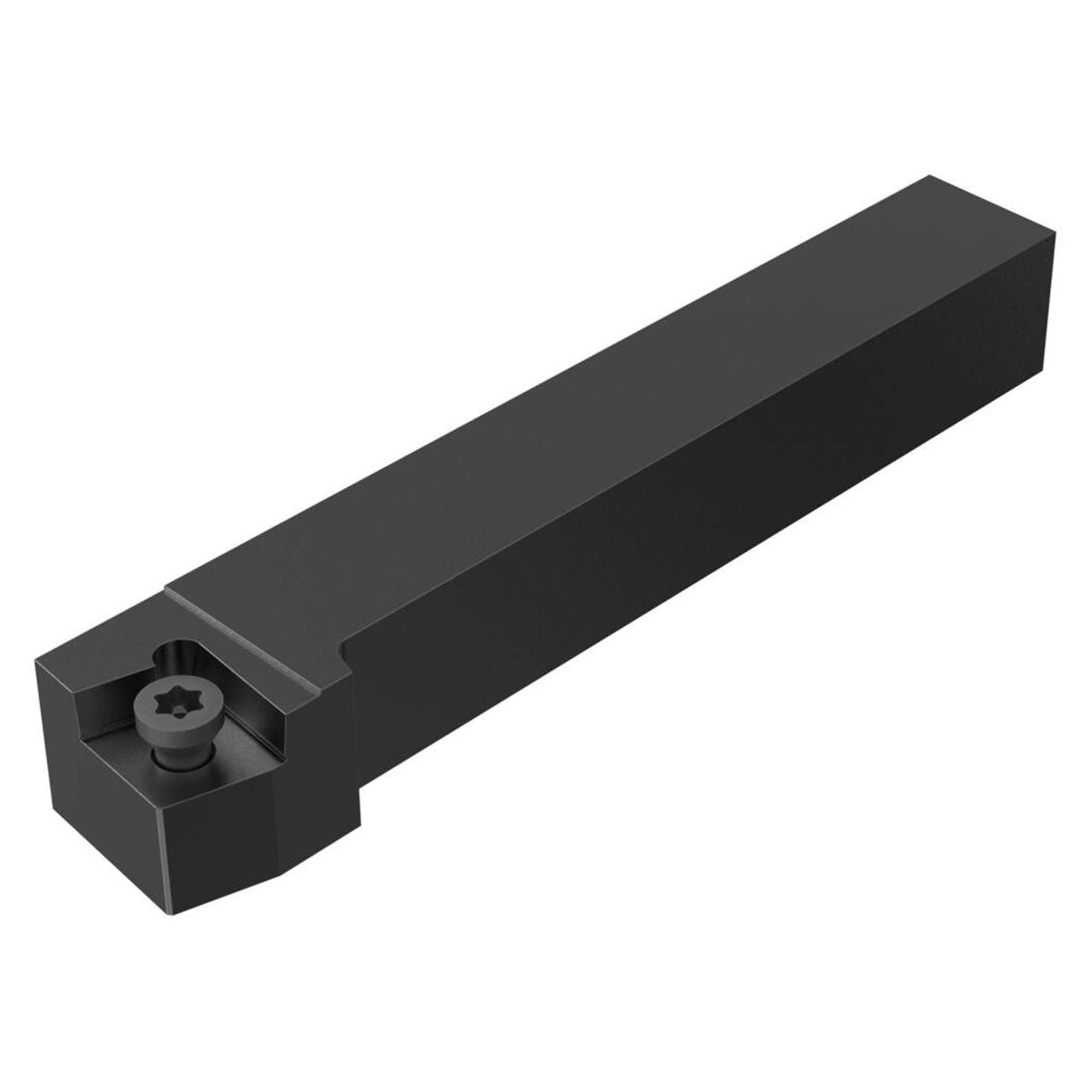

| Product Type | Indexable Turning Toolholder |
