Product Specifications
| Manufacturer Part Number | 00013207 |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 15.748" |
| Minimum Cutting Diameter Internal 3 (mm) | 400.00mm |
| Functional Length (Decimal Inch) | 6.000" |
| Functional Length (mm) | 152.40mm |
| Head Length (Decimal Inch) | 1.498" |
| Head Length (mm) | 38.04mm |
| Shank Length (Decimal Inch) | 4.502" |
| Shank Length (mm) | 114.36mm |
| Shank Width (Decimal Inch) | 1.250" |
| Shank Width (mm) | 31.75mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.065" |
| Maximum Radial Cutting Depth (mm) | 1.64mm |
| Maximum Cutting Depth (Decimal Inch) | 0.654" |
| Maximum Cutting Depth (mm) | 16.61mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.250" |
| Height of Tool Holder Shank (mm) | 31.75mm |
| Functional Height (Decimal Inch) | 1.250" |
| Functional Height (mm) | 31.75mm |
| Functional Width (Decimal Inch) | 2.000" |
| Functional Width (mm) | 50.80mm |
| Rake Orthogonal Angle (Degree) | -4 Degree |
| Axial Rake Angle (Degree) | -4 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | M |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle Code | L |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Inclination Angle (Degree) | -13 Degree |
| Maximum Ramping Angle (Degree) | 516 Degree |
| Insert Shape Code | V |
| Shank Type | Square shank |

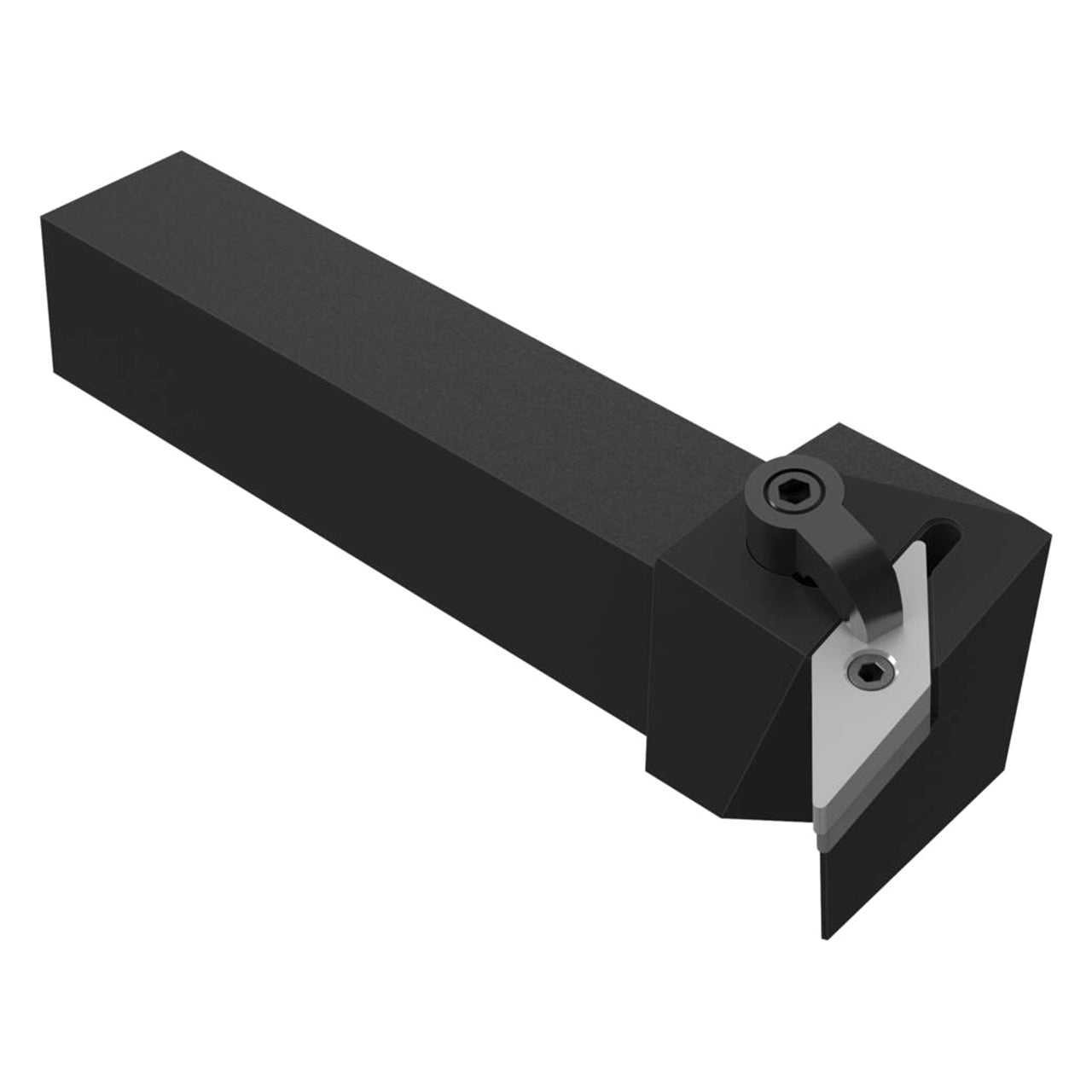

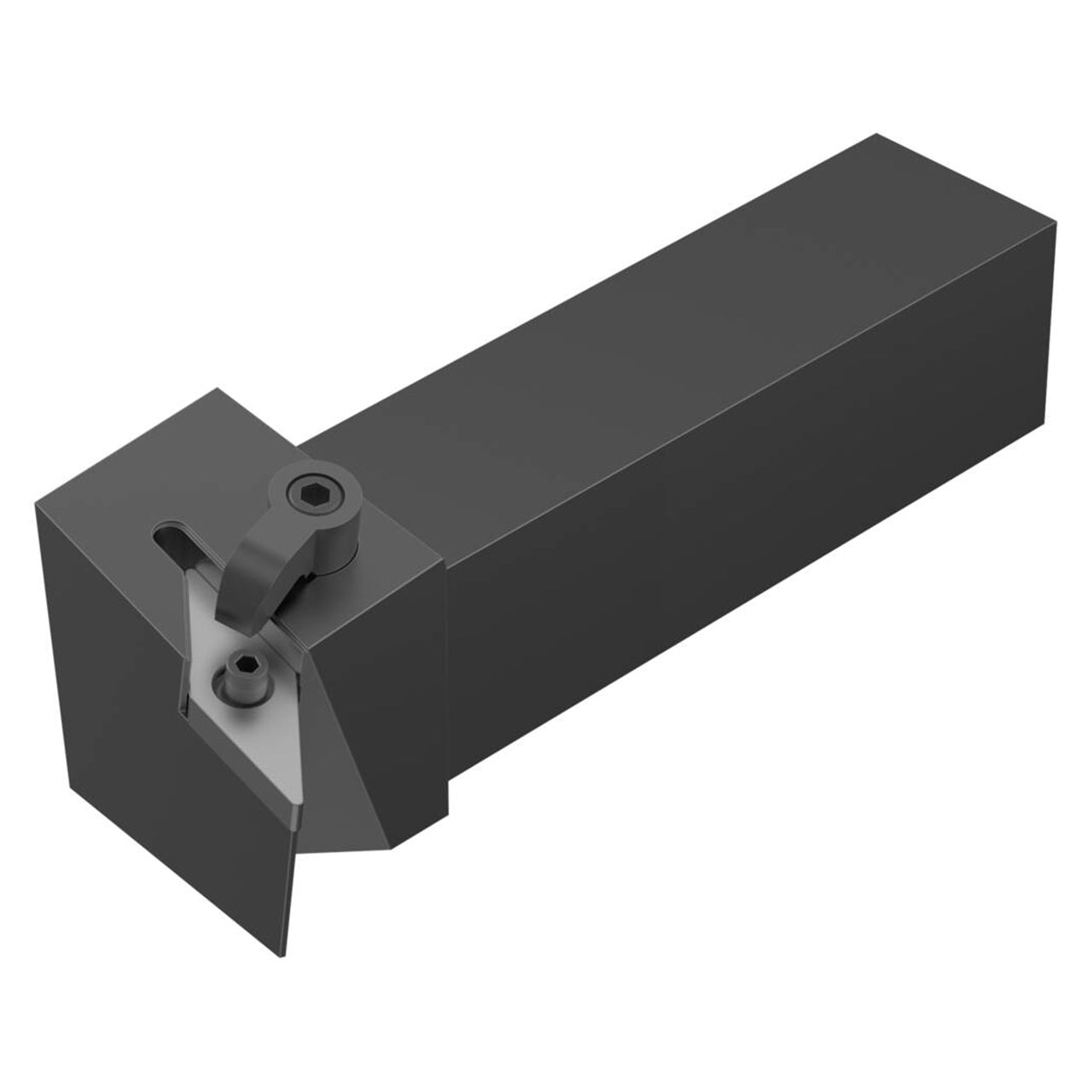

| Product Type | Indexable Turning Toolholder |
