Product Specifications
| Manufacturer Part Number | 00013104 |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 98.425" |
| Minimum Cutting Diameter Internal 3 (mm) | 2500.00mm |
| Functional Length (Decimal Inch) | 7.000" |
| Functional Length (mm) | 177.80mm |
| Head Length (Decimal Inch) | 3.530" |
| Head Length (mm) | 89.66mm |
| Shank Length (Decimal Inch) | 3.470" |
| Shank Length (mm) | 88.14mm |
| Shank Width (Decimal Inch) | 1.250" |
| Shank Width (mm) | 31.75mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.045" |
| Maximum Radial Cutting Depth (mm) | 1.14mm |
| Maximum Cutting Depth (Decimal Inch) | 1.750" |
| Maximum Cutting Depth (mm) | 44.45mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.250" |
| Height of Tool Holder Shank (mm) | 31.75mm |
| Functional Height (Decimal Inch) | 1.250" |
| Functional Height (mm) | 31.75mm |
| Functional Width (Decimal Inch) | 1.500" |
| Functional Width (mm) | 38.10mm |
| Cutting Direction | Right Hand |
| Insert Clamping System | M |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle Code | G |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Insert Shape Code | R |
| Shank Type | Square shank |

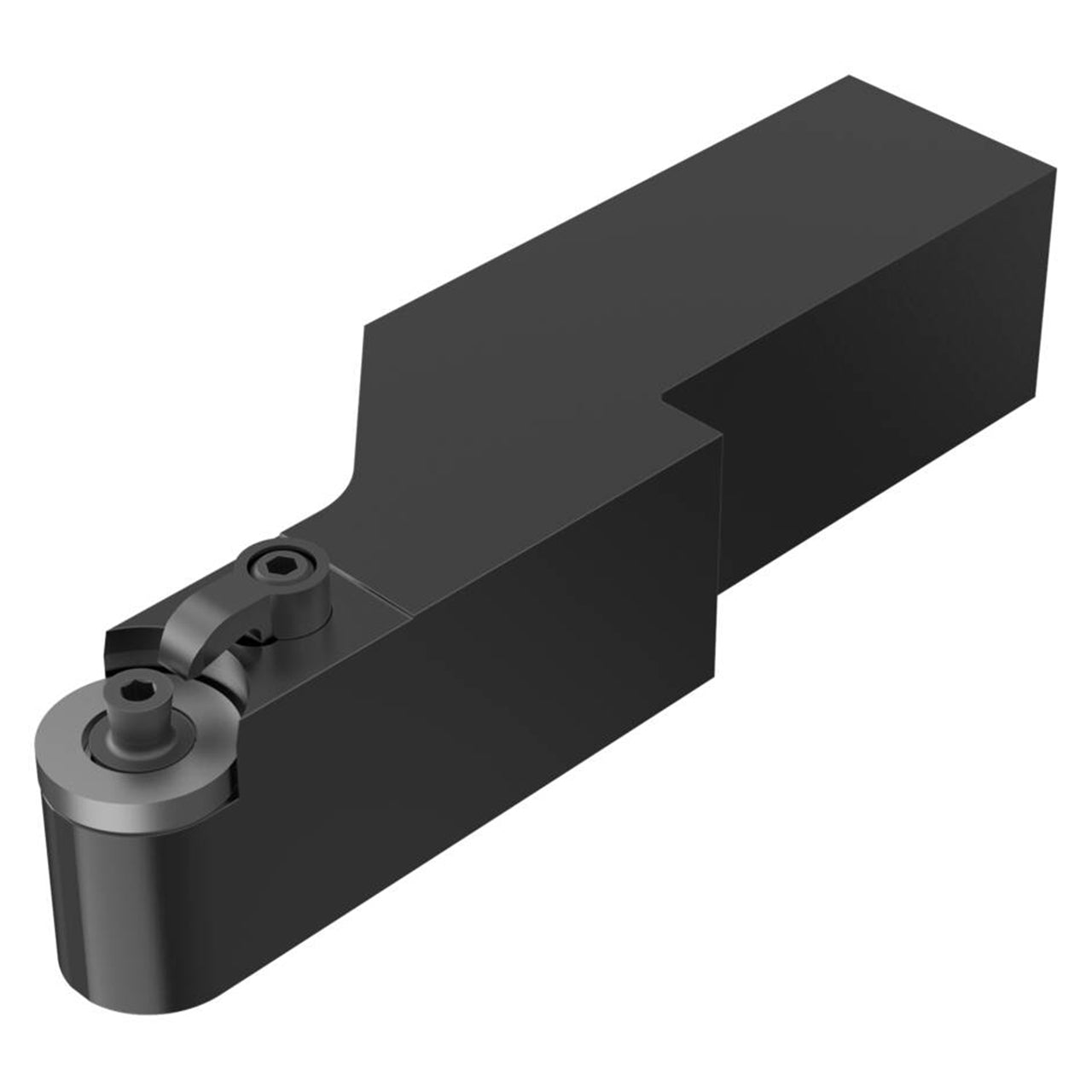

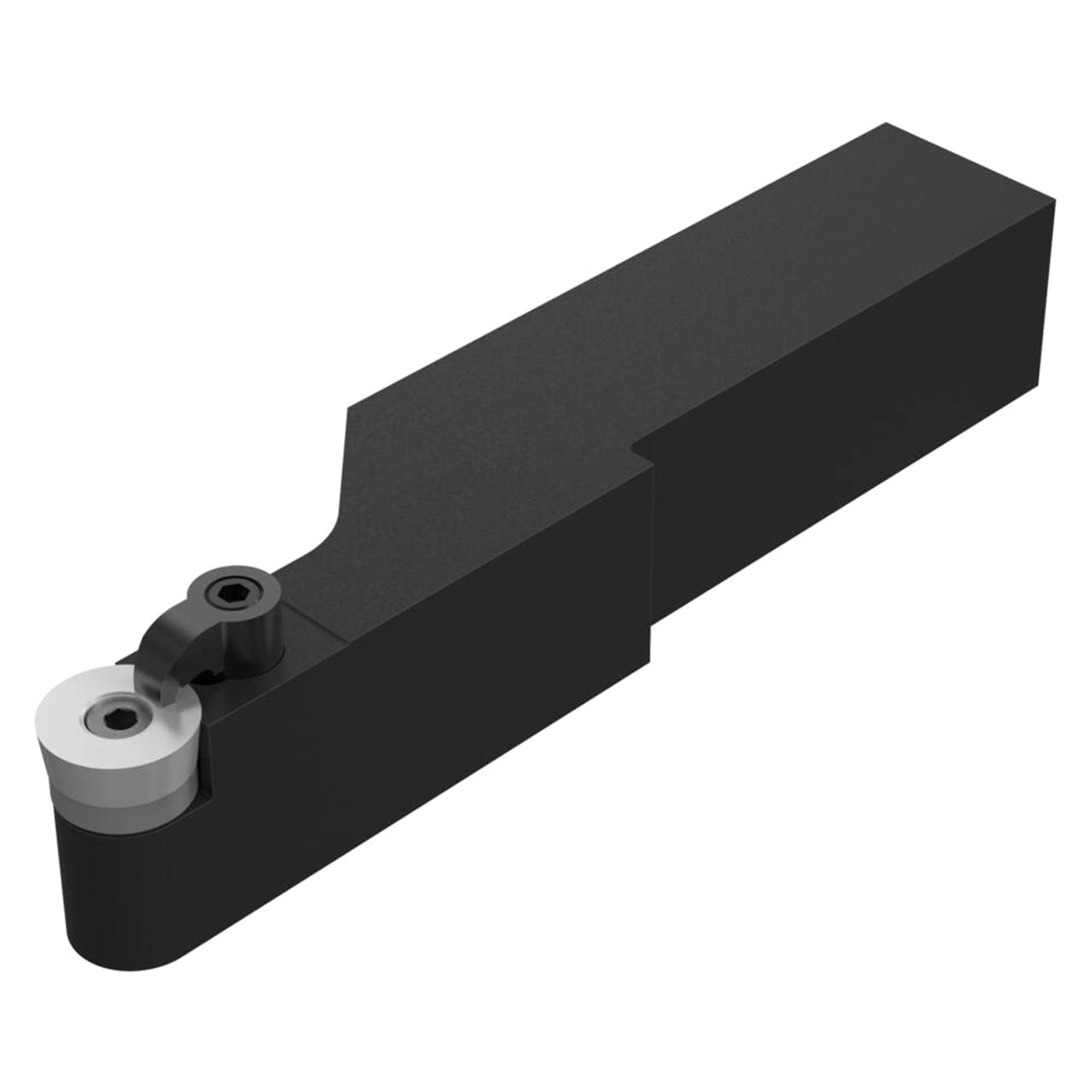

| Product Type | Indexable Turning Toolholder |
