Product Specifications
| Manufacturer Part Number | 00012883 |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 6.299" |
| Minimum Cutting Diameter Internal 3 (mm) | 160.00mm |
| Functional Length (Decimal Inch) | 6.000" |
| Functional Length (mm) | 152.40mm |
| Head Length (Decimal Inch) | 2.018" |
| Head Length (mm) | 51.26mm |
| Shank Length (Decimal Inch) | 3.982" |
| Shank Length (mm) | 101.14mm |
| Shank Width (Decimal Inch) | 1.000" |
| Shank Width (mm) | 25.40mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.067" |
| Maximum Radial Cutting Depth (mm) | 1.70mm |
| Maximum Cutting Depth (Decimal Inch) | 0.591" |
| Maximum Cutting Depth (mm) | 15.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.000" |
| Height of Tool Holder Shank (mm) | 25.40mm |
| Functional Height (Decimal Inch) | 1.000" |
| Functional Height (mm) | 25.40mm |
| Functional Width (Decimal Inch) | 1.250" |
| Functional Width (mm) | 31.75mm |
| Rake Orthogonal Angle (Degree) | -4 Degree |
| Axial Rake Angle (Degree) | -13 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | M |
| Tool Cutting Edge Angle (Degree) | 93 Degree |
| Tool Cutting Edge Angle Code | J |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 142 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 93 Degree |
| Inclination Angle (Degree) | -13 Degree |
| Maximum Ramping Angle (Degree) | 516 Degree |
| Insert Shape Code | V |
| Shank Type | Square shank |

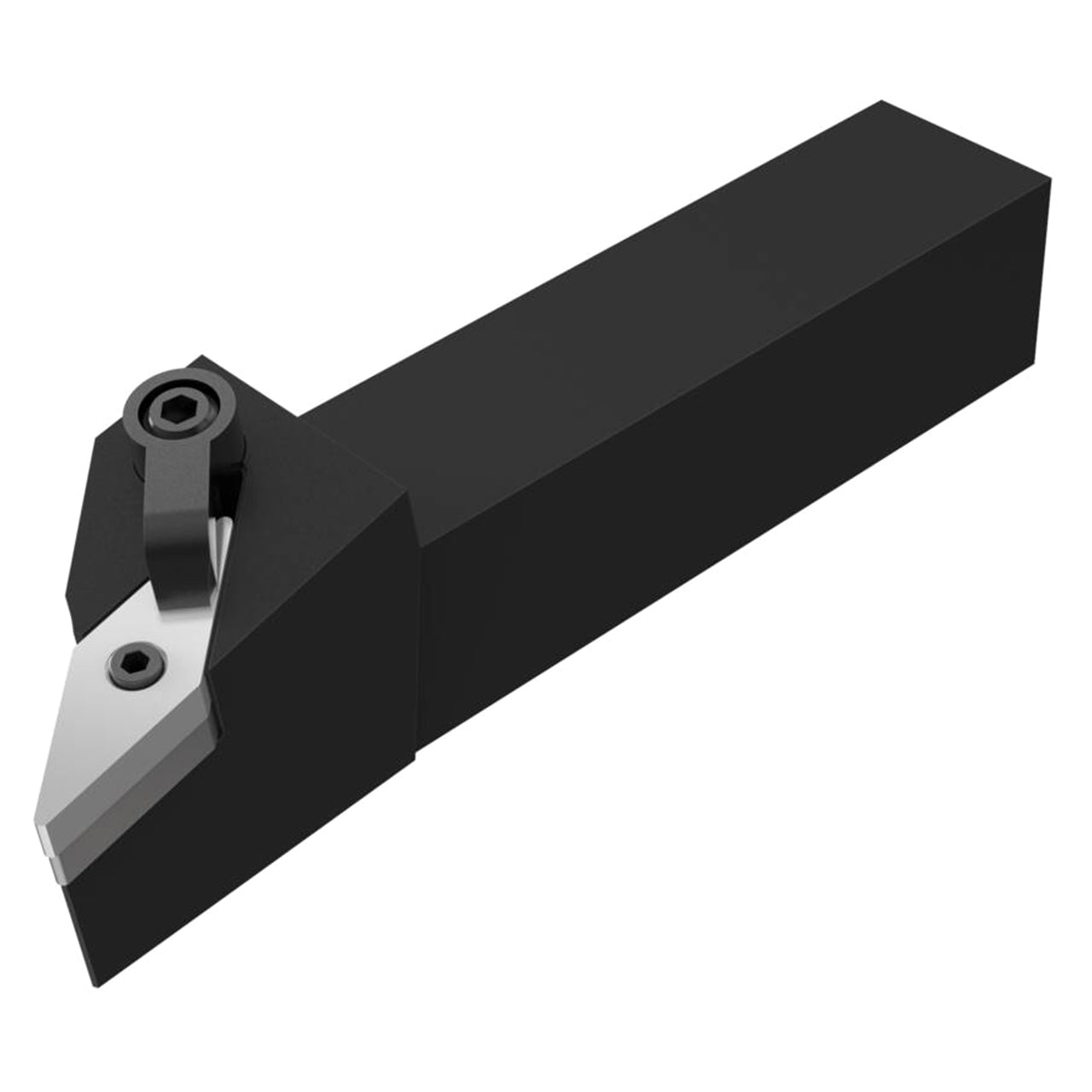

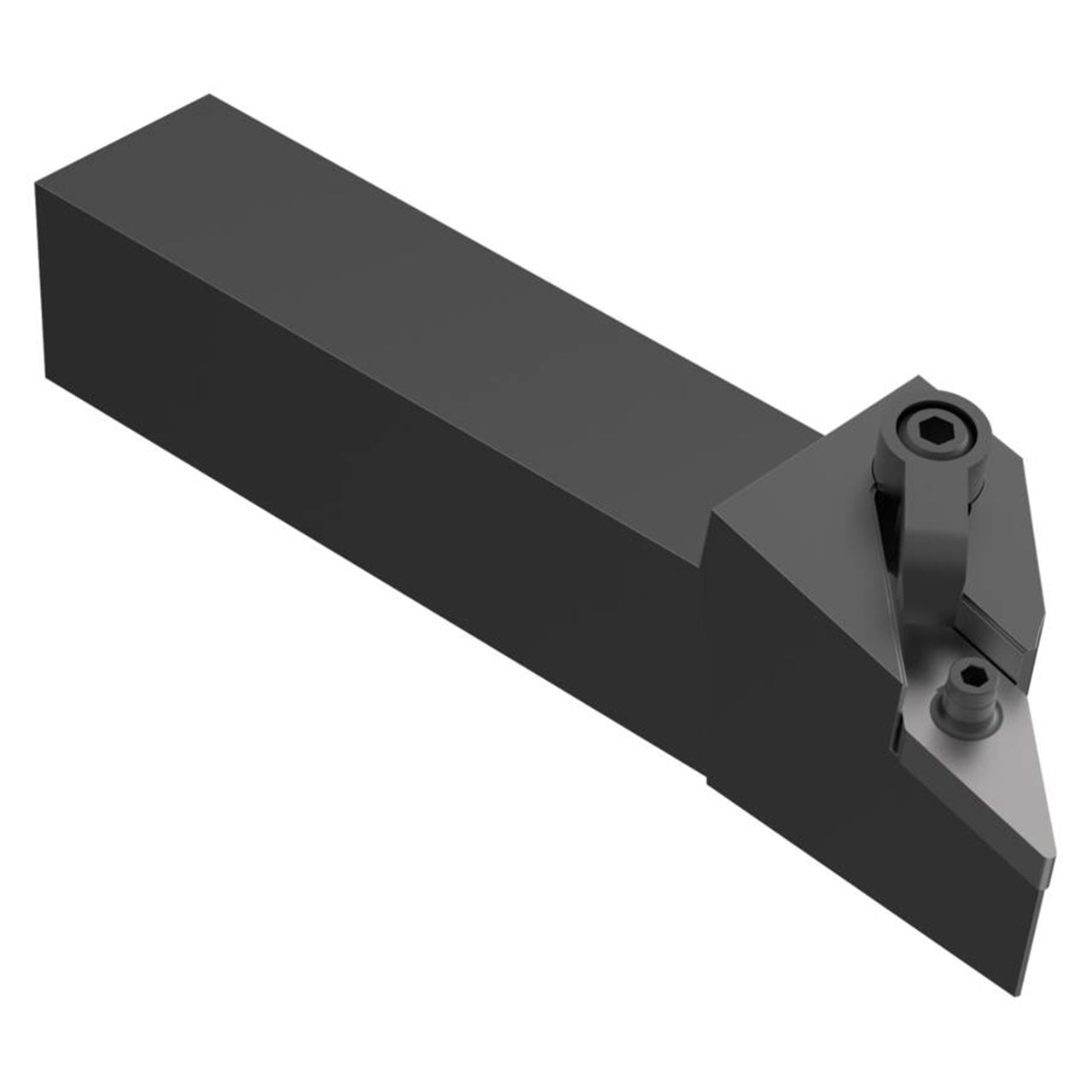

| Product Type | Indexable Turning Toolholder |
