Product Specifications
| Manufacturer Part Number | 00012757 |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 9.843" |
| Minimum Cutting Diameter Internal 3 (mm) | 250.00mm |
| Functional Length (Decimal Inch) | 6.000" |
| Functional Length (mm) | 152.40mm |
| Head Length (Decimal Inch) | 1.535" |
| Head Length (mm) | 39.00mm |
| Shank Length (Decimal Inch) | 4.465" |
| Shank Length (mm) | 113.40mm |
| Shank Width (Decimal Inch) | 1.250" |
| Shank Width (mm) | 31.75mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.155" |
| Maximum Radial Cutting Depth (mm) | 3.94mm |
| Maximum Cutting Depth (Decimal Inch) | 0.201" |
| Maximum Cutting Depth (mm) | 5.11mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.250" |
| Height of Tool Holder Shank (mm) | 31.75mm |
| Functional Height (Decimal Inch) | 1.250" |
| Functional Height (mm) | 31.75mm |
| Functional Width (Decimal Inch) | 1.318" |
| Functional Width (mm) | 33.47mm |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | -6 Degree |
| Cutting Direction | Left Hand |
| Insert Clamping System | M |
| Tool Cutting Edge Angle (Degree) | 75 Degree |
| Tool Cutting Edge Angle Code | R |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 105 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 75 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Maximum Ramping Angle (Degree) | 45 Degree |
| Insert Shape Code | S |
| Shank Type | Square shank |

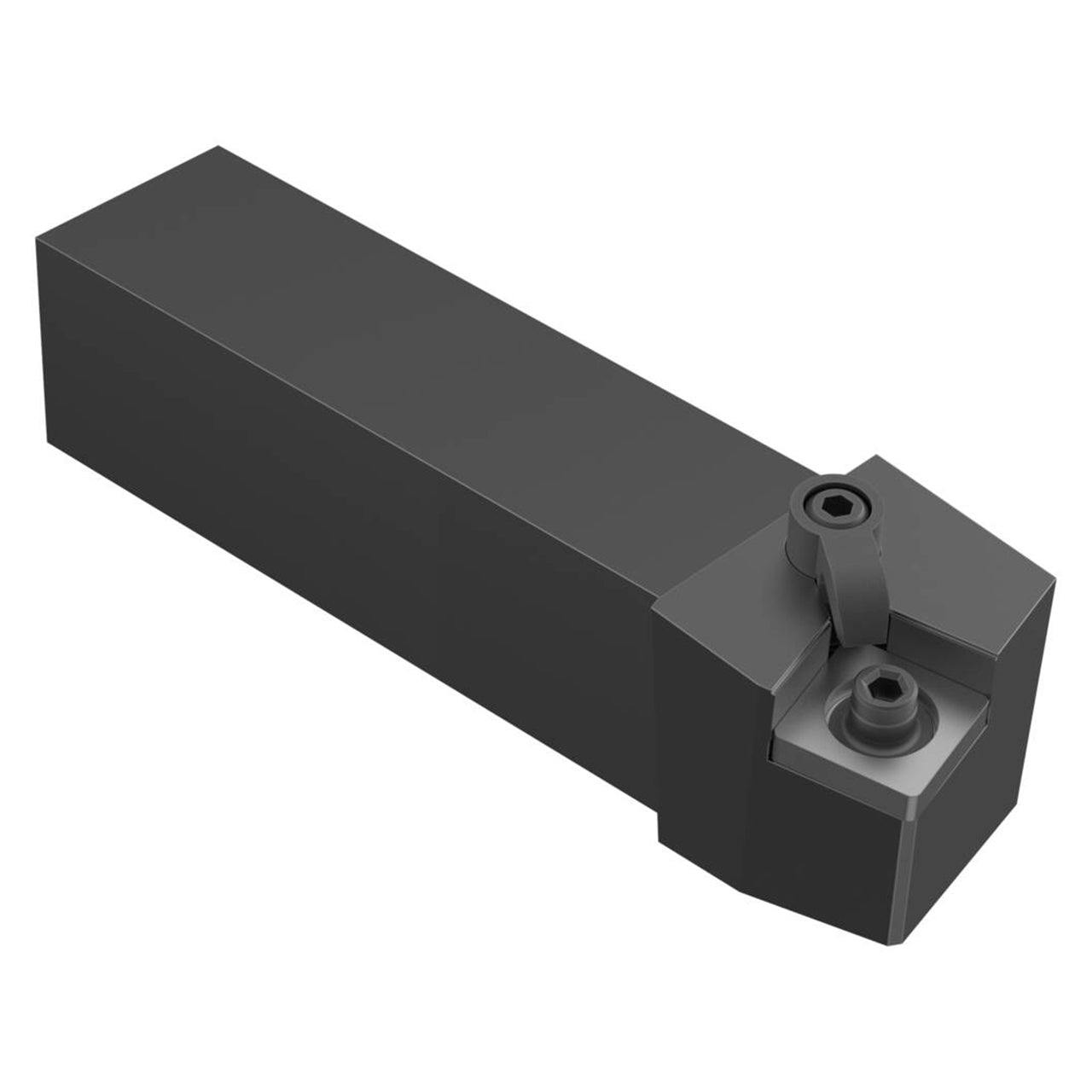

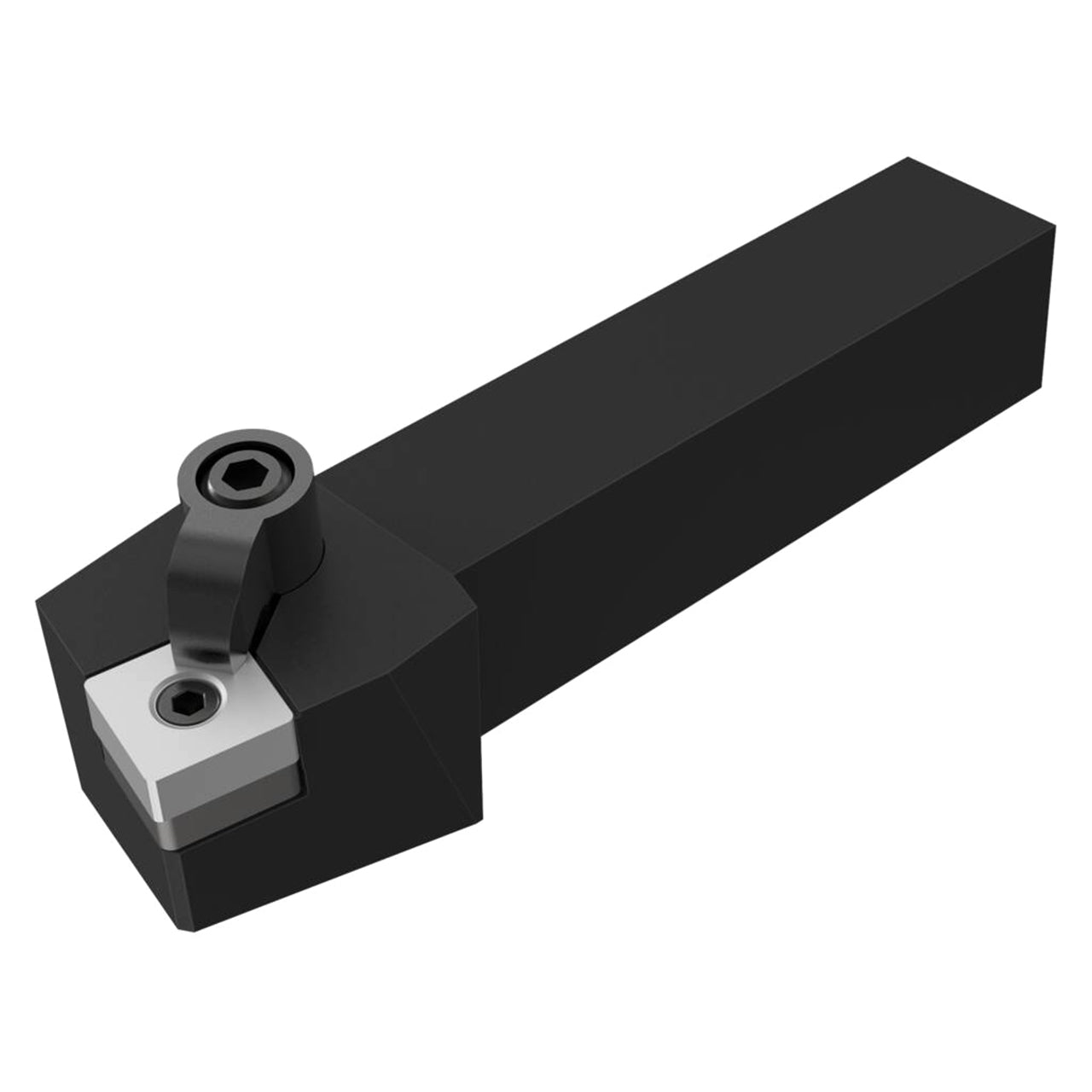

| Product Type | Indexable Turning Toolholder |
