Product Specifications
| Manufacturer Part Number | 00012669 |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 12.008" |
| Minimum Cutting Diameter Internal 3 (mm) | 305.00mm |
| Functional Length (Decimal Inch) | 6.000" |
| Functional Length (mm) | 152.40mm |
| Head Length (Decimal Inch) | 1.575" |
| Head Length (mm) | 40.00mm |
| Shank Length (Decimal Inch) | 4.425" |
| Shank Length (mm) | 112.40mm |
| Shank Width (Decimal Inch) | 1.000" |
| Shank Width (mm) | 25.40mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.086" |
| Maximum Radial Cutting Depth (mm) | 2.19mm |
| Maximum Cutting Depth (Decimal Inch) | 0.075" |
| Maximum Cutting Depth (mm) | 1.90mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.000" |
| Height of Tool Holder Shank (mm) | 25.40mm |
| Functional Height (Decimal Inch) | 1.000" |
| Functional Height (mm) | 25.40mm |
| Functional Width (Decimal Inch) | 1.250" |
| Functional Width (mm) | 31.75mm |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | -5.46 Degree |
| Cutting Direction | Left Hand |
| Insert Clamping System | M |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle Code | L |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 94.39 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Maximum Ramping Angle (Degree) | 5 Degree |
| Insert Shape Code | C |
| Shank Type | Square shank |

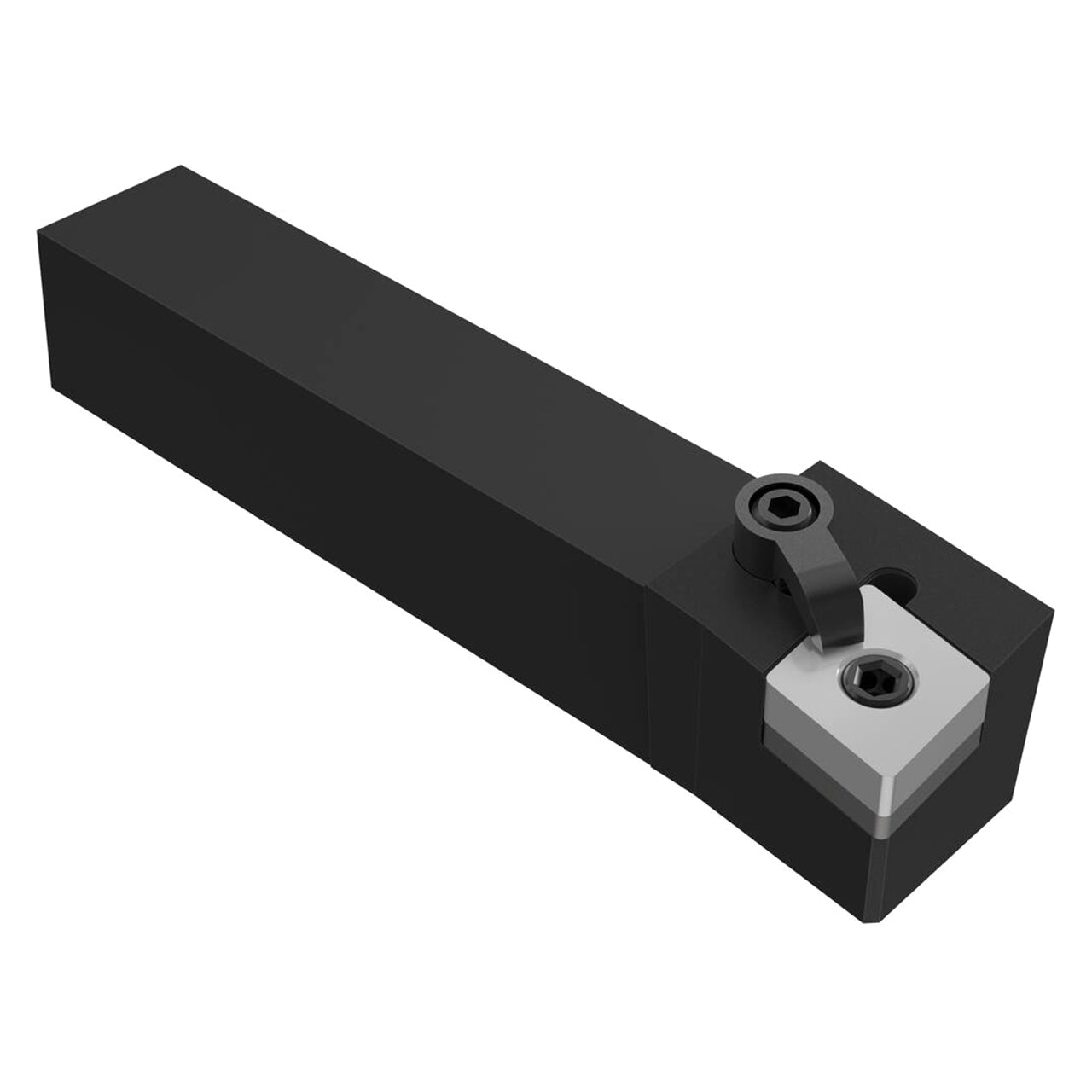

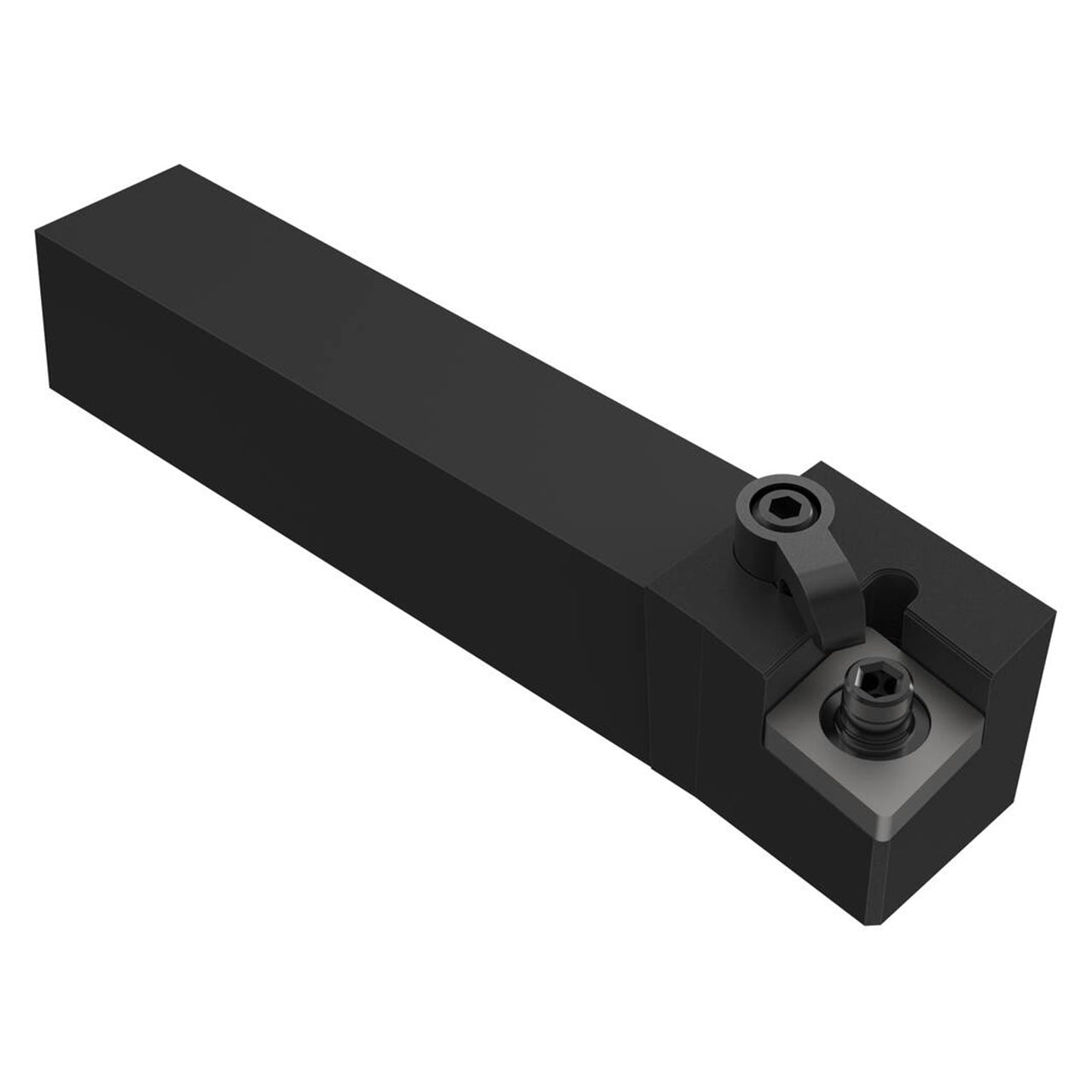

| Product Type | Indexable Turning Toolholder |
