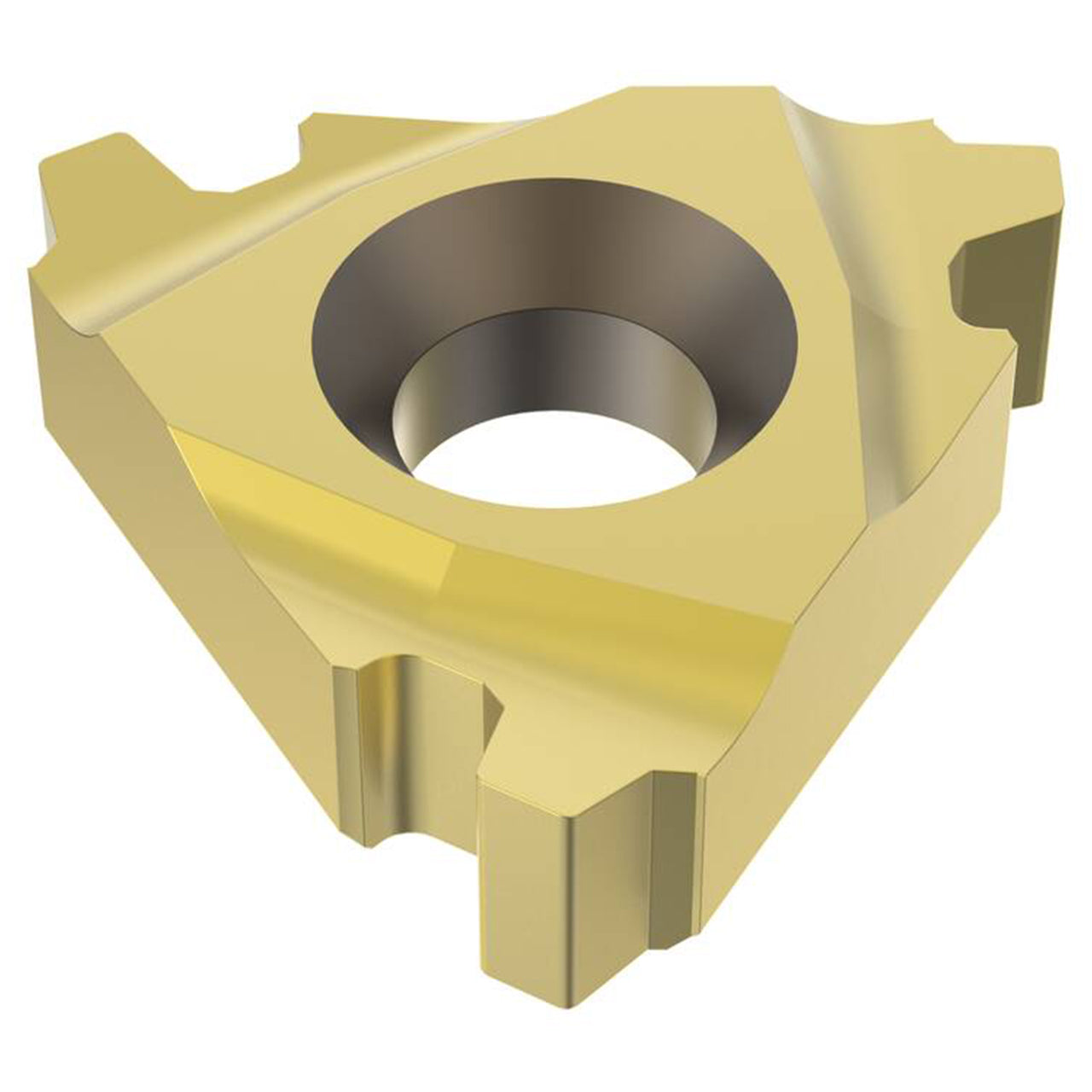

Product Specifications
| Manufacturer Part Number | 00011307 |
| Inscribed Circle Diameter (Decimal Inch) | 0.375" |
| Inscribed Circle Diameter (mm) | 9.53mm |
| Functional Width (Decimal Inch) | 1.063" |
| Functional Width (mm) | 27.00mm |
| Insert Thickness (Decimal Inch) | 0.137" |
| Insert Thickness (mm) | 3.47mm |
| Thread Form Type | Stub-ACME - External Threading |
| Cutting Edge Count | 3 |
| Insert Hand | Right Hand |
| Tooth Count | 10 |
| Profile Included Angle (Degree) | 29 Degree |
| Material | Carbide |
| Product Type | Laydown Threading Insert |
