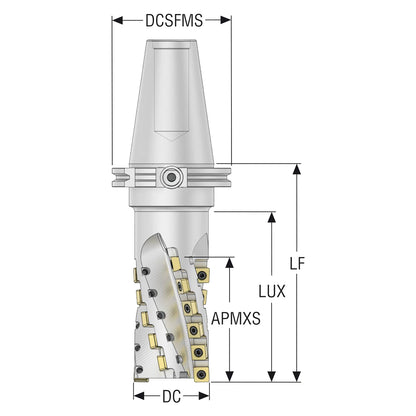

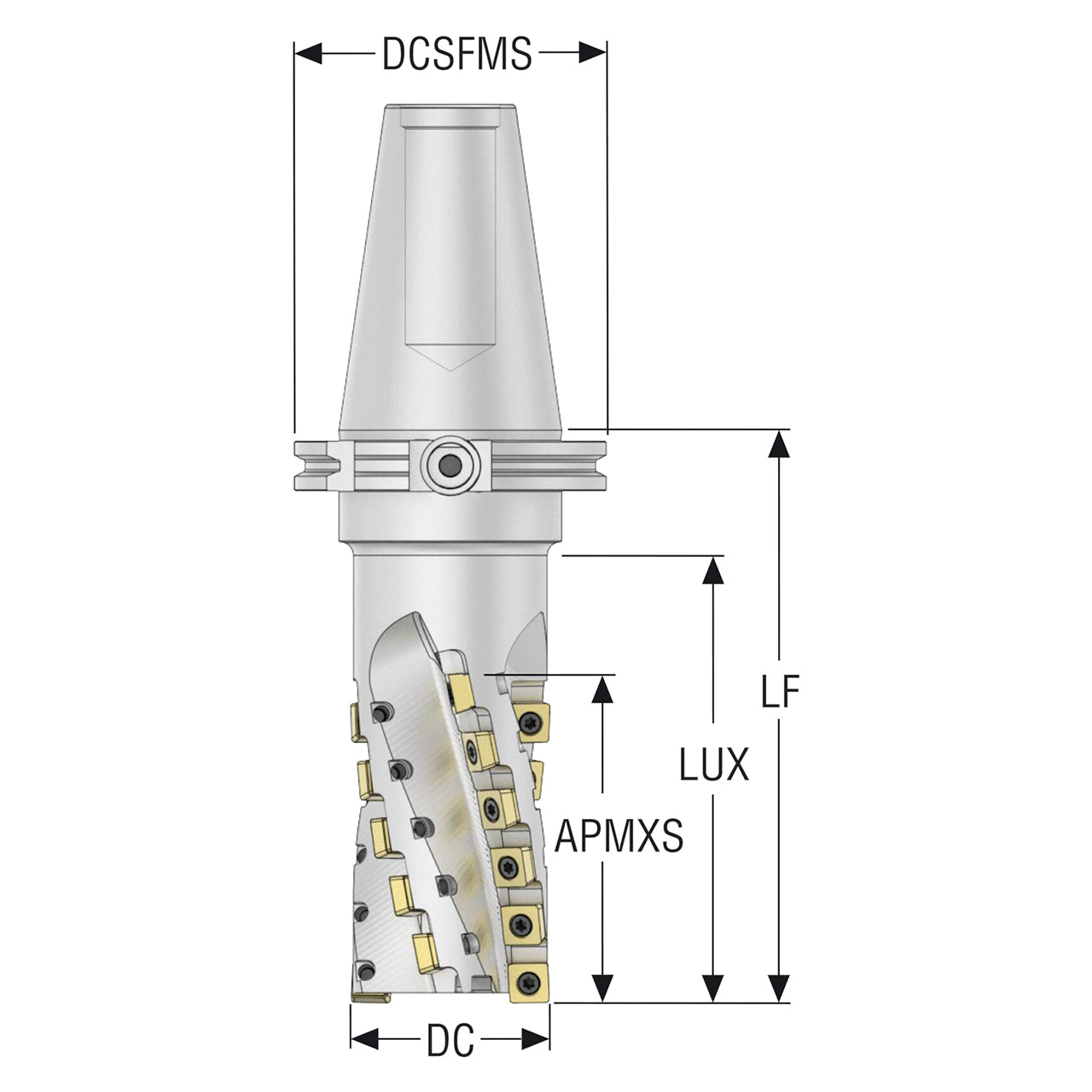

Product Specifications
| Manufacturer Part Number | 00008459 |
| Cutting Diameter (mm) | 50.00mm |
| Contact Surface Diameter Machine Side (mm) | 100.00mm |
| Functional Length (mm) | 145.00mm |
| Overall Length (mm) | 247.00mm |
| Number of Flute | 3 |
| Maximum Depth of Cut (mm) | 73.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -7 Degree |
| Rake Orthogonal Angle (Degree) | -7 Degree |
| Flute Helix Hand | Left Hand |
| Maximum Rotational Speed (rpm) | 8300 rpm |
| Cutting Pitch Density | Close |
| Pocket Seat Code of The Cutter | AC.T1506 / SC.T1206 |
| Cutting Item Material Type | 819B (35NCD16) 47HRc |
| Shank Type | BT and BT Taper-face |
| Insert Shape Code | A / S |
| Product Type | Indexable Square-Shoulder End Mill |
