Product Specifications
| Manufacturer Part Number | 00007796 |
| Fixing Hole Diameter (Decimal Inch) | 0.114" |
| Fixing Hole Diameter (mm) | 2.90mm |

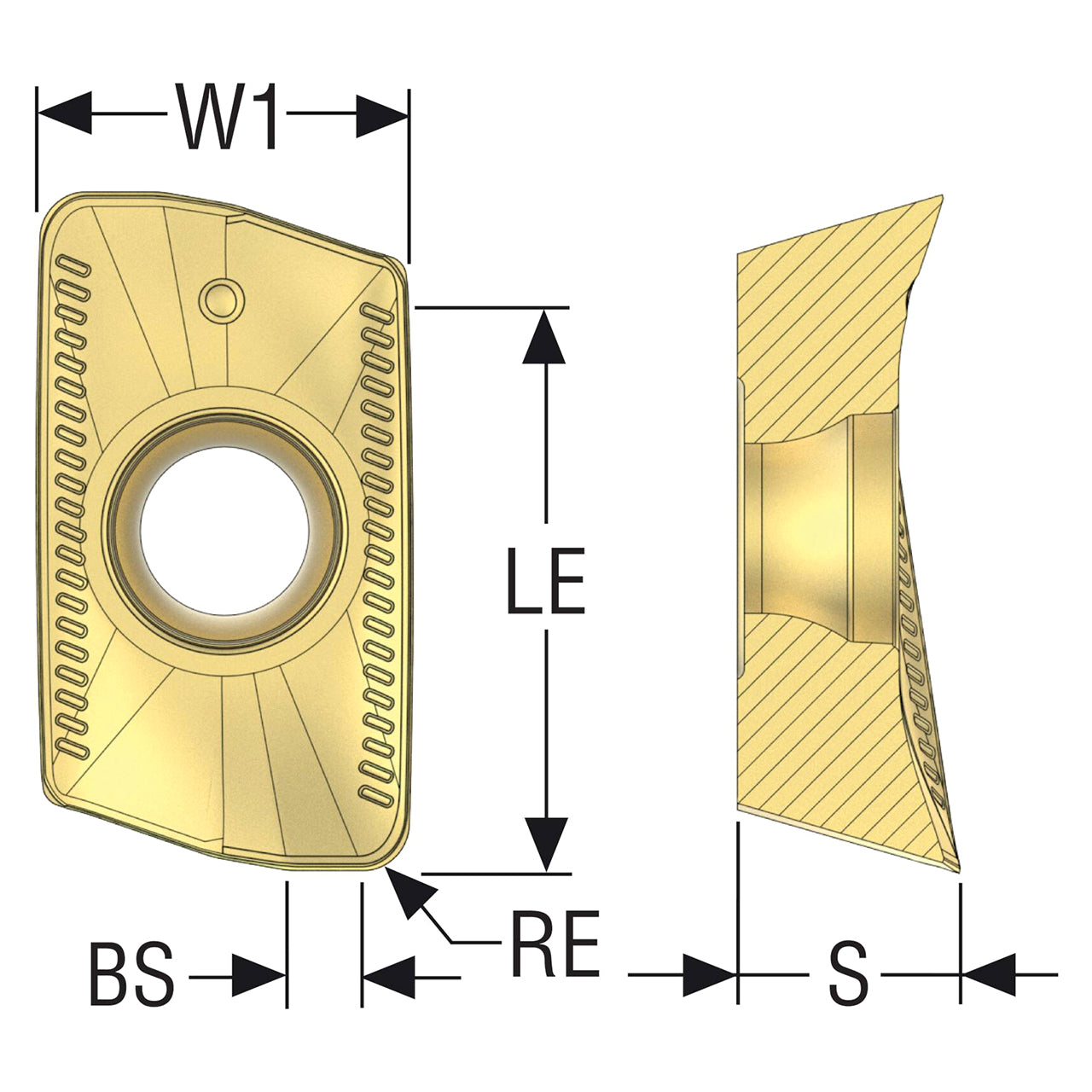

| Cutting Edge Effective Length (Decimal Inch) | 0.354" |
| Cutting Edge Effective Length (mm) | 9.00mm |
| Wiper Edge Length (Decimal Inch) | 0.032" |
| Wiper Edge Length (mm) | 0.80mm |
| Corner Radius (Decimal Inch) | 0.047" |
| Corner Radius (mm) | 1.20mm |
| Insert Thickness (Decimal Inch) | 0.139" |
| Insert Thickness (mm) | 3.52mm |
| Cutting Edge Count | 2 |
| Clearance Angle Major (Degree) | 15 Degree |
| Insert Rake Angle (Degree) | 22.5 Degree |
| Insert Hand | Right Hand |
| Cutting Geometry Type | ME |
| Cutting Geometry Type Technical | ME06 |
| Pocket Seat Code of The Cutter | XO.X0903 |
| Insert Size And Shape | XOMX0903 |
| Material | Carbide |
| Product Type | Milling Insert |
