Product Specifications

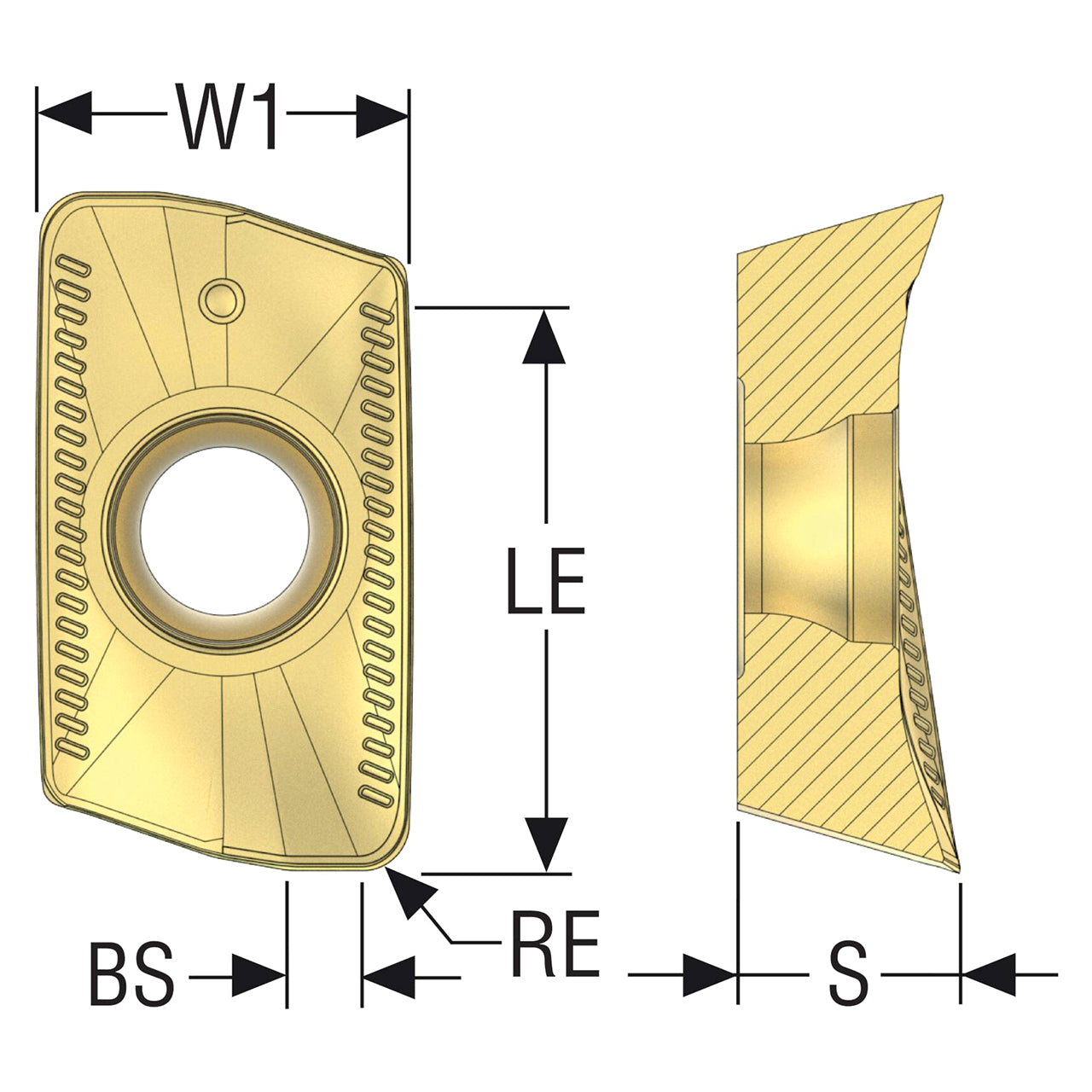

| Manufacturer Part Number | 00005964 |
| Fixing Hole Diameter (Decimal Inch) | 0.154" |
| Fixing Hole Diameter (mm) | 3.90mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.457" |
| Cutting Edge Effective Length (mm) | 11.60mm |
| Wiper Edge Length (Decimal Inch) | 0.036" |
| Wiper Edge Length (mm) | 0.92mm |
| Corner Radius (Decimal Inch) | 0.095" |
| Corner Radius (mm) | 2.40mm |
| Insert Thickness (Decimal Inch) | 0.200" |
| Insert Thickness (mm) | 5.07mm |
| Cutting Edge Count | 2 |
| Clearance Angle Major (Degree) | 15 Degree |
| Insert Rake Angle (Degree) | 20.1 Degree |
| Insert Hand | Right Hand |
| Cutting Geometry Type | ME |
| Cutting Geometry Type Technical | ME08 |
| Pocket Seat Code of The Cutter | XO.X1204 |
| Insert Size And Shape | XOMX1204 |
| Material | Carbide |
| Product Type | Milling Insert |
