Product Specifications
| Manufacturer Part Number | 00005768 |
| Cutting Diameter (mm) | 32.00mm |
| Contact Surface Diameter Machine Side (mm) | 30.00mm |
| Maximum Cutting Diameter (mm) | 40.00mm |
| Thread Diameter Size | M16 |
| Functional Length (mm) | 40.00mm |
| Maximum Depth of Cut (mm) | 3.50mm |
| Connection Mounting Torque (Nm) | 80.0 Nm |
| Cutting Pitch Density | Normal |
| Rake Radial Angle (Degree) | 5 Degree |
| Rake Radial Angle (Degree) | 5 Degree |
| Rake Orthogonal Angle (Degree) | 15 Degree |
| Axial Rake Angle (Degree) | 15 Degree |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 43 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 43 Degree |
| Maximum Rotational Speed (rpm) | 14800 rpm |
| Insert Shape Code | O |
| Shank Type | Combimaster |

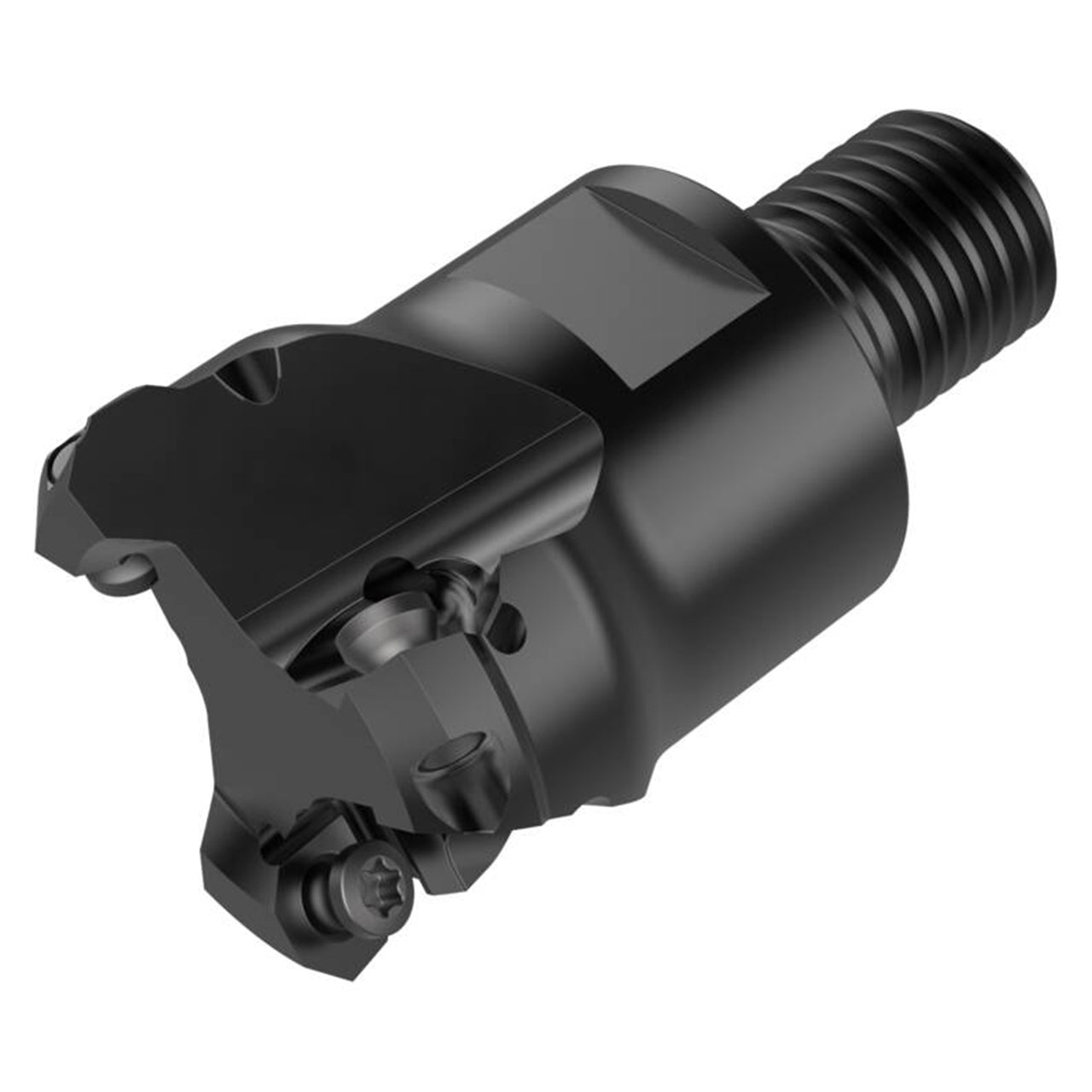

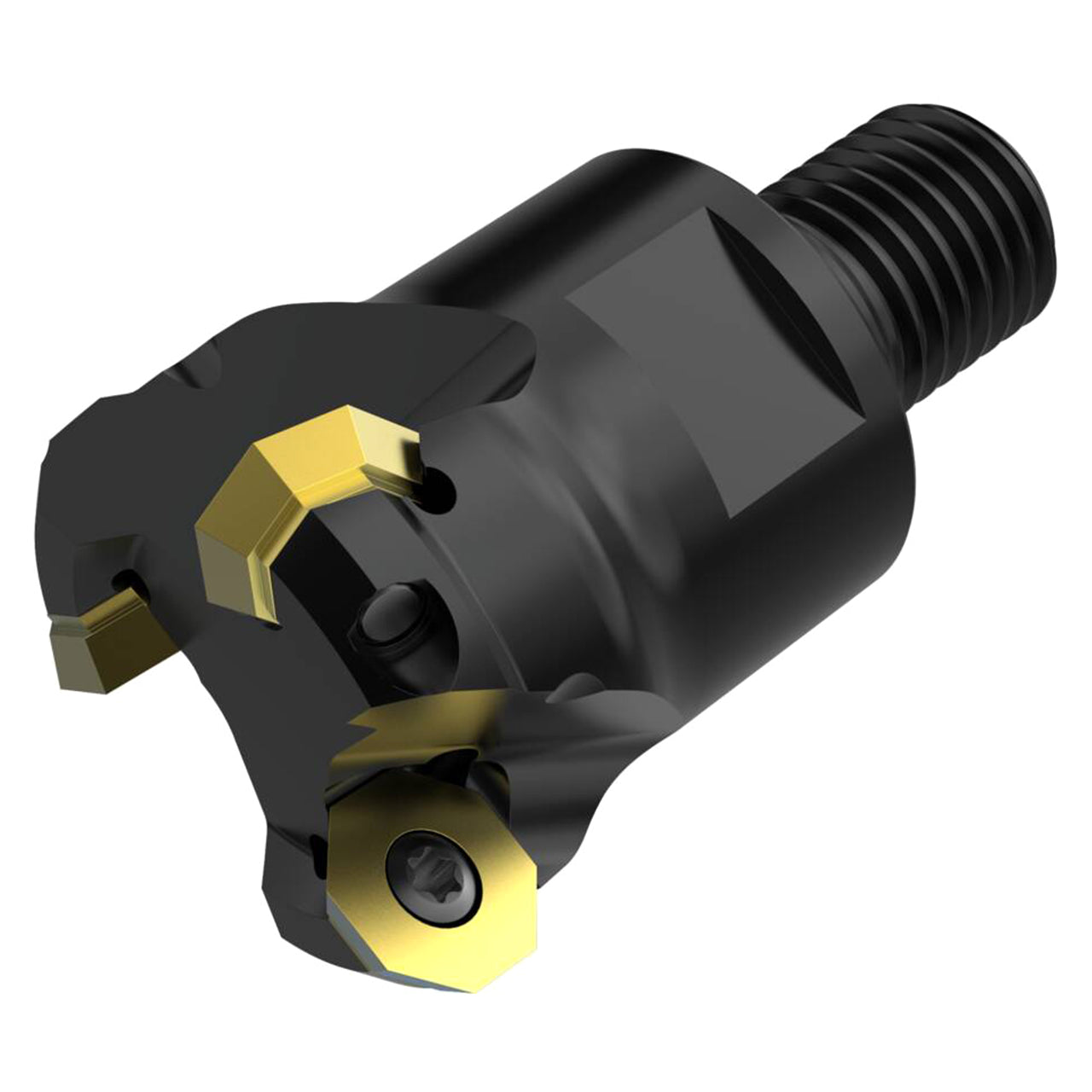

| Product Type | Indexable Chamfer & Angle Face Mill |
