Product Specifications
| Manufacturer Part Number | 00003297 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.800" |
| Minimum Cutting Diameter Internal (mm) | 45.72mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.500" |
| Connection Diameter Machine Side (mm) | 38.10mm |
| Shank Diameter (Decimal Inch) | 1.500" |
| Shank Diameter (mm) | 38.10mm |
| Functional Length (Decimal Inch) | 12.000" |
| Functional Length (mm) | 304.80mm |
| Head Length (Decimal Inch) | 2.362" |
| Head Length (mm) | 60.00mm |
| Shank Width (Decimal Inch) | 1.429" |
| Shank Width (mm) | 36.30mm |
| Maximum Cutting Depth (Decimal Inch) | 0.440" |
| Maximum Cutting Depth (mm) | 11.18mm |
| Cutting Width (Decimal Inch) | 0.158" |
| Cutting Width (mm) | 4.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.382" |
| Height of Tool Holder Shank (mm) | 35.10mm |
| Functional Width (Decimal Inch) | 1.126" |
| Functional Width (mm) | 28.60mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Left Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Shank Type | Cylindrical |

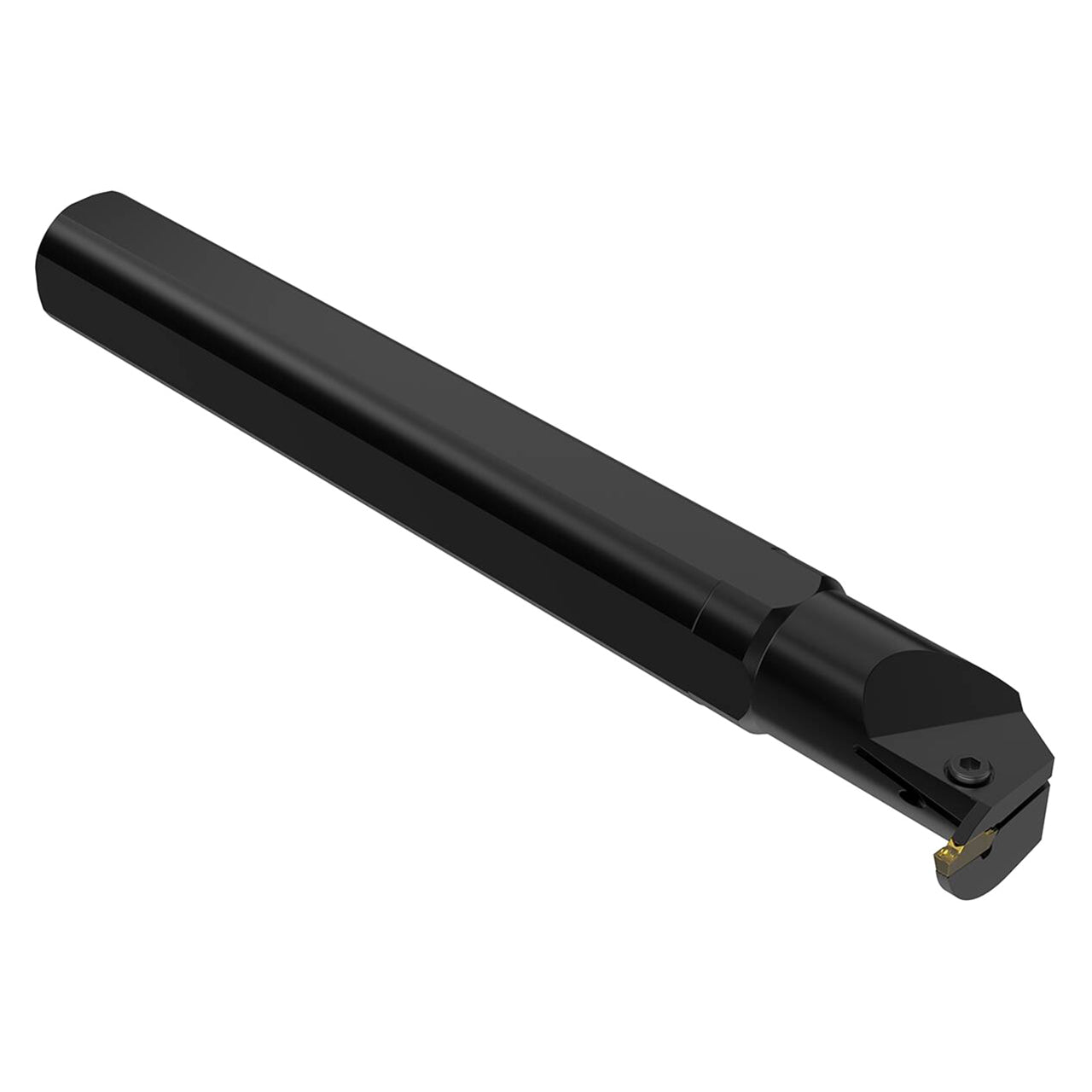

| Product Type | Indexable Grooving Toolholder |
