Product Specifications
| Manufacturer Part Number | 17014865 |
| Cutting Diameter (Decimal Inch) | 1.000" |
| Cutting Diameter (mm) | 25.40mm |
| Cutting Diameter 1 (Decimal Inch) | 1.000" |
| Cutting Diameter 1 (mm) | 25.40mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.000" |
| Connection Diameter Machine Side (mm) | 25.40mm |
| Upper Cutting Diameter Tolerance (Decimal Inch) | 0.003 |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.937" |
| Maximum Helical Interpolation Hole Diameter (mm) | 49.20mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 1.300" |
| Minimum Helical Interpolation Hole Diameter (mm) | 33.02mm |
| Cutting Edge Effective Length (Decimal Inch) | 4.000" |
| Cutting Edge Effective Length (mm) | 101.60mm |
| Minimum Clamping Length (Decimal Inch) | 2.281" |
| Minimum Clamping Length (mm) | 57.94mm |
| Overall Length (Decimal Inch) | 6.500" |
| Overall Length (mm) | 165.10mm |
| Maximum Depth of Cut (mm) | 101.60mm |
| Maximum Depth of Cut (Decimal Inch) | 4.000" |
| Corner Chamfer Width (Decimal Inch) | 0.030" |
| Corner Chamfer Width (mm) | 0.76mm |
| Corner Chamfer Width Lower Tolerance (Decimal Inch) | 0.005 |
| Corner Chamfer Width Lower Tolerance (mm) | 0.127 |
| Corner Chamfer Width Upper Tolerance (Decimal Inch) | 0.005 |
| Corner Chamfer Width Upper Tolerance (mm) | 0.127 |
| Theoretical Cutting Edge Length (Decimal Inch) | 4.000" |
| Theoretical Cutting Edge Length (mm) | 101.60mm |
| Radial Runout (mm) | 0.05mm |
| Cutting Edge Count | 5 |
| Cutting Geometry Type | REM445 |
| Cutting Geometry Type Technical | FINEROUGHER4F |
| Face Cutting Edge Count | 5 |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | 10 Degree |
| Rake Radial Angle (Degree) | 10 Degree |
| Axial Rake Angle (Degree) | 30 Degree |
| Material | HSCO |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 92.5 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Corner Chamfer Angle (Degree) | 45 Degree |
| Length Variant Cataloque | 5 |
| Number of Flute | 5 |
| Pheripheral Cutting Edge Count | 5 |
| Maximum Ramping Angle (Degree) | 2 Degree |
| Axial Runout (mm) | 0.05mm |
| Shank Type | Weldon |
| Coating | TiAlN |

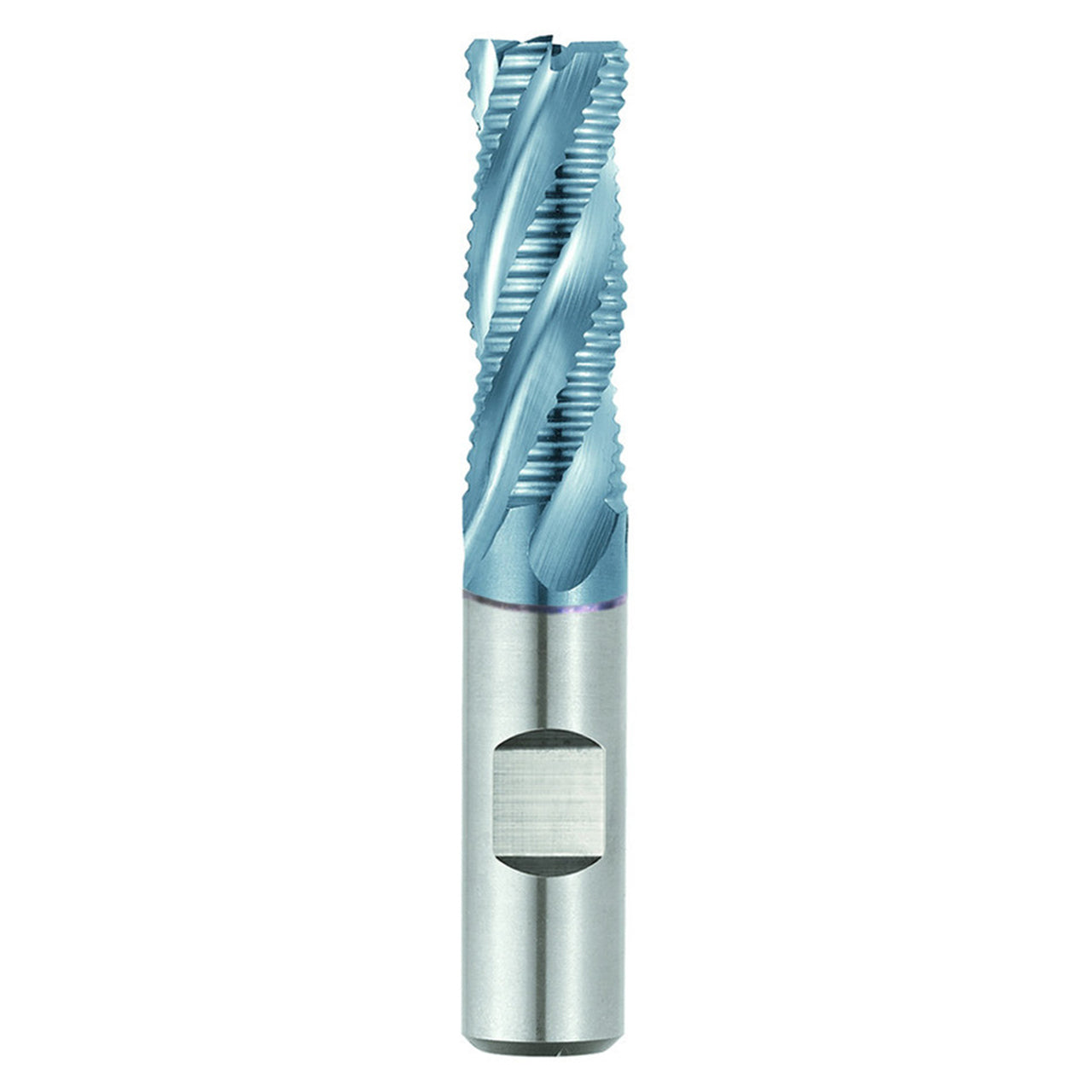

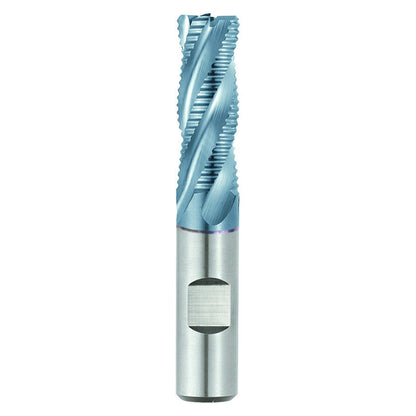

| Product Type | Roughing End Mill |
