Product Specifications
| Manufacturer Part Number | 17011754 |
| Cutting Diameter (Decimal Inch) | 0.625" |
| Cutting Diameter (mm) | 15.88mm |
| Cutting Diameter 1 (Decimal Inch) | 0.625" |
| Cutting Diameter 1 (mm) | 15.88mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.625" |
| Connection Diameter Machine Side (mm) | 15.88mm |
| Upper Cutting Diameter Tolerance (Decimal Inch) | 0.001 |
| Shank Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (mm) | 15.88mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.219" |
| Maximum Helical Interpolation Hole Diameter (mm) | 30.96mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.813" |
| Minimum Helical Interpolation Hole Diameter (mm) | 20.64mm |
| Cutting Edge Effective Length (Decimal Inch) | 4.000" |
| Cutting Edge Effective Length (mm) | 101.60mm |
| Minimum Clamping Length (Decimal Inch) | 1.906" |
| Minimum Clamping Length (mm) | 48.42mm |
| Overall Length (Decimal Inch) | 6.125" |
| Overall Length (mm) | 155.58mm |
| Depth of Cut (Decimal Inch) | 4.000" |
| Depth of Cut (mm) | 101.60mm |
| Maximum Depth of Cut (mm) | 101.60mm |
| Maximum Depth of Cut (Decimal Inch) | 4.000" |
| Theoretical Cutting Edge Length (Decimal Inch) | 4.000" |
| Theoretical Cutting Edge Length (mm) | 101.60mm |
| Radial Runout (mm) | 0.03mm |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 4 |
| Cutting Geometry Type | SP408_4F |
| Cutting Geometry Type Technical | SP408_4F |
| Face Cutting Edge Count | 4 |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | 10 Degree |
| Rake Radial Angle (Degree) | 10 Degree |
| Axial Rake Angle (Degree) | 30 Degree |
| Material | HSCO |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 92.5 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Length Variant Cataloque | 6 |
| Number of Flute | 4 |
| Pheripheral Cutting Edge Count | 4 |
| Maximum Ramping Angle (Degree) | 2 Degree |
| Axial Runout (mm) | 0.03mm |
| Shank Type | Weldon |
| Coating | Uncoated |

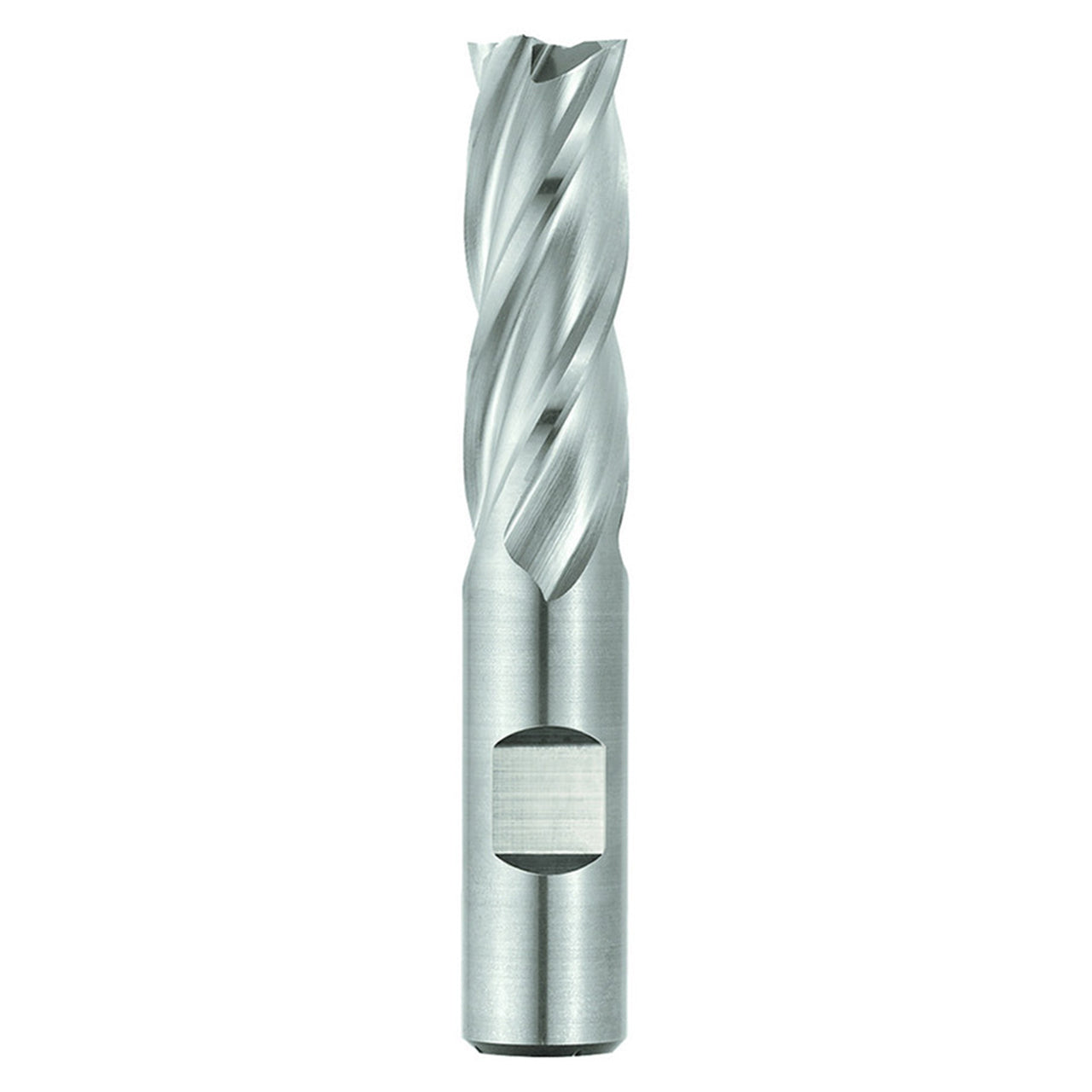

| Product Type | Square End Mill |
