Product Specifications
| Manufacturer Part Number | 17007021 |
| Cutting Diameter (Decimal Inch) | 0.438" |
| Cutting Diameter (mm) | 11.11mm |
| Cutting Diameter 1 (Decimal Inch) | 0.438" |
| Cutting Diameter 1 (mm) | 11.11mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.438" |
| Connection Diameter Machine Side (mm) | 11.11mm |
| Lower Cutting Diameter Tolerance (Decimal Inch) | 0.002 |
| Lower Cutting Diameter Tolerance (mm) | 0.0508 |
| Shank Diameter (Decimal Inch) | 0.438" |
| Shank Diameter (mm) | 11.11mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.770" |
| Maximum Helical Interpolation Hole Diameter (mm) | 19.56mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.569" |
| Minimum Helical Interpolation Hole Diameter (mm) | 14.45mm |
| Corner Radius (Decimal Inch) | 0.045" |
| Corner Radius (mm) | 1.14mm |
| Cutting Edge Effective Length (Decimal Inch) | 1.000" |
| Cutting Edge Effective Length (mm) | 25.40mm |
| Minimum Clamping Length (Decimal Inch) | 1.772" |
| Minimum Clamping Length (mm) | 45.00mm |
| Overall Length (Decimal Inch) | 2.750" |
| Overall Length (mm) | 69.85mm |
| Maximum Depth of Cut (mm) | 25.40mm |
| Maximum Depth of Cut (Decimal Inch) | 1.000" |
| Theoretical Cutting Edge Length (Decimal Inch) | 1.000" |
| Theoretical Cutting Edge Length (mm) | 25.40mm |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 5 |
| Cutting Geometry Type | S545R |
| Cutting Geometry Type Technical | S545 |
| Face Cutting Edge Count | 5 |
| Flute Helix Angle (Degree) | 45 Degree |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | 10 Degree |
| Rake Radial Angle (Degree) | 10 Degree |
| Axial Rake Angle (Degree) | 5 Degree |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 92.5 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Length Variant Cataloque | 2 |
| Number of Flute | 5 |
| Pheripheral Cutting Edge Count | 5 |
| Maximum Ramping Angle (Degree) | 5 Degree |
| Shank Type | Cylindrical |
| Coating | AlTiN |

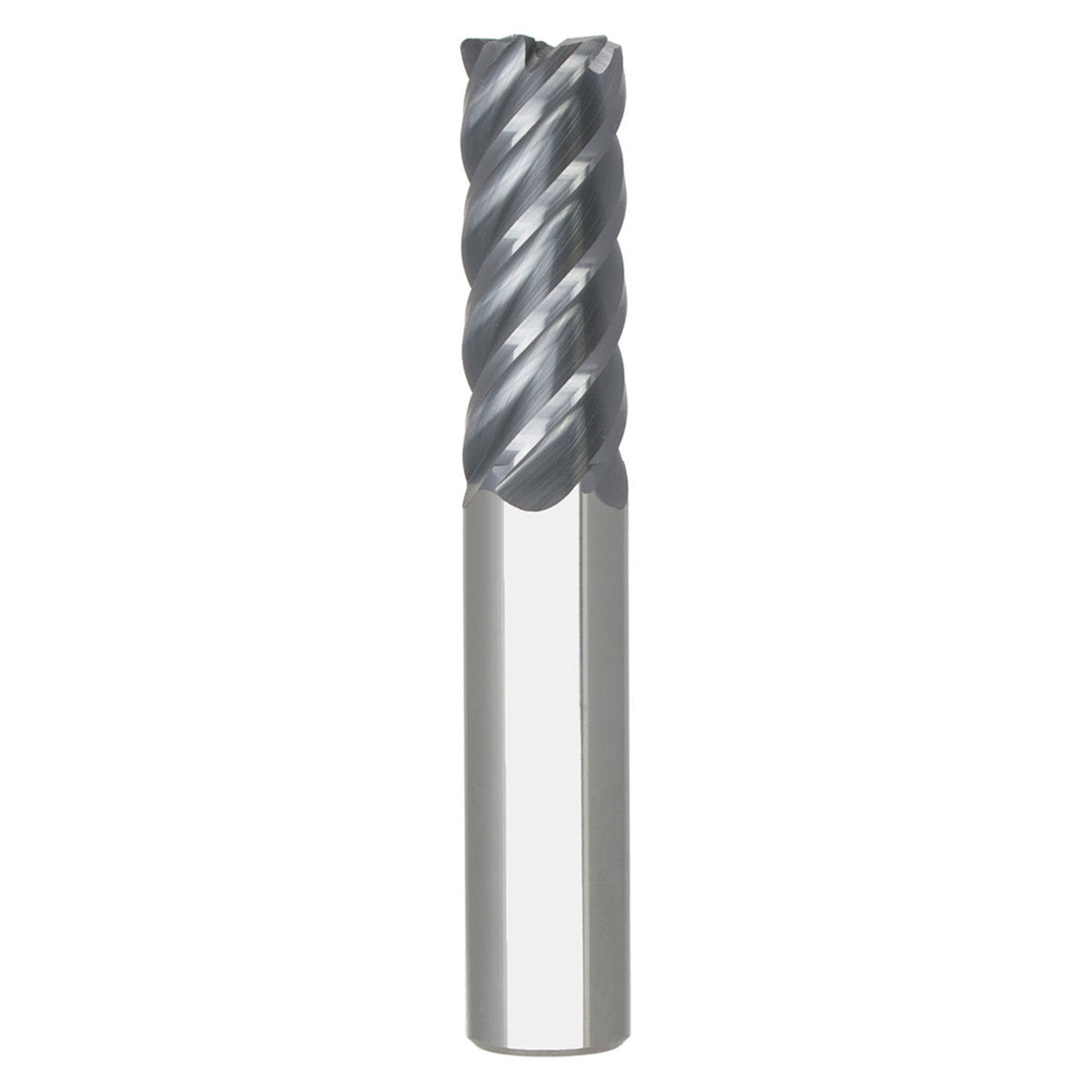

| Product Type | Corner Radius End Mill |
