Product Specifications
| Manufacturer Part Number | 17004955 |
| Cutting Diameter (mm) | 3.00mm |
| Cutting Diameter 1 (mm) | 3.00mm |
| Connection Diameter Machine Side (mm) | 3.00mm |
| Lower Cutting Diameter Tolerance (mm) | 0.0508 |
| Shank Diameter (mm) | 3.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 5.85mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 3.90mm |
| Cutting Edge Effective Length (mm) | 15.00mm |
| Minimum Clamping Length (mm) | 28.00mm |
| Overall Length (mm) | 45.00mm |
| Depth of Cut (mm) | 15.00mm |
| Maximum Depth of Cut (mm) | 15.00mm |
| Theoretical Cutting Edge Length (mm) | 15.00mm |
| Radial Runout (mm) | 0.01mm |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 4 |
| Cutting Geometry Type | DIA430M |
| Cutting Geometry Type Technical | DIA430 |
| Face Cutting Edge Count | 4 |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | 10 Degree |
| Rake Radial Angle (Degree) | 10 Degree |
| Axial Rake Angle (Degree) | 30 Degree |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 92.5 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Length Variant Cataloque | 5 |
| Number of Flute | 4 |
| Pheripheral Cutting Edge Count | 4 |
| Maximum Ramping Angle (Degree) | 2 Degree |
| Axial Runout (mm) | 0.01mm |
| Shank Type | Cylindrical |
| Coating | Diamond CVD |

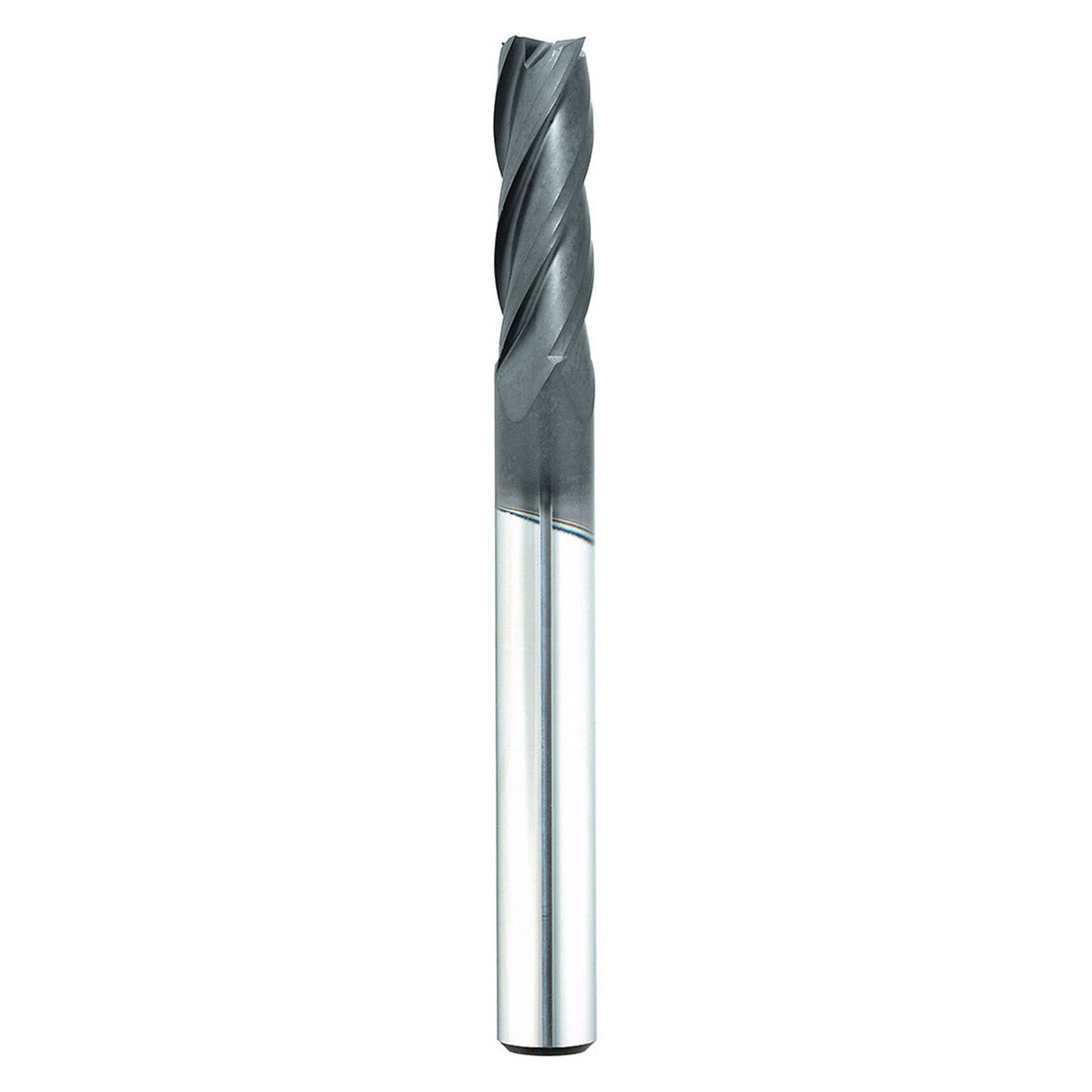

| Product Type | Square End Mill |
