Product Specifications
| Manufacturer Part Number | 17004804 |
| Cutting Diameter (mm) | 12.00mm |
| Cutting Diameter 1 (mm) | 12.00mm |
| Lower Cutting Diameter Tolerance (mm) | 0.0508 |
| Shank Diameter (mm) | 12.00mm |
| Neck Diameter (mm) | 11.79mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 21.60mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 15.60mm |
| Corner Radius (mm) | 6.00mm |
| Cutting Edge Effective Length (mm) | 12.00mm |
| Neck Length (mm) | 24.00mm |
| Neck Length 1 (mm) | 24.00mm |
| Minimum Clamping Length (mm) | 45.00mm |
| Overall Length (mm) | 100.00mm |
| Maximum Depth of Cut (mm) | 12.00mm |
| Theoretical Cutting Edge Length (mm) | 12.00mm |
| Profile Radius (mm) | 6.00mm |
| Radial Runout (mm) | 0.01mm |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 2 |
| Cutting Geometry Type | MB215M |
| Cutting Geometry Type Technical | MB215 |
| Face Cutting Edge Count | 2 |
| Flute Helix Angle (Degree) | 15 Degree |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | 5 Degree |
| Rake Radial Angle (Degree) | 5 Degree |
| Rake Orthogonal Angle (Degree) | 5 Degree |
| Axial Rake Angle (Degree) | 15 Degree |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Length Variant Cataloque | 1 |
| Number of Flute | 2 |
| Pheripheral Cutting Edge Count | 2 |
| Maximum Ramping Angle (Degree) | 0.5 Degree |
| Axial Runout (mm) | 0.01mm |
| Shank Type | Cylindrical |
| Coating | AlTiN |

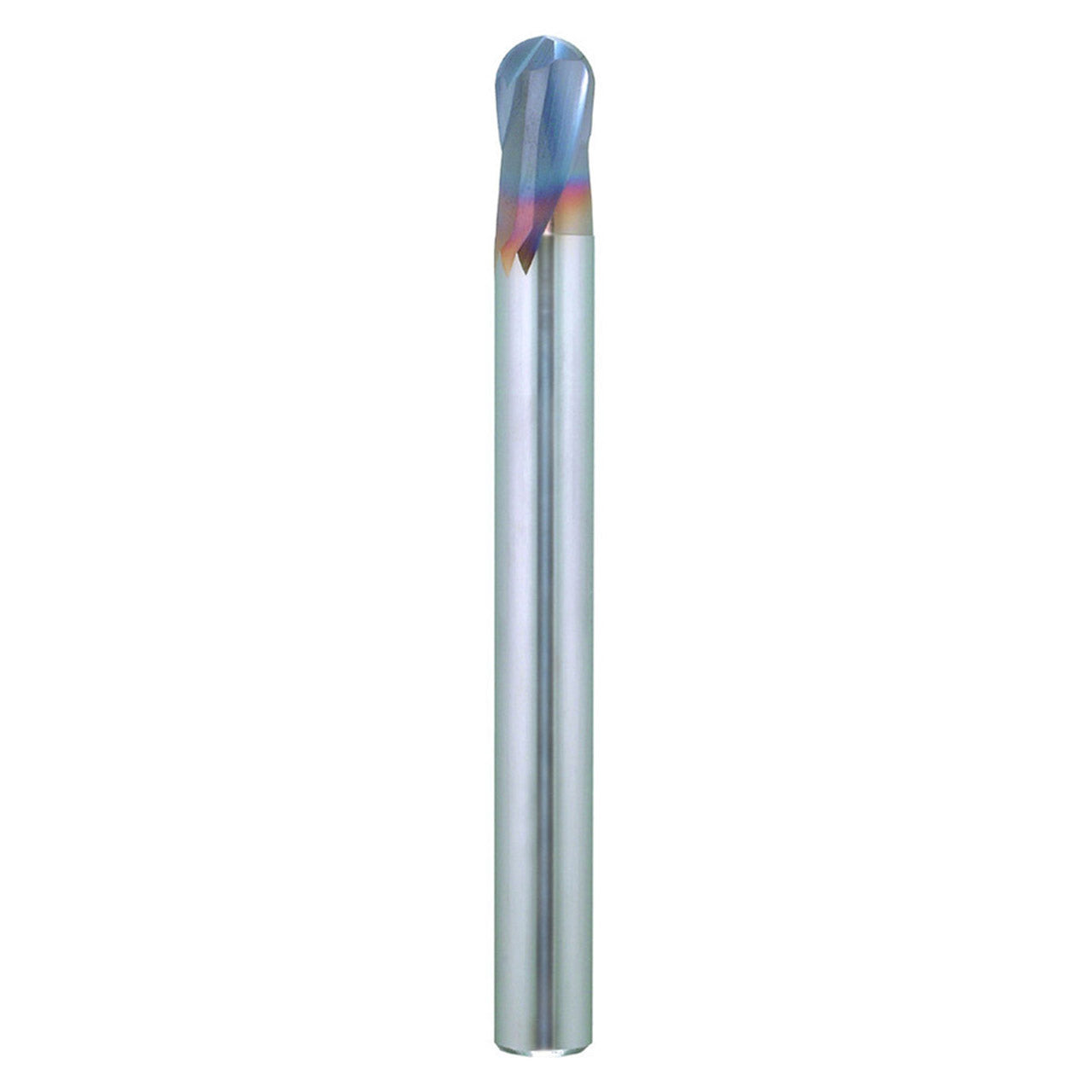

| Product Type | Ball End Mill |
