Product Specifications

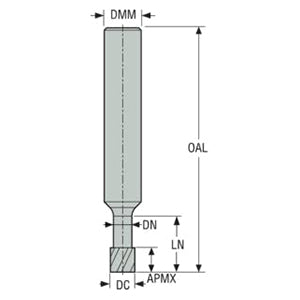

| Manufacturer Part Number | 17004561 |
| Cutting Diameter (Decimal Inch) | 0.620" |
| Cutting Diameter (mm) | 15.75mm |
| Minimum Cutting Diameter (Decimal Inch) | 0.828" |
| Minimum Cutting Diameter (mm) | 21.03mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.625" |
| Connection Diameter Machine Side (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (mm) | 15.88mm |
| Thread Diameter Size | M24 |
| Corner Radius (Decimal Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Protruding Length (Decimal Inch) | 1.906" |
| Protruding Length (mm) | 48.41mm |
| Shank Length (Decimal Inch) | 2.273" |
| Shank Length (mm) | 57.73mm |
| Overall Length (Decimal Inch) | 4.000" |
| Overall Length (mm) | 101.60mm |
| Maximum Depth of Cut (mm) | 34.93mm |
| Maximum Depth of Cut (Decimal Inch) | 1.375" |
| Minimum Thread Pitch (Decimal Inch) | 0.1181 |
| Minimum Thread Pitch (mm) | 3.0 |
| Maximum Thread Pitch (Decimal Inch) | 0.1181 |
| Maximum Thread Pitch (mm) | 3.0 |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 4 |
| Tooth Count | 12 |
| Profile Included Angle (Degree) | 60 Degree |
| Maximum Rotational Speed (rpm) | 10000 rpm |
| Shank Type | Cylindrical |

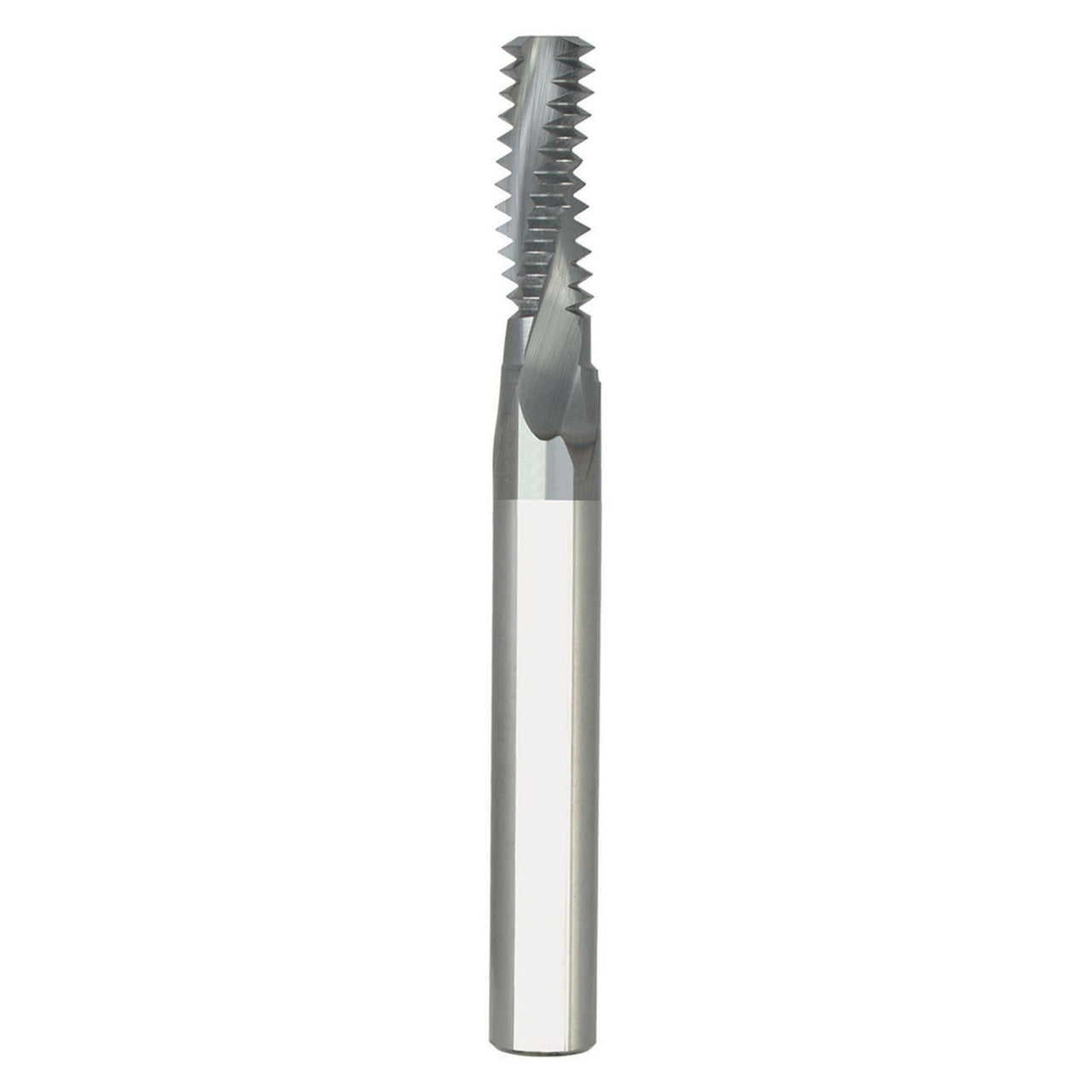

| Product Type | Helical Flute Thread Mill |
