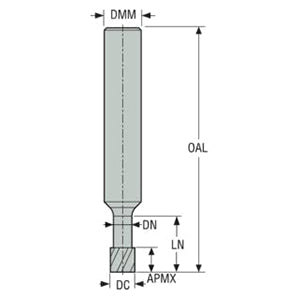

Product Specifications
| Manufacturer Part Number | 17004549 |
| Cutting Diameter (Decimal Inch) | 0.495" |
| Cutting Diameter (mm) | 12.57mm |
| Minimum Cutting Diameter (Decimal Inch) | 0.734" |
| Minimum Cutting Diameter (mm) | 18.65mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.500" |
| Connection Diameter Machine Side (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (mm) | 12.70mm |
| Thread Diameter Size | M20 |
| Corner Radius (Decimal Inch) | 0.005" |
| Corner Radius (mm) | 0.13mm |
| Protruding Length (Decimal Inch) | 1.781" |
| Protruding Length (mm) | 45.24mm |
| Shank Length (Decimal Inch) | 2.453" |
| Shank Length (mm) | 62.29mm |
| Overall Length (Decimal Inch) | 4.000" |
| Overall Length (mm) | 101.60mm |
| Maximum Depth of Cut (mm) | 31.75mm |
| Maximum Depth of Cut (Decimal Inch) | 1.250" |
| Minimum Thread Pitch (Decimal Inch) | 0.0591 |
| Minimum Thread Pitch (mm) | 1.5 |
| Maximum Thread Pitch (Decimal Inch) | 0.0591 |
| Maximum Thread Pitch (mm) | 1.5 |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 4 |
| Tooth Count | 22 |
| Profile Included Angle (Degree) | 60 Degree |
| Maximum Rotational Speed (rpm) | 10000 rpm |
| Shank Type | Cylindrical |

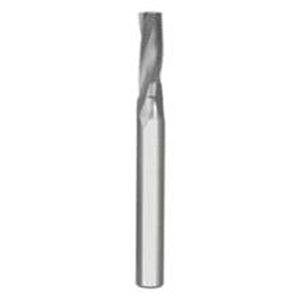

| Product Type | Helical Flute Thread Mill |
