Product Specifications

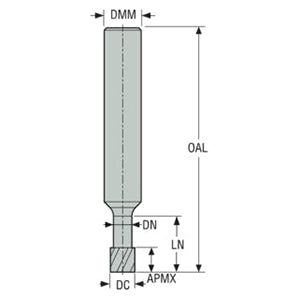

| Manufacturer Part Number | 17004539 |
| Cutting Diameter (Decimal Inch) | 0.370" |
| Cutting Diameter (mm) | 9.40mm |
| Minimum Cutting Diameter (Decimal Inch) | 0.500" |
| Minimum Cutting Diameter (mm) | 12.70mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.375" |
| Connection Diameter Machine Side (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (mm) | 9.53mm |
| Thread Diameter Size | M14 |
| Corner Radius (Decimal Inch) | 0.004" |
| Corner Radius (mm) | 0.10mm |
| Protruding Length (Decimal Inch) | 1.562" |
| Protruding Length (mm) | 39.67mm |
| Shank Length (Decimal Inch) | 2.429" |
| Shank Length (mm) | 61.70mm |
| Overall Length (Decimal Inch) | 3.500" |
| Overall Length (mm) | 88.90mm |
| Maximum Depth of Cut (mm) | 22.23mm |
| Maximum Depth of Cut (Decimal Inch) | 0.875" |
| Minimum Thread Pitch (Decimal Inch) | 0.0492 |
| Minimum Thread Pitch (mm) | 1.25 |
| Maximum Thread Pitch (Decimal Inch) | 0.0492 |
| Maximum Thread Pitch (mm) | 1.25 |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 4 |
| Tooth Count | 18 |
| Profile Included Angle (Degree) | 60 Degree |
| Maximum Rotational Speed (rpm) | 10000 rpm |
| Shank Type | Cylindrical |

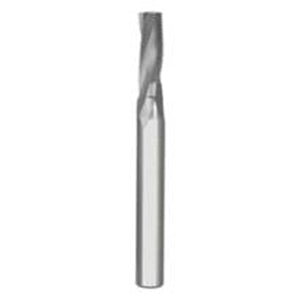

| Product Type | Helical Flute Thread Mill |
