Product Specifications
| Manufacturer Part Number | 17004437 |
| Cutting Diameter (Decimal Inch) | 0.285" |
| Cutting Diameter (mm) | 7.24mm |
| Minimum Cutting Diameter (Decimal Inch) | 0.313" |
| Minimum Cutting Diameter (mm) | 7.94mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.313" |
| Connection Diameter Machine Side (mm) | 7.94mm |
| Shank Diameter (Decimal Inch) | 0.313" |
| Shank Diameter (mm) | 7.94mm |
| Thread Diameter Size | 3/8 |
| Corner Radius (Decimal Inch) | 0.005" |
| Corner Radius (mm) | 0.13mm |
| Protruding Length (Decimal Inch) | 1.562" |
| Protruding Length (mm) | 39.67mm |
| Shank Length (Decimal Inch) | 2.108" |
| Shank Length (mm) | 53.53mm |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (mm) | 76.20mm |
| Maximum Depth of Cut (mm) | 19.05mm |
| Maximum Depth of Cut (Decimal Inch) | 0.750" |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 3 |
| Tooth Count | 12 |
| Profile Included Angle (Degree) | 60 Degree |
| Maximum Rotational Speed (rpm) | 10000 rpm |
| Shank Type | Cylindrical |

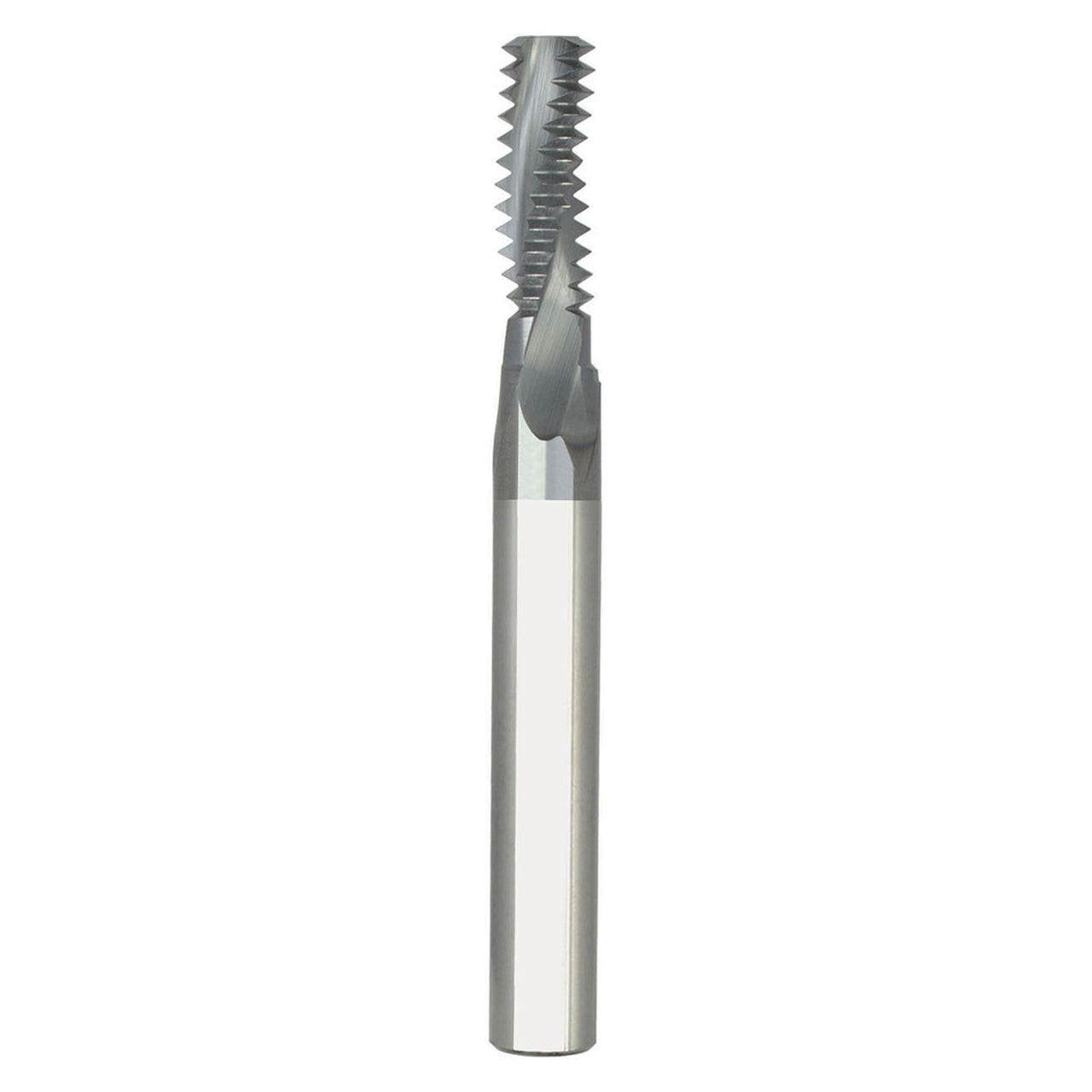

| Product Type | Helical Flute Thread Mill |
