Product Specifications
| Manufacturer Part Number | 17002925 |
| Cutting Diameter (Decimal Inch) | 0.625" |
| Cutting Diameter (mm) | 15.88mm |
| Cutting Diameter 1 (Decimal Inch) | 0.625" |
| Cutting Diameter 1 (mm) | 15.88mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.625" |
| Connection Diameter Machine Side (mm) | 15.88mm |
| Lower Cutting Diameter Tolerance (Decimal Inch) | 0.002 |
| Lower Cutting Diameter Tolerance (mm) | 0.0508 |
| Shank Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (mm) | 15.88mm |
| Neck Diameter (Decimal Inch) | 0.600" |
| Neck Diameter (mm) | 15.24mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.187" |
| Maximum Helical Interpolation Hole Diameter (mm) | 30.15mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.813" |
| Minimum Helical Interpolation Hole Diameter (mm) | 20.64mm |
| Corner Radius (Decimal Inch) | 0.030" |
| Corner Radius (mm) | 0.76mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.750" |
| Cutting Edge Effective Length (mm) | 19.05mm |
| Neck Length (Decimal Inch) | 4.000" |
| Neck Length (mm) | 101.60mm |
| Neck Length 1 (Decimal Inch) | 4.000" |
| Neck Length 1 (mm) | 101.60mm |
| Minimum Clamping Length (Decimal Inch) | 1.906" |
| Minimum Clamping Length (mm) | 48.42mm |
| Overall Length (Decimal Inch) | 6.000" |
| Overall Length (mm) | 152.40mm |
| Maximum Depth of Cut (mm) | 19.05mm |
| Maximum Depth of Cut (Decimal Inch) | 0.750" |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.750" |
| Theoretical Cutting Edge Length (mm) | 19.05mm |
| Radial Runout (mm) | 0.01mm |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 4 |
| Cutting Geometry Type | STRN430 |
| Cutting Geometry Type Technical | STRN430 |
| Face Cutting Edge Count | 4 |
| Flute Helix Angle (Degree) | 30 Degree |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | 9 Degree |
| Rake Radial Angle (Degree) | 9 Degree |
| Axial Rake Angle (Degree) | 30 Degree |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 92.5 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Length Variant Cataloque | 5 |
| Number of Flute | 4 |
| Pheripheral Cutting Edge Count | 4 |
| Maximum Ramping Angle (Degree) | 5 Degree |
| Axial Runout (mm) | 0.01mm |
| Shank Type | Weldon |
| Coating | AlTiN |

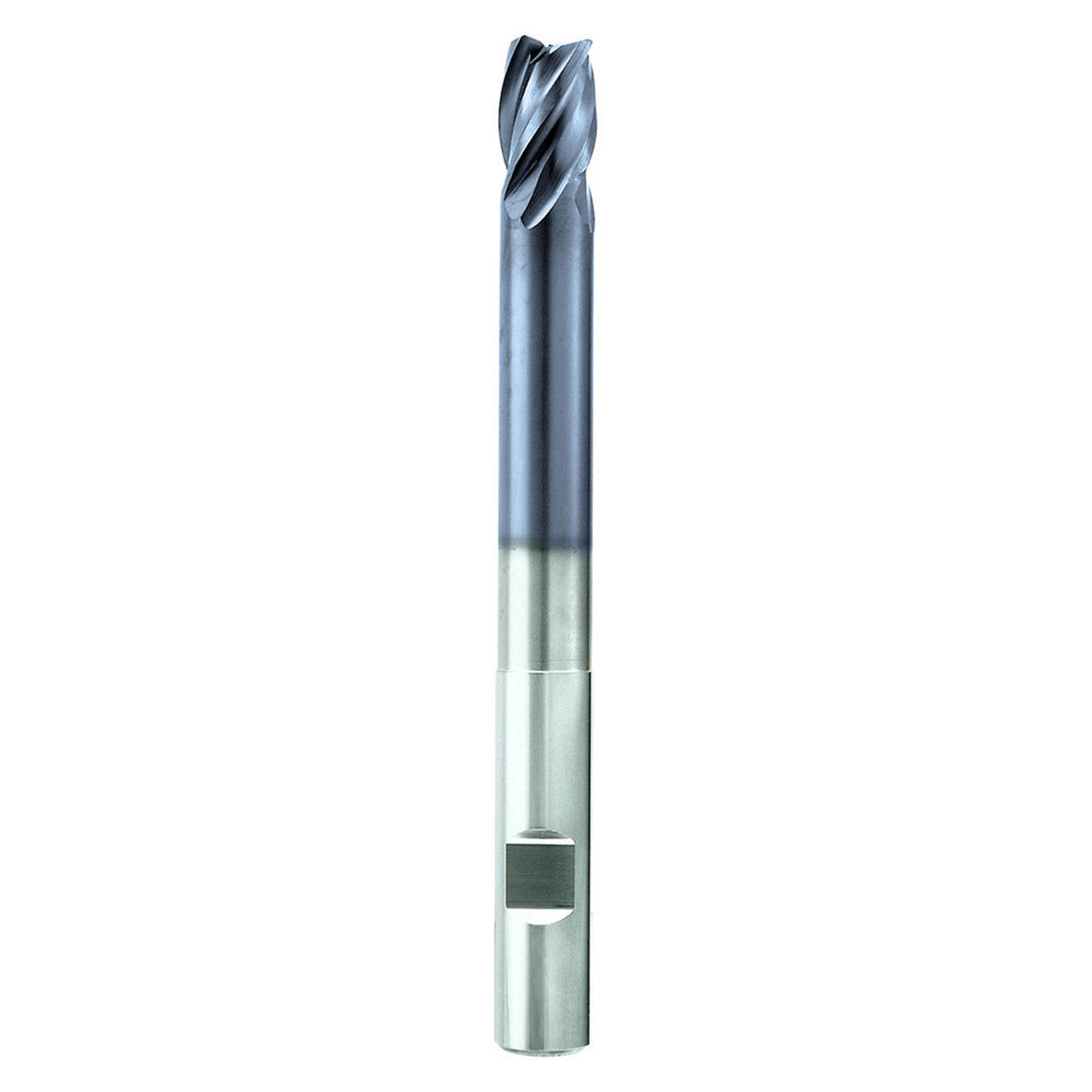

| Product Type | Corner Radius End Mill |
