Product Specifications
| Manufacturer Part Number | 17000528 |
| Cutting Diameter (Decimal Inch) | 0.285" |
| Cutting Diameter (mm) | 7.24mm |
| Minimum Cutting Diameter (Decimal Inch) | 0.332" |
| Minimum Cutting Diameter (mm) | 8.43mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.313" |
| Connection Diameter Machine Side (mm) | 7.94mm |
| Shank Diameter (Decimal Inch) | 0.313" |
| Shank Diameter (mm) | 7.94mm |
| Neck Diameter (Decimal Inch) | 0.152" |
| Neck Diameter (mm) | 3.86mm |
| Thread Diameter Size | 3/8 |
| Corner Radius (Decimal Inch) | 0.003" |
| Corner Radius (mm) | 0.08mm |
| Protruding Length (Decimal Inch) | 1.417" |
| Protruding Length (mm) | 36.00mm |
| Shank Length (Decimal Inch) | 1.375" |
| Shank Length (mm) | 34.93mm |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (mm) | 76.20mm |
| Maximum Depth of Cut (mm) | 3.18mm |
| Maximum Depth of Cut (Decimal Inch) | 0.125" |
| Cutting Direction | Right Hand |
| Number of Flute | 3 |
| Tooth Count | 3 |
| Profile Included Angle (Degree) | 60 Degree |
| Maximum Rotational Speed (rpm) | 10000 rpm |

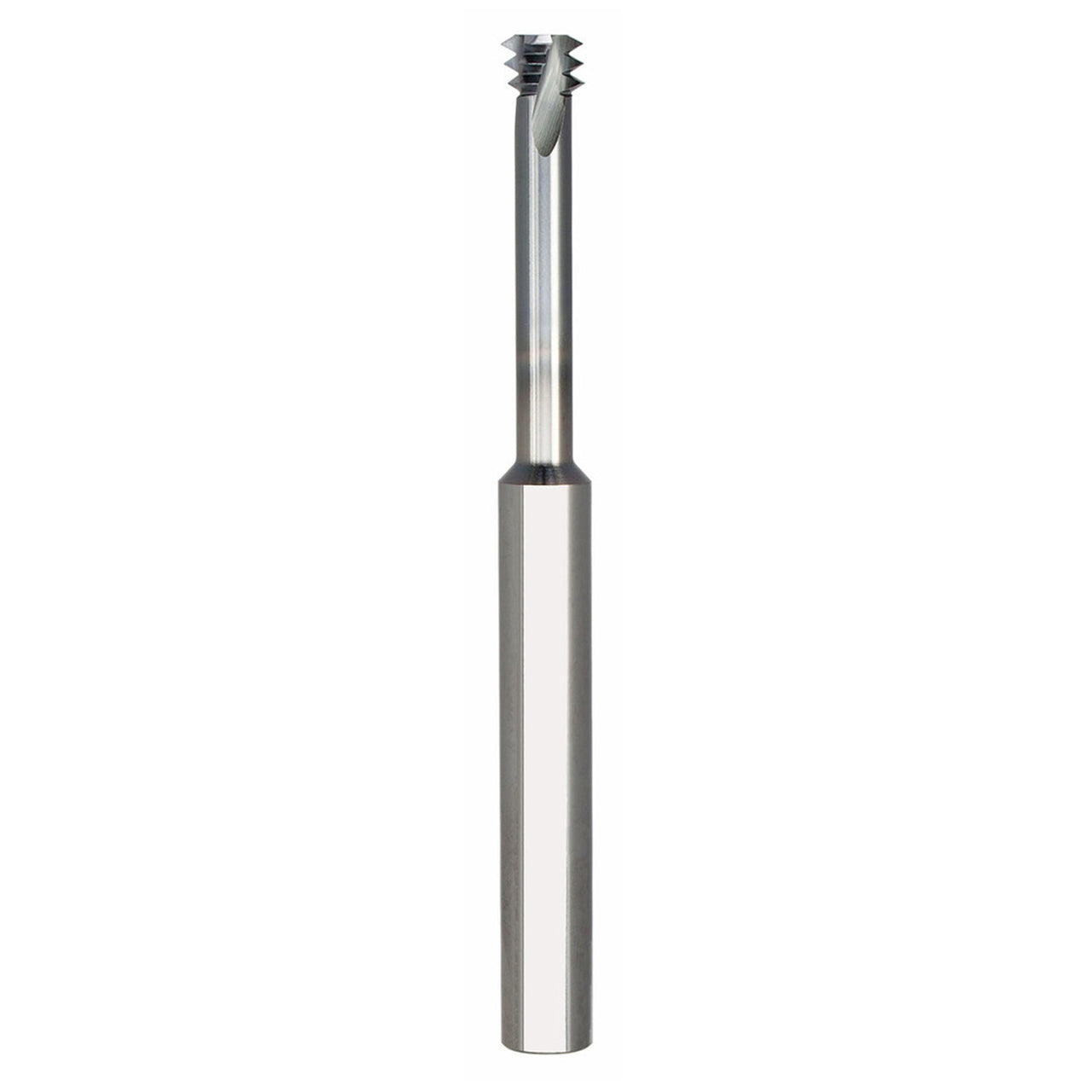

| Product Type | Helical Flute Thread Mill |
