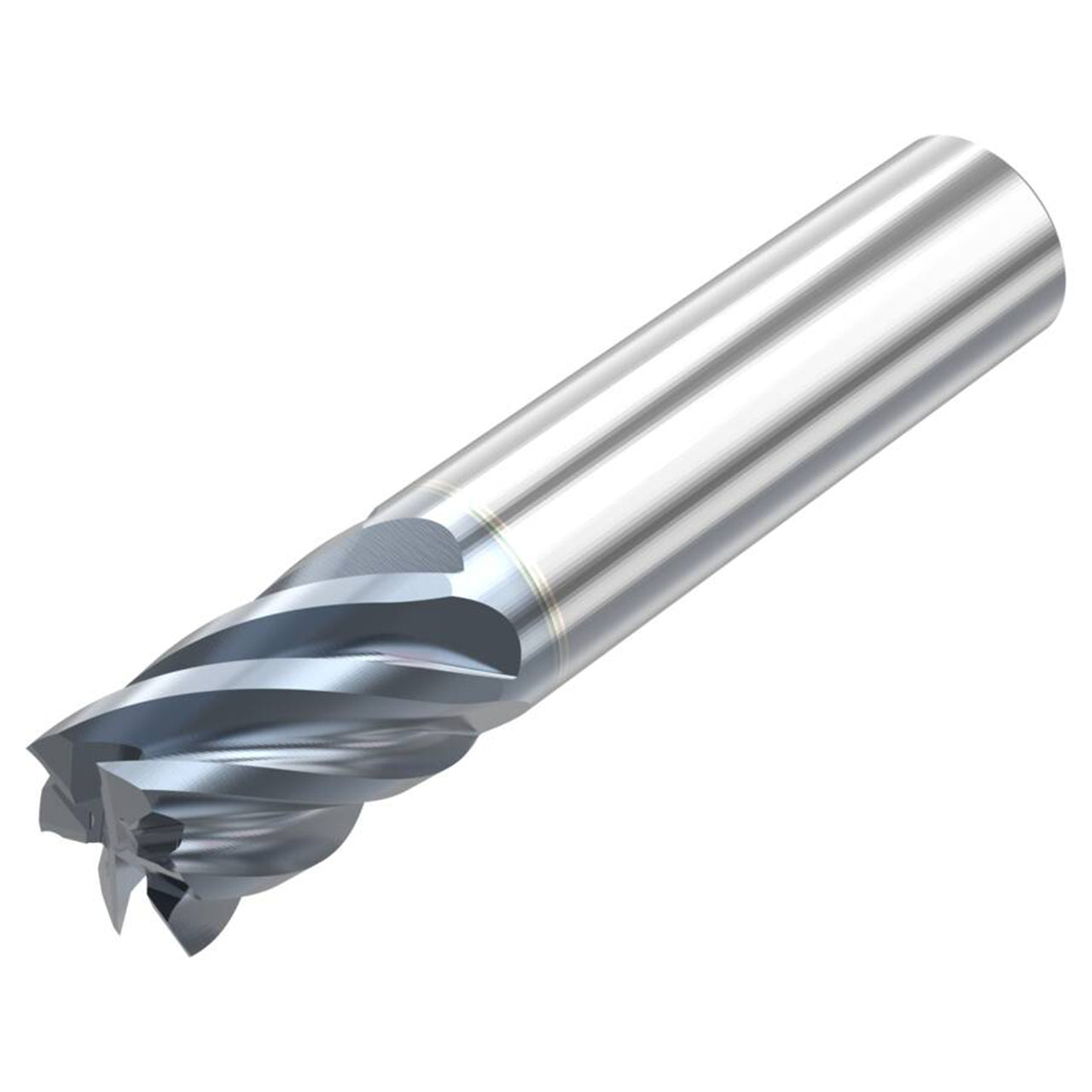

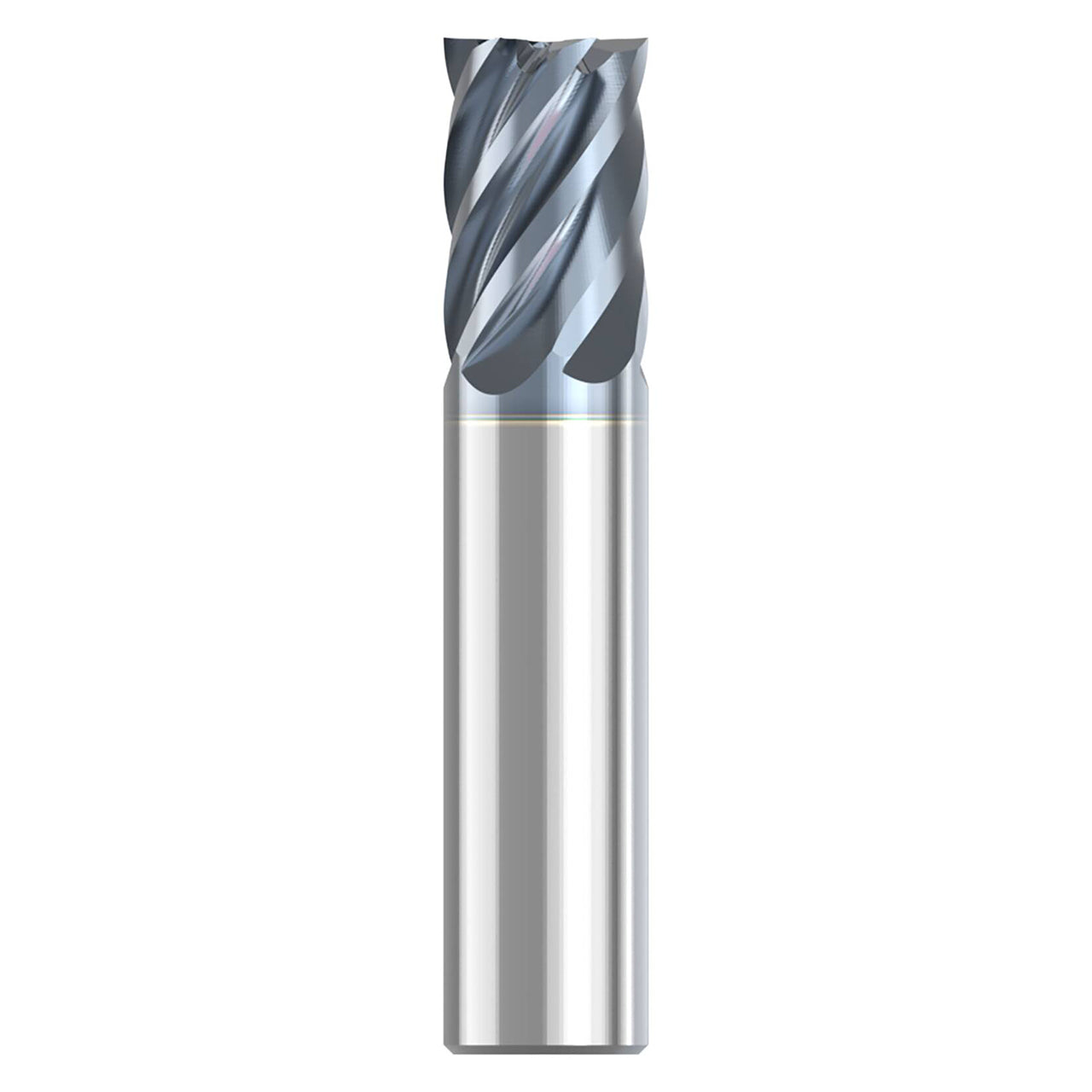

Product Specifications
| Manufacturer Part Number | 10115716 |
| Cutting Diameter (Decimal Inch) | 0.375" |
| Cutting Diameter (mm) | 9.53mm |
| Cutting Diameter 1 (Decimal Inch) | 0.375" |
| Cutting Diameter 1 (mm) | 9.53mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.375" |
| Connection Diameter Machine Side (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (mm) | 9.53mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.731" |
| Maximum Helical Interpolation Hole Diameter (mm) | 18.57mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.488" |
| Minimum Helical Interpolation Hole Diameter (mm) | 12.38mm |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (mm) | 50.80mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.500" |
| Cutting Edge Effective Length (mm) | 12.70mm |
| Depth of Cut (Decimal Inch) | 0.500" |
| Depth of Cut (mm) | 12.70mm |
| Maximum Depth of Cut (Decimal Inch) | 0.500" |
| Maximum Depth of Cut (mm) | 12.70mm |
| Shank Type | Cylindrical |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 6 |
| Cutting Geometry Type | S638 |
| Cutting Geometry Type Technical | S638 |
| Face Cutting Edge Count | 6 |
| Flute Helix Angle (Degree) | 38 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 10 Degree |
| Axial Rake Angle (Degree) | 8 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 6 |
| Material | Carbide |
| Coating | HTA |
| Product Type | Roughing & Finishing End Mill |
