Product Specifications
| Manufacturer Part Number | 10023113 |
| Cutting Diameter (Decimal Inch) | 0.313" |
| Cutting Diameter (mm) | 7.94mm |
| Cutting Diameter 1 (Decimal Inch) | 0.313" |
| Cutting Diameter 1 (mm) | 7.94mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.313" |
| Connection Diameter Machine Side (mm) | 7.94mm |
| Shank Diameter (Decimal Inch) | 0.313" |
| Shank Diameter (mm) | 7.94mm |
| Neck Diameter (Decimal Inch) | 0.300" |
| Neck Diameter (mm) | 7.62mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.609" |
| Maximum Helical Interpolation Hole Diameter (mm) | 15.48mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.406" |
| Minimum Helical Interpolation Hole Diameter (mm) | 10.32mm |
| Overall Length (Decimal Inch) | 4.000" |
| Overall Length (mm) | 101.60mm |
| Neck Length (Decimal Inch) | 2.125" |
| Neck Length (mm) | 53.98mm |
| Neck Length 1 (Decimal Inch) | 2.125" |
| Neck Length 1 (mm) | 53.98mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.438" |
| Cutting Edge Effective Length (mm) | 11.11mm |
| Depth of Cut (Decimal Inch) | 0.438" |
| Depth of Cut (mm) | 11.11mm |
| Maximum Depth of Cut (Decimal Inch) | 0.438" |
| Maximum Depth of Cut (mm) | 11.11mm |
| Shank Type | Cylindrical |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 3 |
| Cutting Geometry Type | AN345 |
| Cutting Geometry Type Technical | AN345 |
| Face Cutting Edge Count | 3 |
| Flute Helix Angle (Degree) | 45 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 20 Degree |
| Axial Rake Angle (Degree) | 7 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 3 |
| Material | Carbide |
| Coating | ANF |

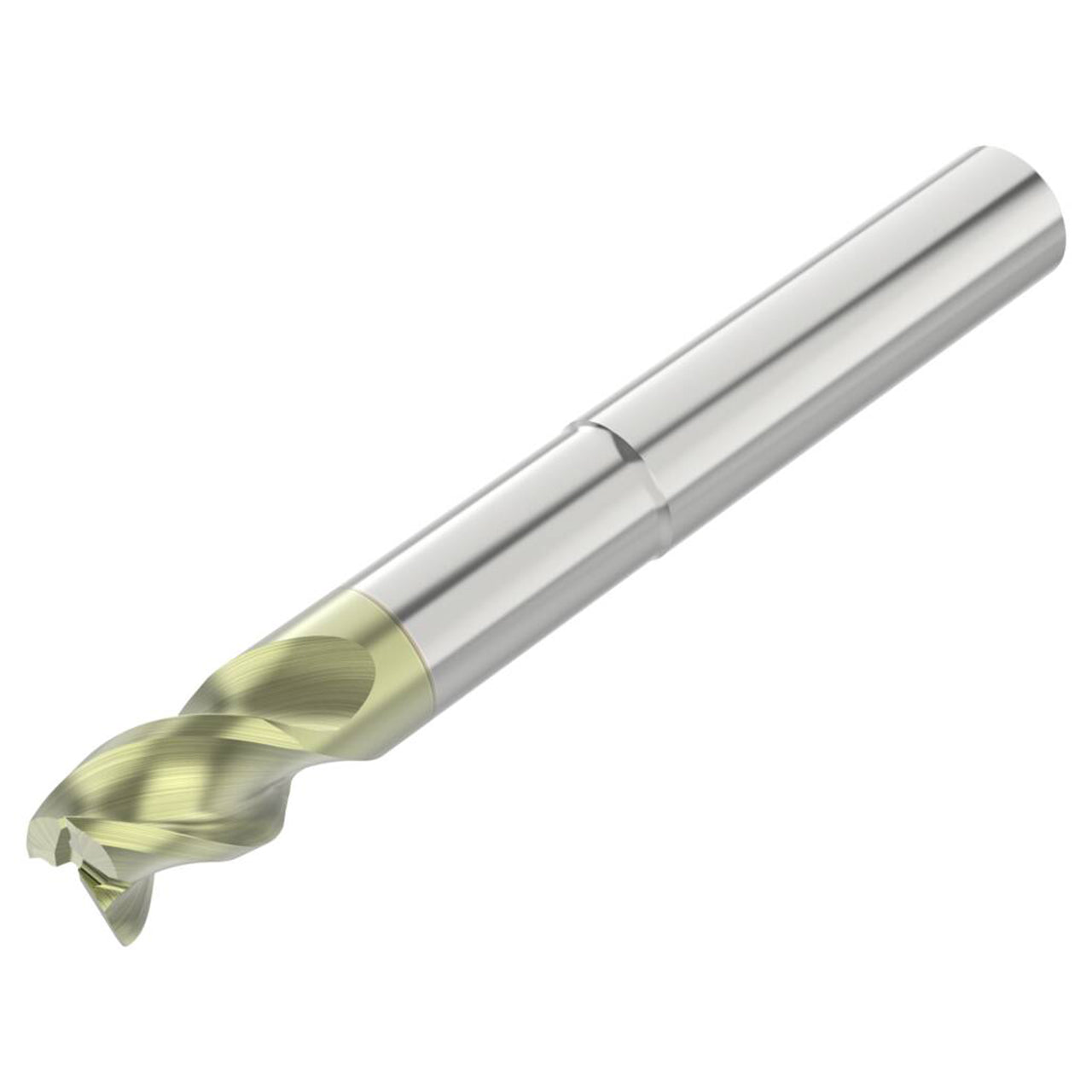

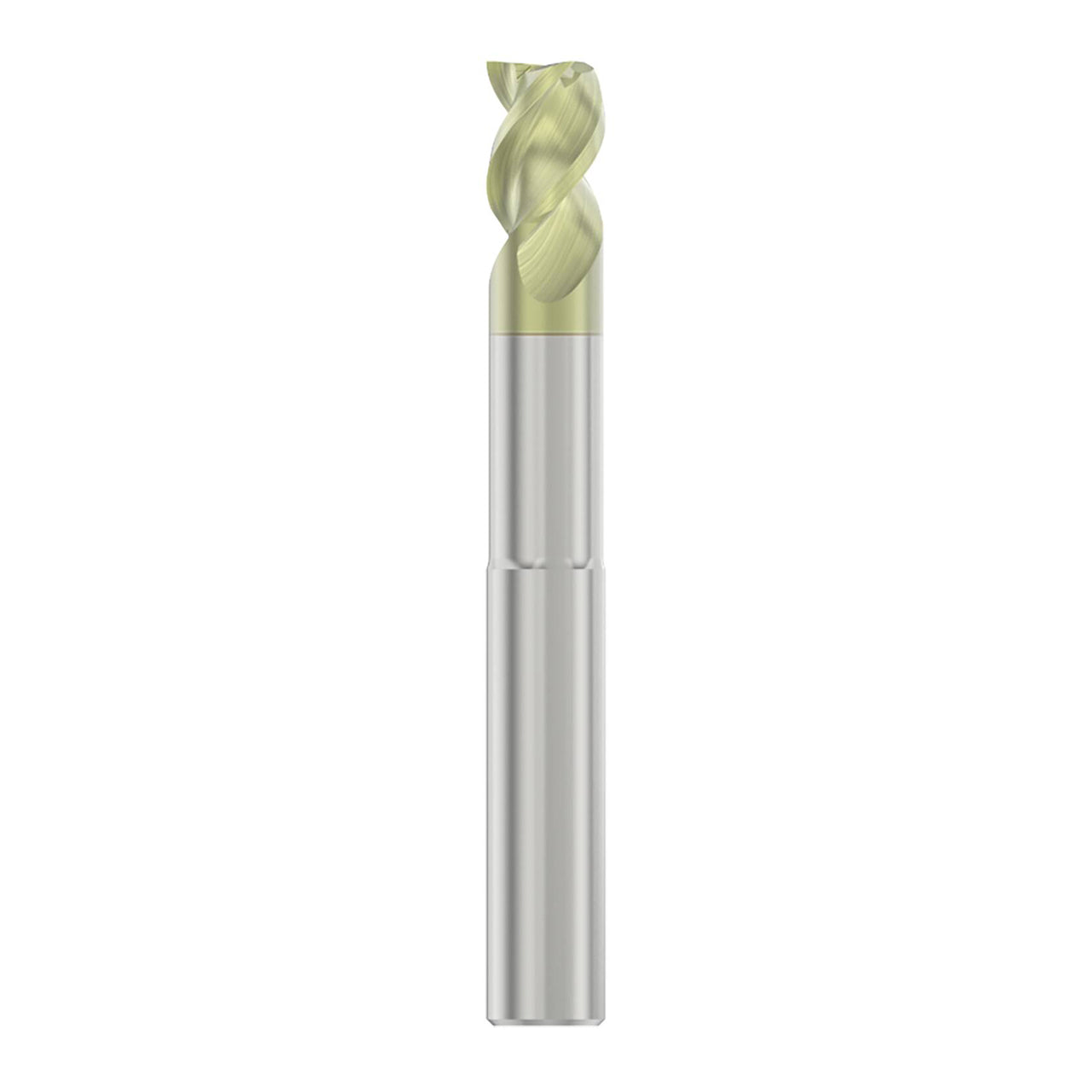

| Product Type | Square End Mill |
