Product Specifications
| Manufacturer Part Number | 10023040 |
| Cutting Diameter (Decimal Inch) | 0.156" |
| Cutting Diameter (mm) | 3.97mm |
| Cutting Diameter 1 (Decimal Inch) | 0.156" |
| Cutting Diameter 1 (mm) | 3.97mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.188" |
| Connection Diameter Machine Side (mm) | 4.76mm |
| Shank Diameter (Decimal Inch) | 0.188" |
| Shank Diameter (mm) | 4.76mm |
| Neck Diameter (Decimal Inch) | 0.156" |
| Neck Diameter (mm) | 3.97mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.271" |
| Maximum Helical Interpolation Hole Diameter (mm) | 6.87mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.203" |
| Minimum Helical Interpolation Hole Diameter (mm) | 5.16mm |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (mm) | 50.80mm |
| Neck Length (Decimal Inch) | 0.500" |
| Neck Length (mm) | 12.70mm |
| Neck Length 1 (Decimal Inch) | 0.500" |
| Neck Length 1 (mm) | 12.70mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.500" |
| Cutting Edge Effective Length (mm) | 12.70mm |
| Maximum Depth of Cut (Decimal Inch) | 0.500" |
| Maximum Depth of Cut (mm) | 12.70mm |
| Corner Radius (Decimal Inch) | 0.020" |
| Corner Radius (mm) | 0.51mm |
| Shank Type | Cylindrical |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 3 |
| Cutting Geometry Type | A345R |
| Cutting Geometry Type Technical | A345 |
| Face Cutting Edge Count | 3 |
| Flute Helix Angle (Degree) | 45 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 20 Degree |
| Axial Rake Angle (Degree) | 7 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 3 |
| Material | Carbide |
| Coating | ANF |

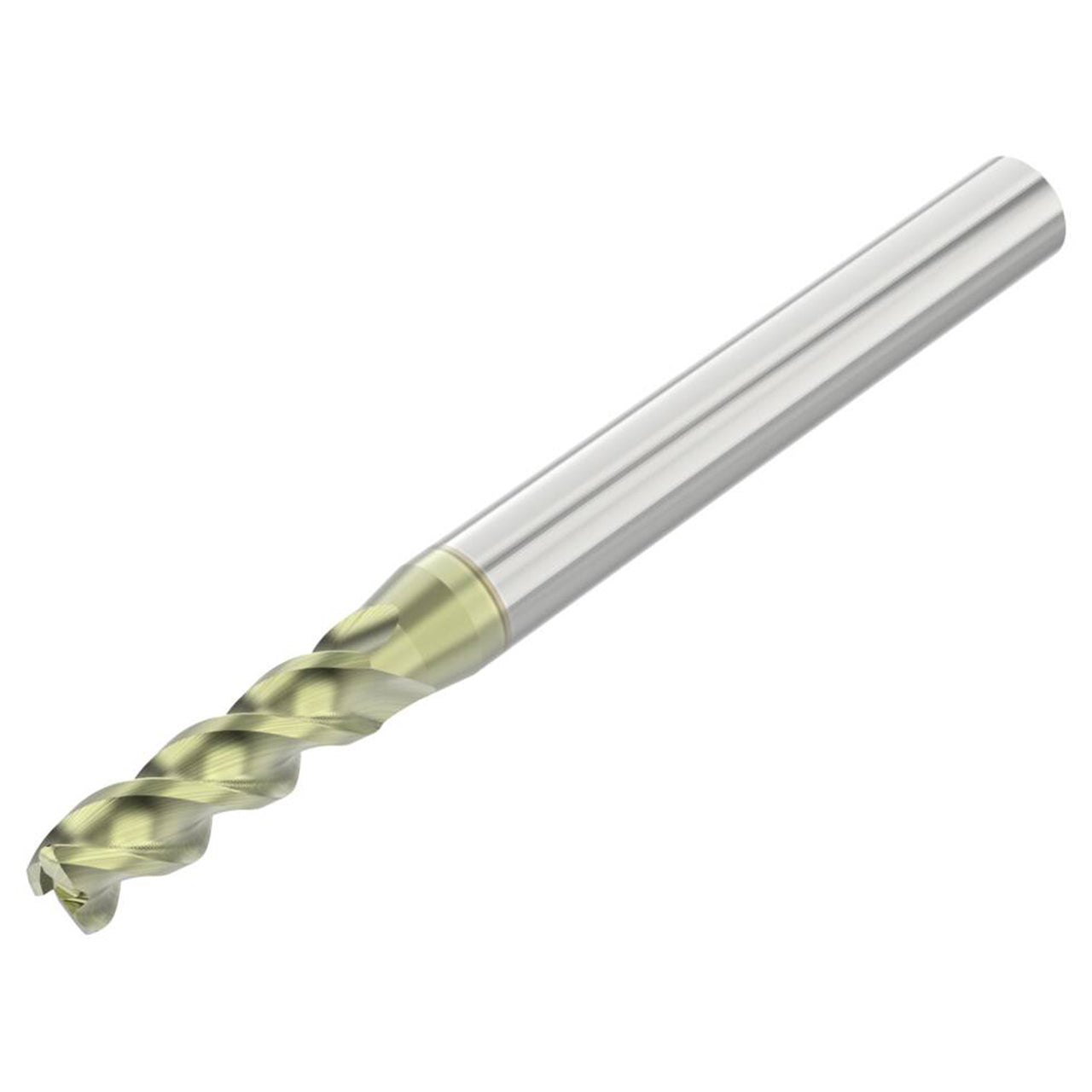

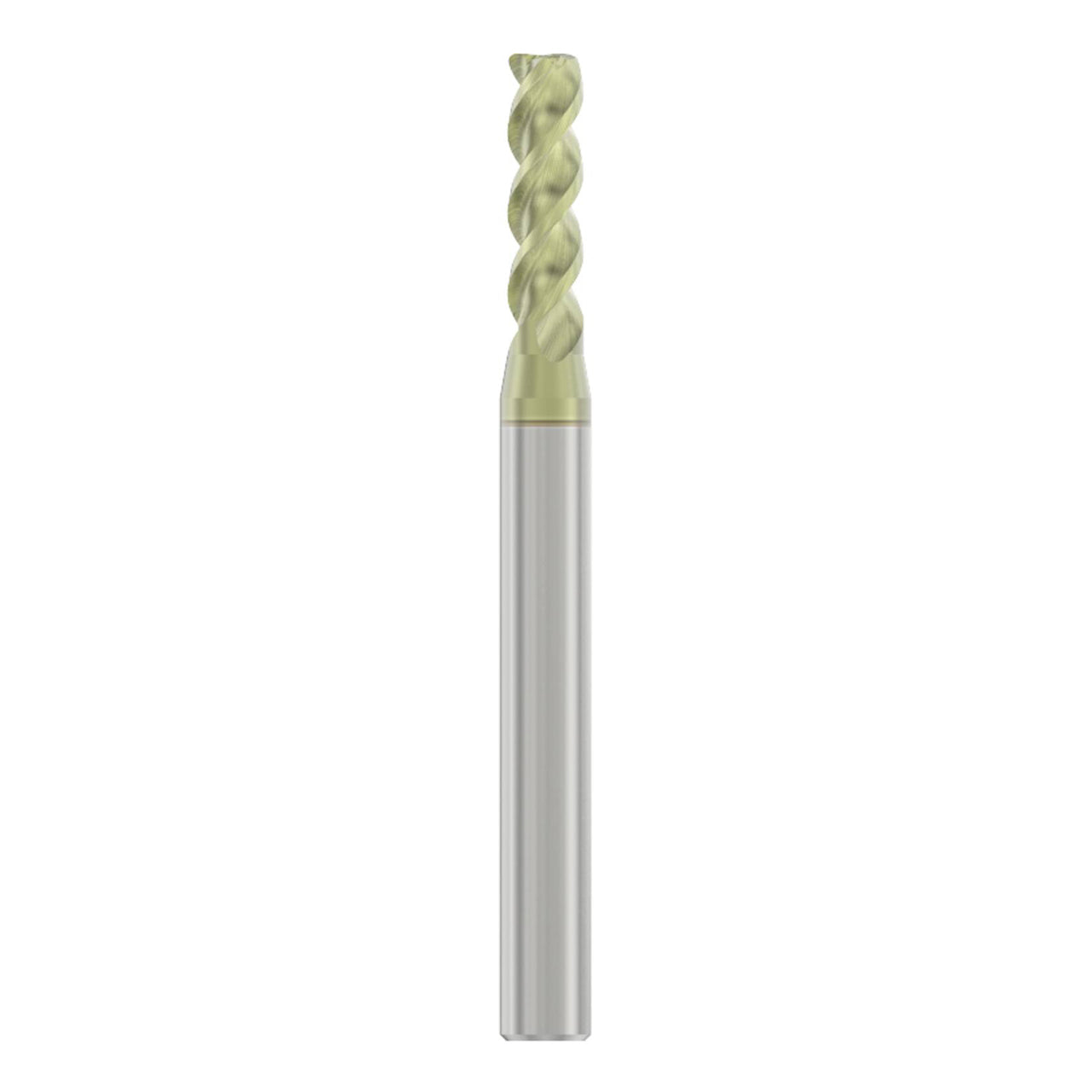

| Product Type | Corner Radius End Mill |
