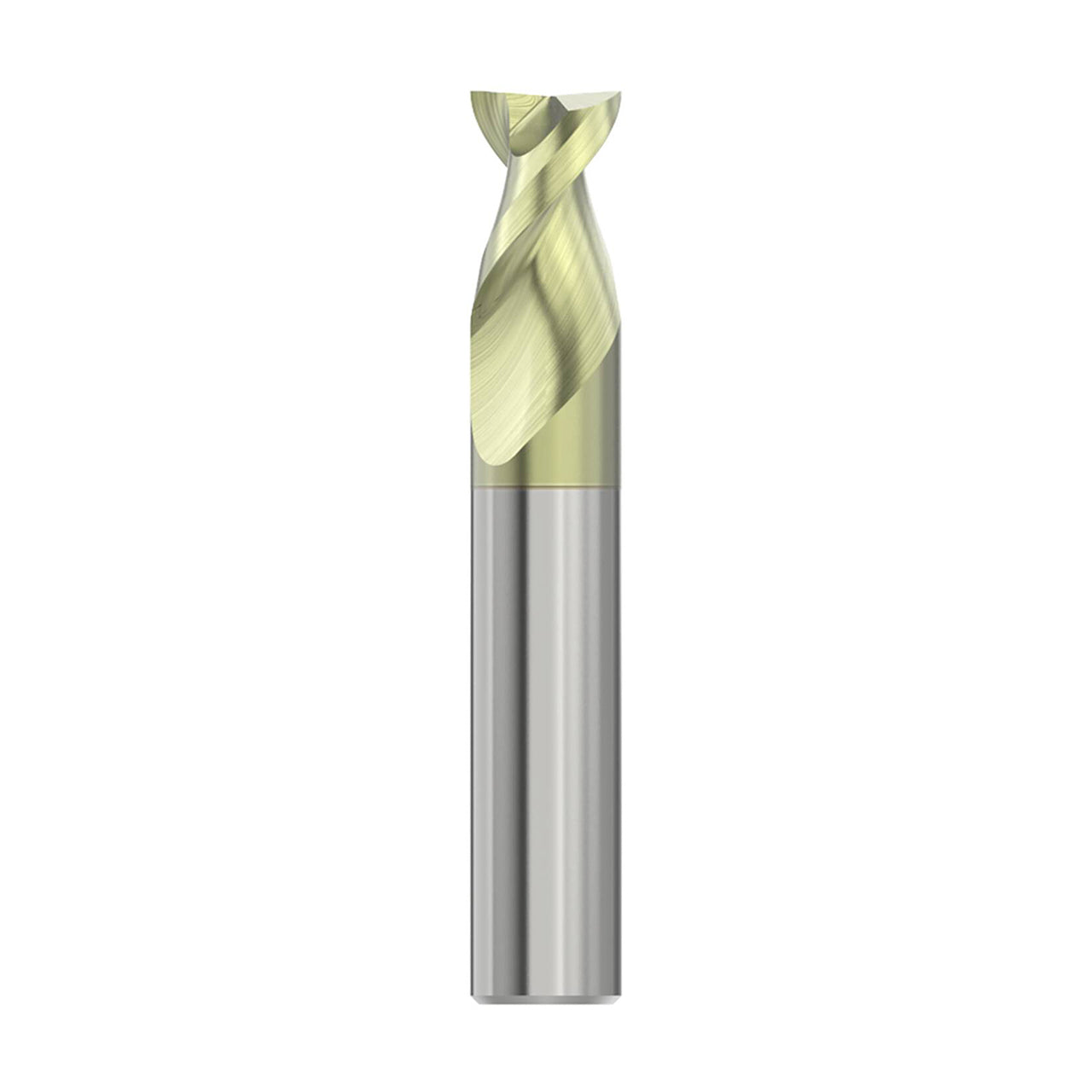

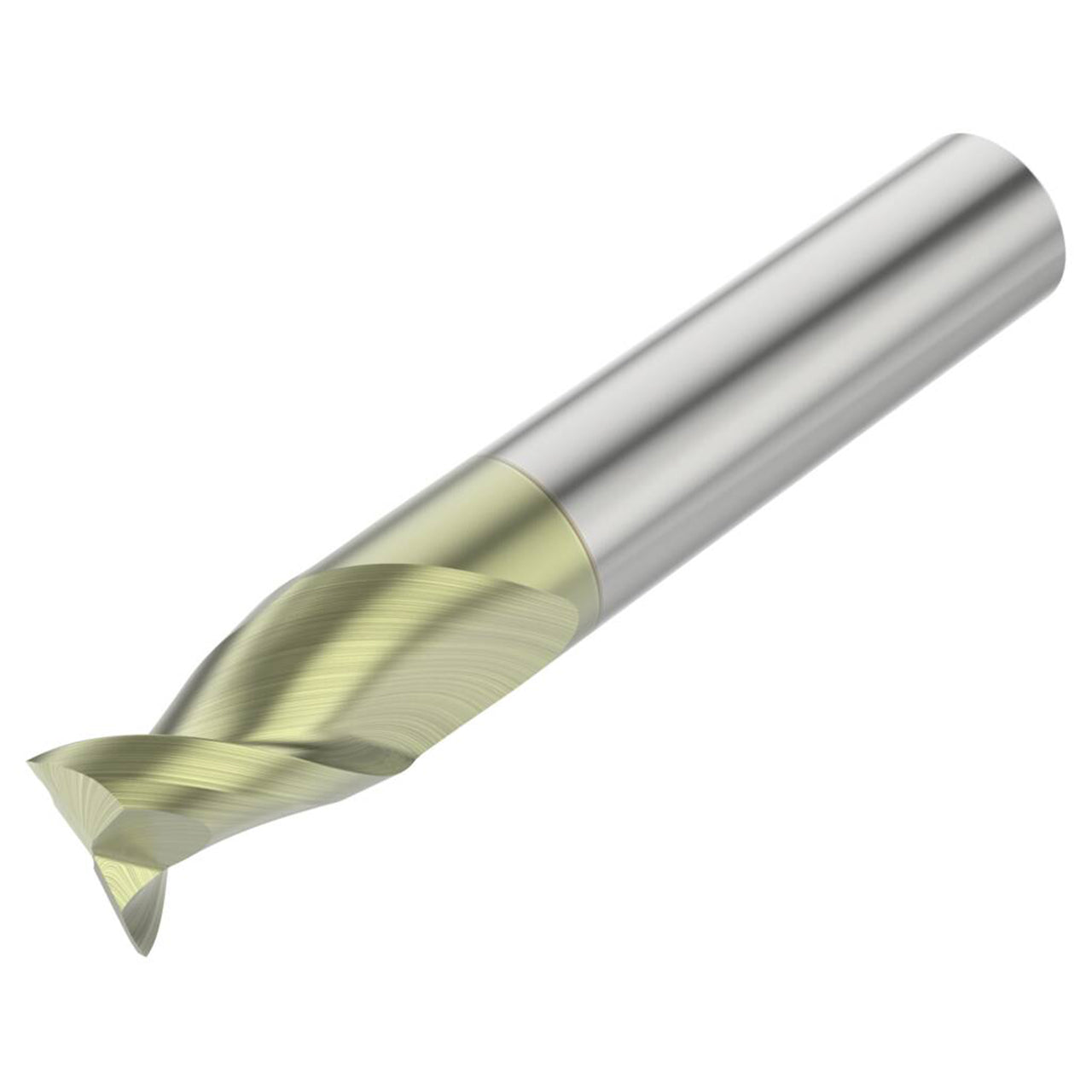

Product Specifications
| Manufacturer Part Number | 10022718 |
| Cutting Diameter (Decimal Inch) | 0.500" |
| Cutting Diameter (mm) | 12.70mm |
| Cutting Diameter 1 (Decimal Inch) | 0.500" |
| Cutting Diameter 1 (mm) | 12.70mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.500" |
| Connection Diameter Machine Side (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (mm) | 12.70mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.975" |
| Maximum Helical Interpolation Hole Diameter (mm) | 24.77mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.650" |
| Minimum Helical Interpolation Hole Diameter (mm) | 16.51mm |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (mm) | 76.20mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.625" |
| Cutting Edge Effective Length (mm) | 15.88mm |
| Depth of Cut (Decimal Inch) | 0.625" |
| Depth of Cut (mm) | 15.88mm |
| Maximum Depth of Cut (Decimal Inch) | 0.625" |
| Maximum Depth of Cut (mm) | 15.88mm |
| Shank Type | Cylindrical |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 2 |
| Cutting Geometry Type | A245 |
| Cutting Geometry Type Technical | A245 |
| Face Cutting Edge Count | 2 |
| Flute Helix Angle (Degree) | 45 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | 20 Degree |
| Axial Rake Angle (Degree) | 7 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 2 |
| Material | Carbide |
| Coating | ANF |
| Product Type | Square End Mill |
