Product Specifications

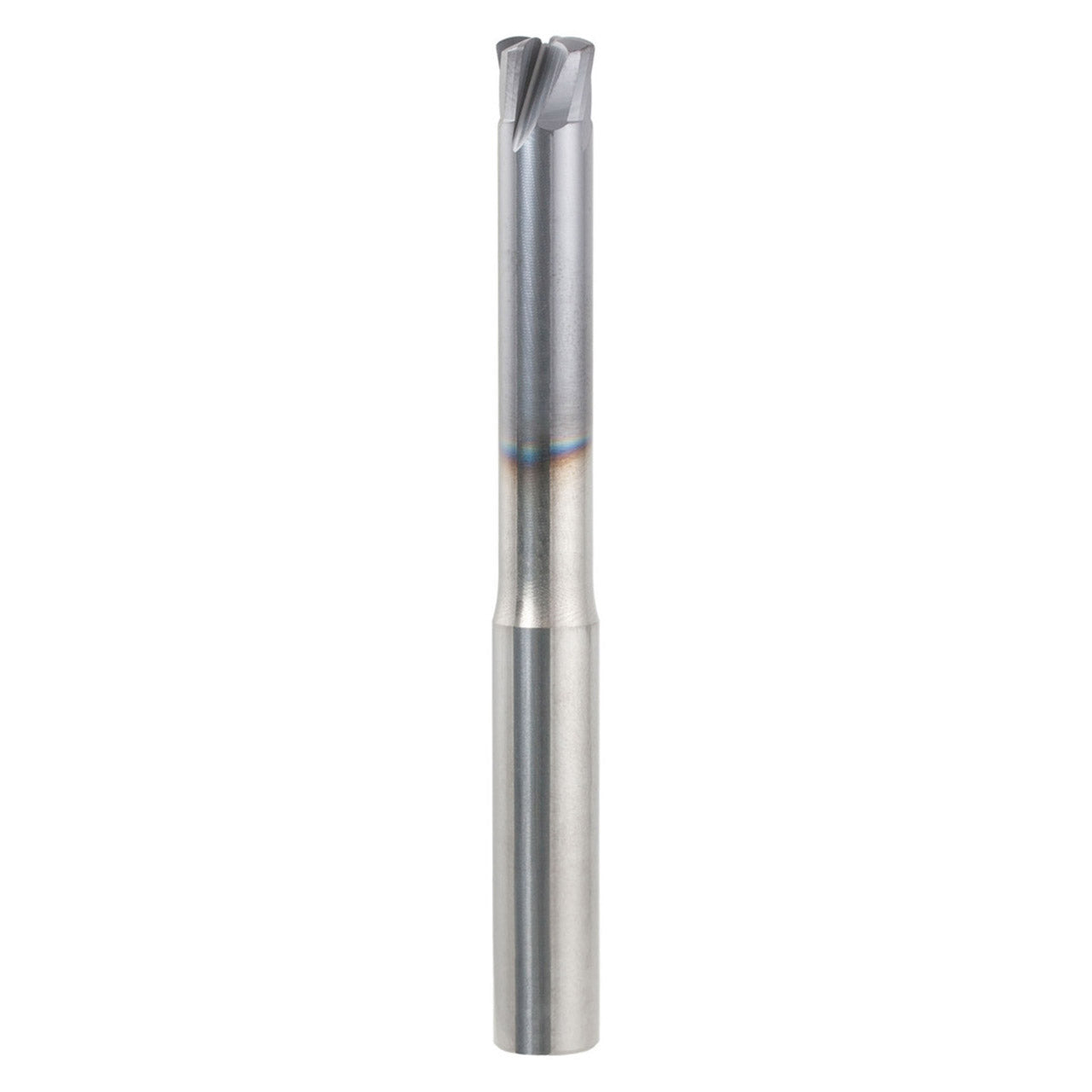

| Manufacturer Part Number | 03043604 |
| Cutting Diameter (Decimal Inch) | 0.156" |
| Cutting Diameter (mm) | 3.97mm |
| Cutting Diameter 1 (Decimal Inch) | 0.265" |
| Cutting Diameter 1 (mm) | 6.72mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.375" |
| Connection Diameter Machine Side (mm) | 9.53mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.313" |
| Maximum Cutting Diameter (mm) | 7.94mm |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (mm) | 9.53mm |
| Neck Diameter (Decimal Inch) | 0.273" |
| Neck Diameter (mm) | 6.93mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.406" |
| Minimum Helical Interpolation Hole Diameter (mm) | 10.32mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.575" |
| Maximum Helical Interpolation Hole Diameter (mm) | 14.59mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.016" |
| Cutting Edge Effective Length (mm) | 0.41mm |
| Neck Length (Decimal Inch) | 0.938" |
| Neck Length (mm) | 23.81mm |
| Neck Length 1 (Decimal Inch) | 0.938" |
| Neck Length 1 (mm) | 23.81mm |
| Minimum Clamping Length (Decimal Inch) | 0.062" |
| Minimum Clamping Length (mm) | 1.56mm |
| Length Variant Cataloque | 1 |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.016" |
| Theoretical Cutting Edge Length (mm) | 0.41mm |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (mm) | 63.50mm |
| Number of Flute | 4 |
| Pheripheral Cutting Edge Count | 4 |
| Maximum Depth of Cut (Decimal Inch) | 0.016" |
| Maximum Depth of Cut (mm) | 0.41mm |
| Curved Cutting Edge Radius (Decimal Inch) | 0.141" |
| Curved Cutting Edge Radius (mm) | 3.58mm |
| Corner Radius (Decimal Inch) | 0.024" |
| Corner Radius (mm) | 0.61mm |
| Axial Runout (Decimal Inch) | 0 |
| Axial Runout (mm) | 0.01mm |
| Radial Runout (Decimal Inch) | 0 |
| Radial Runout (mm) | 0.01mm |
| Programming Radius (Decimal Inch) | 0.037" |
| Programming Radius (mm) | 0.95mm |
| Cutting Edge Count | 4 |
| Face Cutting Edge Count | 4 |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Collision Angle (Degree) | 1.8 Degree |
| Rake Radial Angle (Degree) | 0.5 Degree |
| Maximum Ramping Angle (Degree) | 1.5 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Straight |
| Cutting Geometry Type | SN400R |
| Cutting Geometry Type Technical | SN400R |
| Internal Coolant Channel | No |
| Cutting Item Material Type | Carbide |
| Shank Type | Cylindrical |
| Material | Carbide |
| Coating | AlTiN |
| Product Type | High-Feed End Mill |
