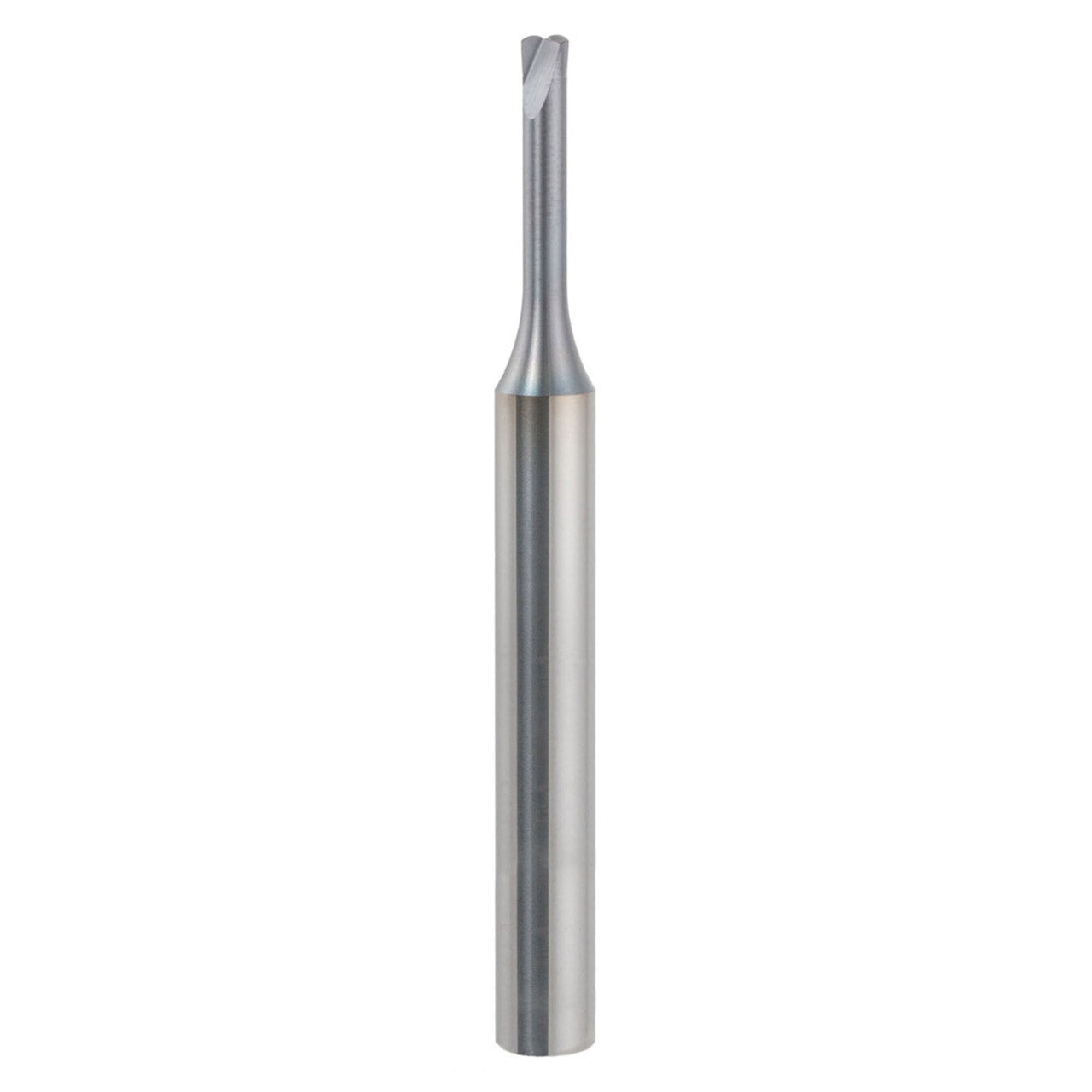

Product Specifications
| Manufacturer Part Number | 03043583 |
| Cutting Diameter (Decimal Inch) | 0.063" |
| Cutting Diameter (mm) | 1.59mm |
| Cutting Diameter 1 (Decimal Inch) | 0.109" |
| Cutting Diameter 1 (mm) | 2.77mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.250" |
| Connection Diameter Machine Side (mm) | 6.35mm |
| Maximum Cutting Diameter (Decimal Inch) | 0.125" |
| Maximum Cutting Diameter (mm) | 3.18mm |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (mm) | 6.35mm |
| Neck Diameter (Decimal Inch) | 0.109" |
| Neck Diameter (mm) | 2.77mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 0.163" |
| Minimum Helical Interpolation Hole Diameter (mm) | 4.13mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 0.233" |
| Maximum Helical Interpolation Hole Diameter (mm) | 5.92mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.008" |
| Cutting Edge Effective Length (mm) | 0.20mm |
| Neck Length (Decimal Inch) | 0.880" |
| Neck Length (mm) | 22.35mm |
| Neck Length 1 (Decimal Inch) | 0.880" |
| Neck Length 1 (mm) | 22.35mm |
| Minimum Clamping Length (Decimal Inch) | 1.417" |
| Minimum Clamping Length (mm) | 36.00mm |
| Length Variant Cataloque | 3 |
| Theoretical Cutting Edge Length (Decimal Inch) | 0.008" |
| Theoretical Cutting Edge Length (mm) | 0.20mm |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (mm) | 63.50mm |
| Number of Flute | 2 |
| Pheripheral Cutting Edge Count | 2 |
| Maximum Depth of Cut (Decimal Inch) | 0.008" |
| Maximum Depth of Cut (mm) | 0.20mm |
| Curved Cutting Edge Radius (Decimal Inch) | 0.051" |
| Curved Cutting Edge Radius (mm) | 1.31mm |
| Corner Radius (Decimal Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Axial Runout (Decimal Inch) | 0 |
| Axial Runout (mm) | 0.01mm |
| Radial Runout (Decimal Inch) | 0 |
| Radial Runout (mm) | 0.01mm |
| Programming Radius (Decimal Inch) | 0.015" |
| Programming Radius (mm) | 0.38mm |
| Cutting Edge Count | 2 |
| Face Cutting Edge Count | 2 |
| Tool Cutting Edge Angle (Degree) | 95 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 95 Degree |
| Neck Angle (Degree) | 0.5 Degree |
| Collision Angle (Degree) | 3.64 Degree |
| Rake Radial Angle (Degree) | 0.5 Degree |
| Maximum Ramping Angle (Degree) | 1.5 Degree |
| Cutting Direction | Right Hand |
| Flute Helix Hand | Straight |
| Cutting Geometry Type | SN200R |
| Cutting Geometry Type Technical | SN200R |
| Internal Coolant Channel | No |
| Cutting Item Material Type | Carbide |
| Shank Type | Cylindrical |
| Material | Carbide |
| Coating | AlTiN |
| Product Type | High-Feed End Mill |
