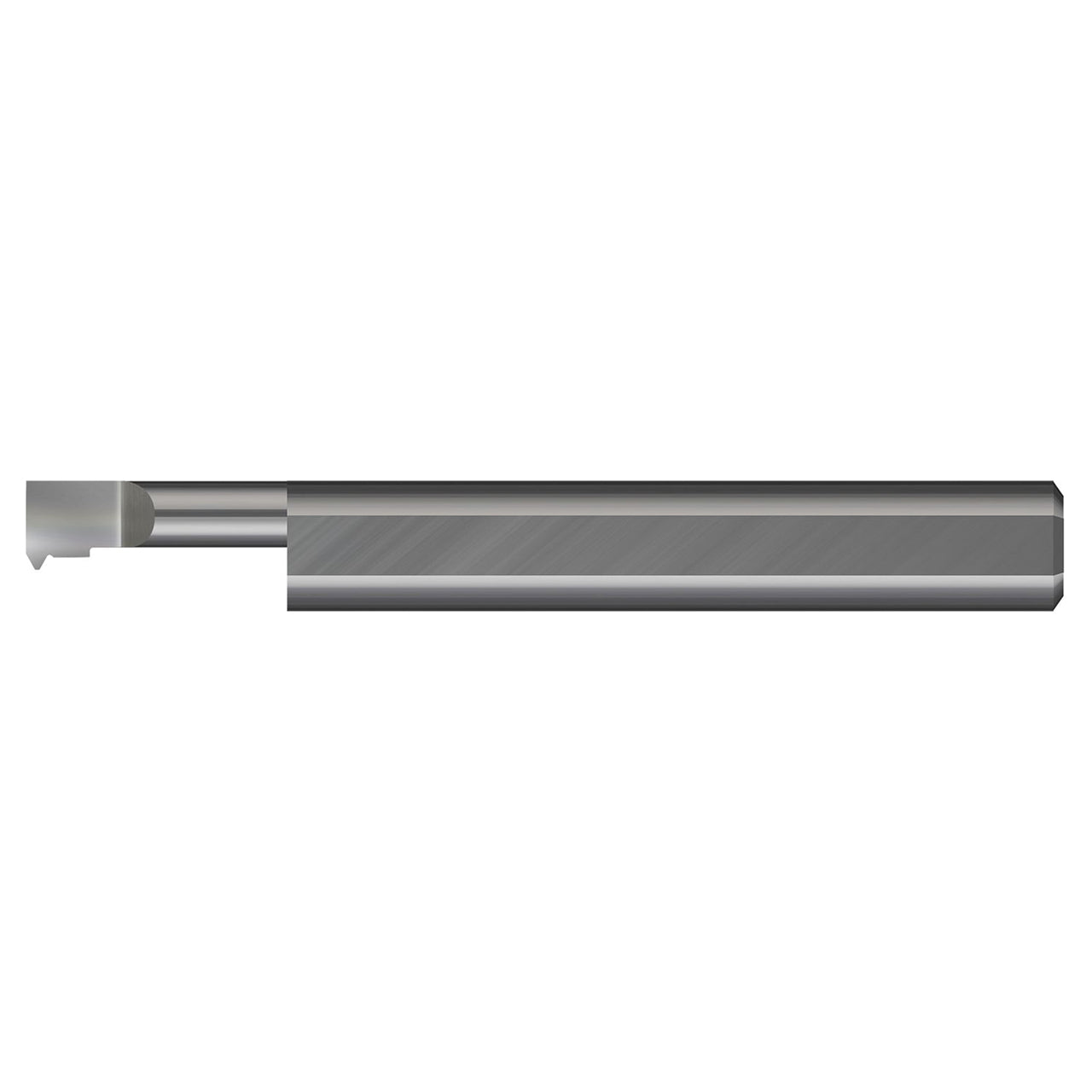

Micro 100's metric topping single point threading tools are designed for threading 60 Degree metric pitches in a right hand topping application, and feature a polished split face for optimal edge strength.
Features:- Topping design generates a controlled thread height with a reduction in burr formation
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split face geometry provides optimal edge strength
- Lockdown flat automatically locates tool on center
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TMT-030050-08 |
| Minimum Bore Diameter (mm) | 2.200mm |
| Maximum Bore Depth (mm) | 8.00mm |
| Projection (mm) | 0.271mm |
| Shank Diameter (Inch) | 0.1250" |
| Centerline Offset (mm) | 0.410mm |
| Offset (mm) | 0.319mm |
| Angle per Side (Degree) | 30 Degree |
| Included Angle (Degree) | 60 Degree |
| Overall Length (Inch) | 1.50" |
| Neck Diameter (mm) | 1.450mm |
| Thread Size | M3x0.5 |
| Metric | Y |
| Hand Direction | Right Hand |
| Coating | Uncoated |
