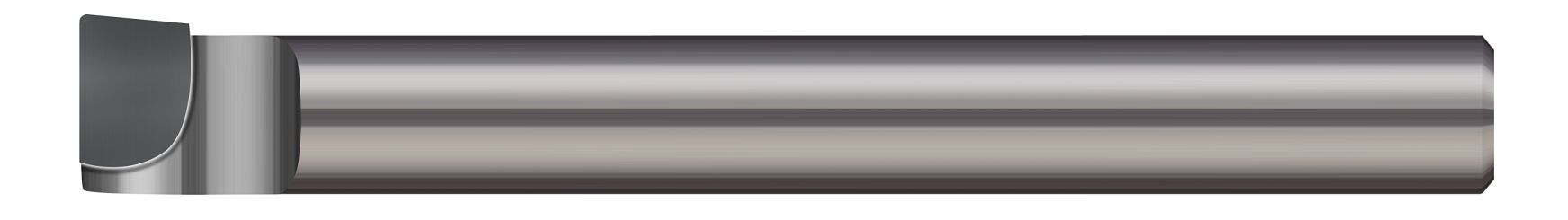

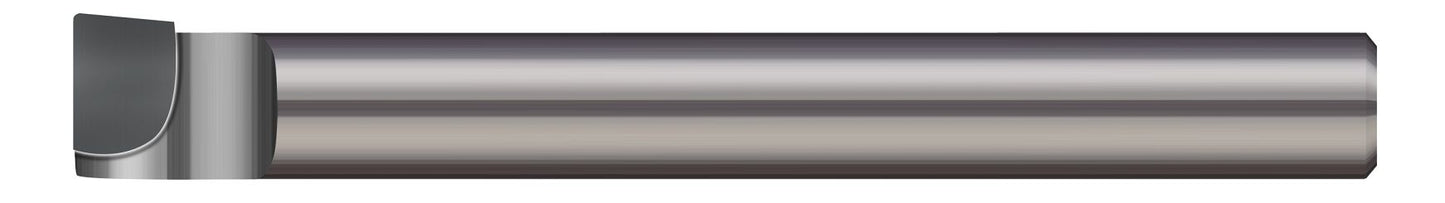

Designed for left hand facing and boring applications in bores .320" and larger, this exciting Micro 100 tool features a corner radius profile for longer tool life, increased feed rate, and better surface finish.
- Designed for left hand facing and boring applications in bores .320" and larger
- Long shank enables flexible reach options (preset at any length)
- Corner radius profile
- Steel shank with brazed tip
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.9350" |
| Hand Direction | Left Hand |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 0.7500" (3/4) |
| Centerline Offset (Inch) | 0.5600" |
| Radius (Inch) | 0.0080" |
| Brazed Insert Length (Inch) | 0.250" (1/4) |
| Brazed Insert Width (Inch) | 0.625" (5/8) |
| Overall Length (Inch) | 9" (9) |
