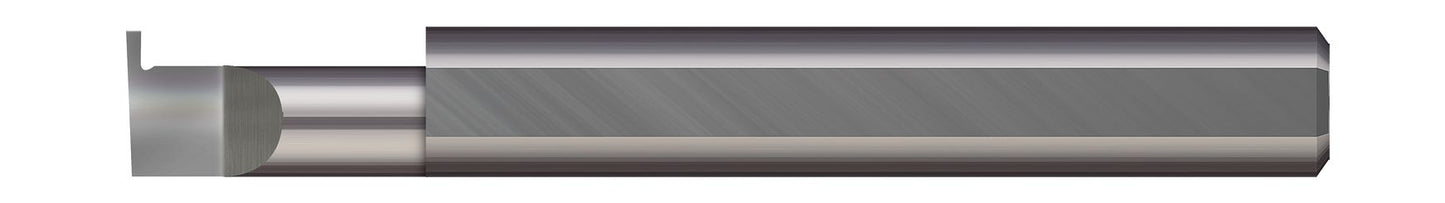

Micro 100 RRL-087-6 | 0.3970" Minimum Bore Diameter x 3/8" Maximum Bore Depth x 0.0870" Width x 0.1000" Projection x 3/8" Shank x 2-1/2" OAL Uncoated Carbide Grooving Tool

Micro 100 RRL-087-6 | 0.3970" Minimum Bore Diameter x 3/8" Maximum Bore Depth x 0.0870" Width x 0.1000" Projection x 3/8" Shank x 2-1/2" OAL Uncoated Carbide Grooving Tool

SKU: 25130890

$65.00 USD
$65.00 USD $65.00 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

Designed for generating retaining ring grooves in left hand turning applications, Micro 100's solid carbide left hand retaining ring grooving tools features a sharp corner profile and a lockdown flat.

  • Designed for generating retaining ring grooves in a left hand turning application
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Sharp corner profile
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.3970"
Hand Direction Left Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 0.375" (3/8)
Projection (Inch) 0.1000"
Shank Diameter (Inch) 0.3750" (3/8)
Centerline Offset (Inch) 0.1875" (3/16)
Face Dimension 0.188" (3/16)
Neck Diameter (Inch) 0.2700"
Overall Length (Inch) 2.50" (2-1/2)
Split Length (Inch) 0.210"
Tooth Width (Inch) 0.0870"
