Product Specifications
| Manufacturer Part Number | RR-062-500-187 |
| Minimum Bore Diameter (Decimal Inch) | 0.205" |
| Head Width (Decimal Inch) | 0.188" |
| Head Width (Inch) | 3/16" |
| Maximum Bore Depth (Inch) | 1/2" |
| Maximum Bore Depth (Decimal Inch) | 0.500" |
| Projection (Decimal Inch) | 0.030" |
| Shank Diameter (Decimal Inch) | 0.187" |
| Shank Diameter (Inch) | 3/16" |
| Centerline Offset (Decimal Inch) | 0.093" |
| Centerline Offset (Inch) | 3/32" |
| Neck Diameter (Decimal Inch) | 0.187" |
| Neck Diameter (Inch) | 3/16" |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (Inch) | 2" |
| Tooth Width (Decimal Inch) | 0.062" |
| Tooth Width (Inch) | 1/16" |
| Cutting Direction | Right Hand |
| Coating | Uncoated |

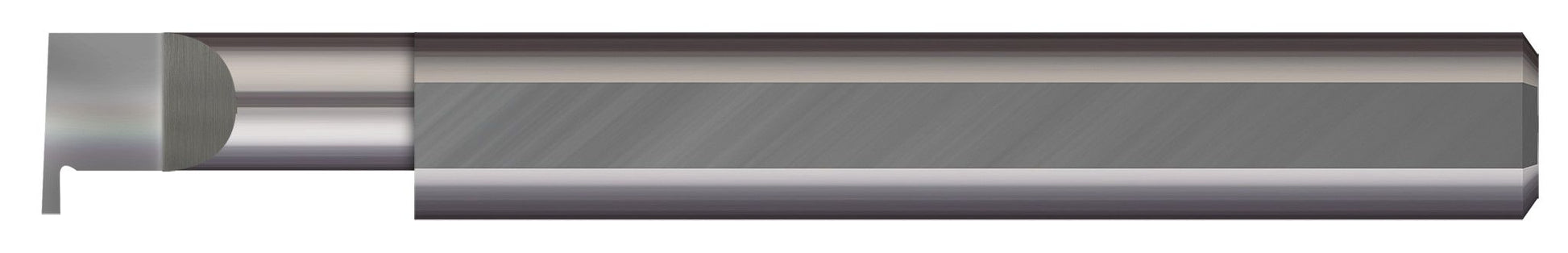

| Product Type | Grooving Tool |
