Micro 100

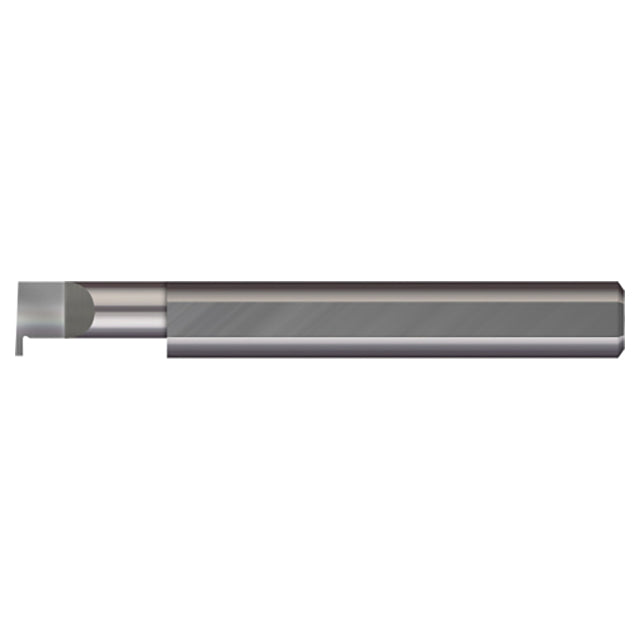

Micro 100 RR-030-8 | 0.030" Width x 1/2" Maximum Hole Depth x 1/4" Shank x 2-1/2" OAL Uncoated Carbide Retaining Ring Grooving Tool

Micro 100 RR-030-8 | 0.030" Width x 1/2" Maximum Hole Depth x 1/4" Shank x 2-1/2" OAL Uncoated Carbide Retaining Ring Grooving Tool

SKU: 25130686

$39.95 USD
$39.95 USD $39.95 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 5 Grams

View full details
Product Specifications
Min Bore Diameter (Inch) 1/4"
Min Bore Diameter (Decimal Inch) 0.2500"
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 1/2"
Max Bore Depth (Decimal Inch) 0.500"
Projection (Decimal Inch) 0.0500"
Shank Diameter (Inch) 1/4"
Shank Diameter (Decimal Inch) 0.2500"
Centerline Offset (Inch) 1/8"
Centerline Offset (Decimal Inch) 0.1250"
Face Dimension (Inch) 1/8"
Face Dimension (Decimal Inch) 0.125"
Neck Diameter (Decimal Inch) 0.1950"
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.50"
Split Length (Decimal Inch) 0.150"
Tooth Width (Decimal Inch) 0.0300"
