Product Specifications

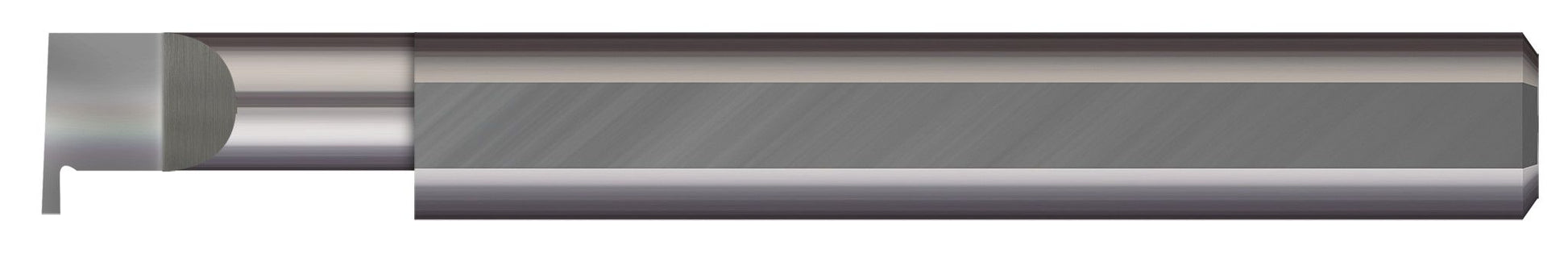

| Manufacturer Part Number | RR-030-375-160X |
| Minimum Bore Diameter (Decimal Inch) | 0.178" |
| Head Width (Decimal Inch) | 0.160" |
| Maximum Bore Depth (Inch) | 3/8" |
| Maximum Bore Depth (Decimal Inch) | 0.375" |
| Projection (Decimal Inch) | 0.030" |
| Shank Diameter (Decimal Inch) | 0.187" |
| Shank Diameter (Inch) | 3/16" |
| Centerline Offset (Decimal Inch) | 0.066" |
| Neck Diameter (Decimal Inch) | 0.160" |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (Inch) | 2" |
| Tooth Width (Decimal Inch) | 0.030" |
| Cutting Direction | Right Hand |
| Coating | AlTiN |
| Product Type | Grooving Tool |
