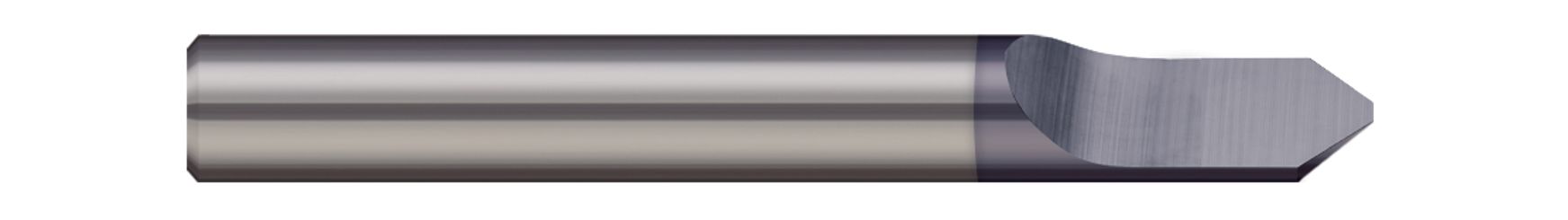

Designed for engraving and v-grooving in various applications, this half round, drill style solid carbide, single ended, engraving cutter features a tipped off end diameter for improved cutting.
- Designed for engraving and v-grooving in various applications
- Tipped off end diameter for improved cutting
- Point offset (Y) represents half of flat generated in workpiece (Workpiece Flat = 2Y)
- Half round style
- Relieved for right hand milling
- AlTiN coating option for added lubricity and increased wear resistance in difficult-to-machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Finish/Coating | AlTiN |
| Shank Diameter (mm) | 6 mm |
| Offset (mm) | 0.10 mm |
| Angle per Side | 45 |
| Included Angle | 90 |
| Face Dimension | 0.12 mm |
| Metric (Yes/No) | Yes |
| Overall Length (mm) | 57.0 mm |
| Split Length (mm) | 8 mm |
