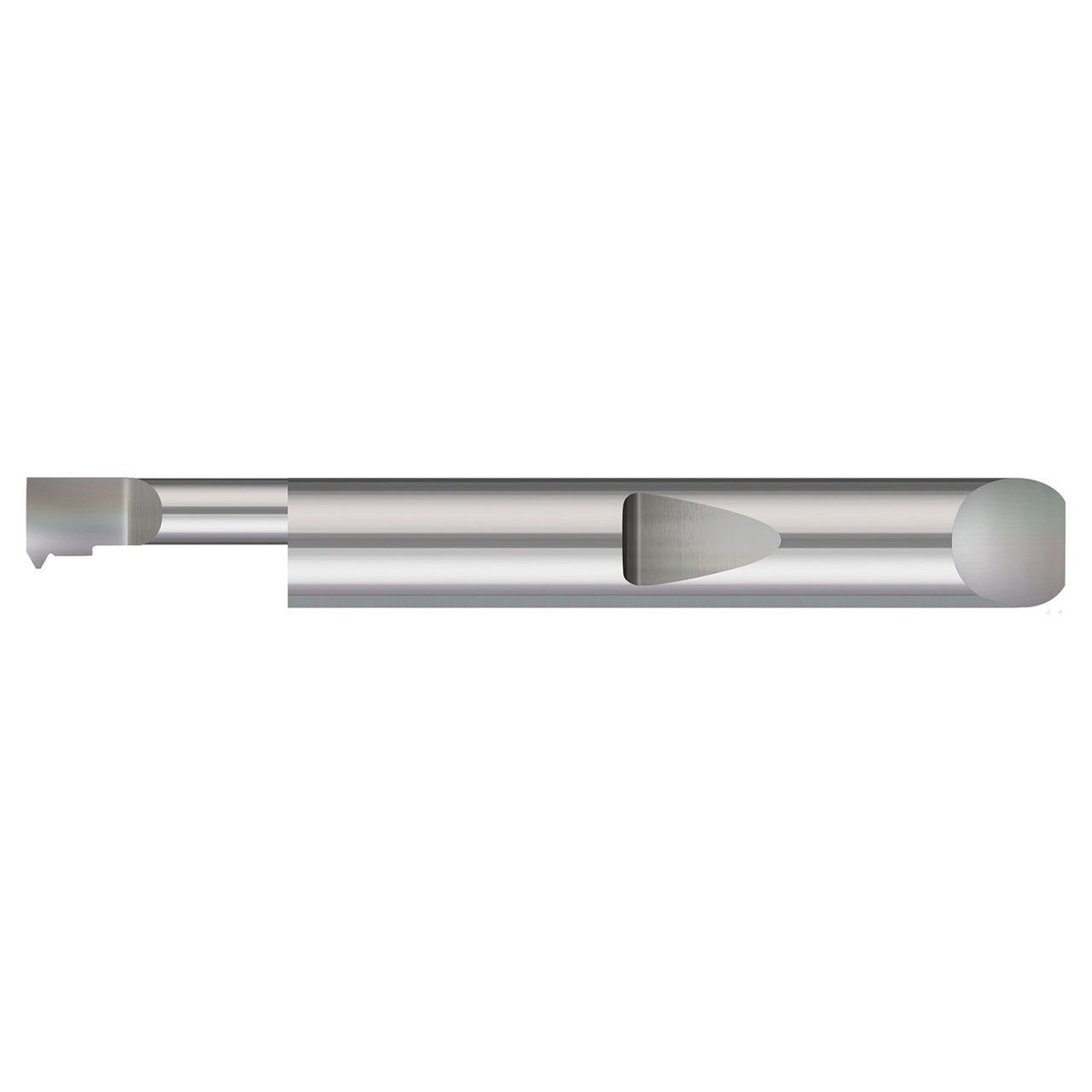

Our quick change single point Un threading tools are designed for threading 60 Degree Un pitches in a right hand topping application, and allow for generating a controlled thread height with a reduction in burr formation.
Features:- Topping design generates a controlled thread height with a reduction in burr formation
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split face geometry provides optimal edge strength
- Coolant fed enabled shank design
- Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | QTT-051624-100 |
| Minimum Bore Diameter (Inch) | 0.2420" |
| Maximum Bore Depth (Inch) | 1.000" (1) |
| Projection (Inch) | 0.0226" |
| Shank Diameter (Inch) | 0.3125" (5/16) |
| Centerline Offset (Inch) | 0.0638" |
| Offset (Inch) | 0.021" |
| Angle per Side (Degree) | 30 Degree |
| Included Angle (Degree) | 60 Degree |
| Length from Holder (Inch) | 1.353" |
| Overall Length (Inch) | 2.50" (2-1/2) |
| Neck Diameter (Inch) | 0.1909" |
| Thread Size | 5/16-24 |
| Hand Direction | Right Hand |
| Coating | Uncoated |
