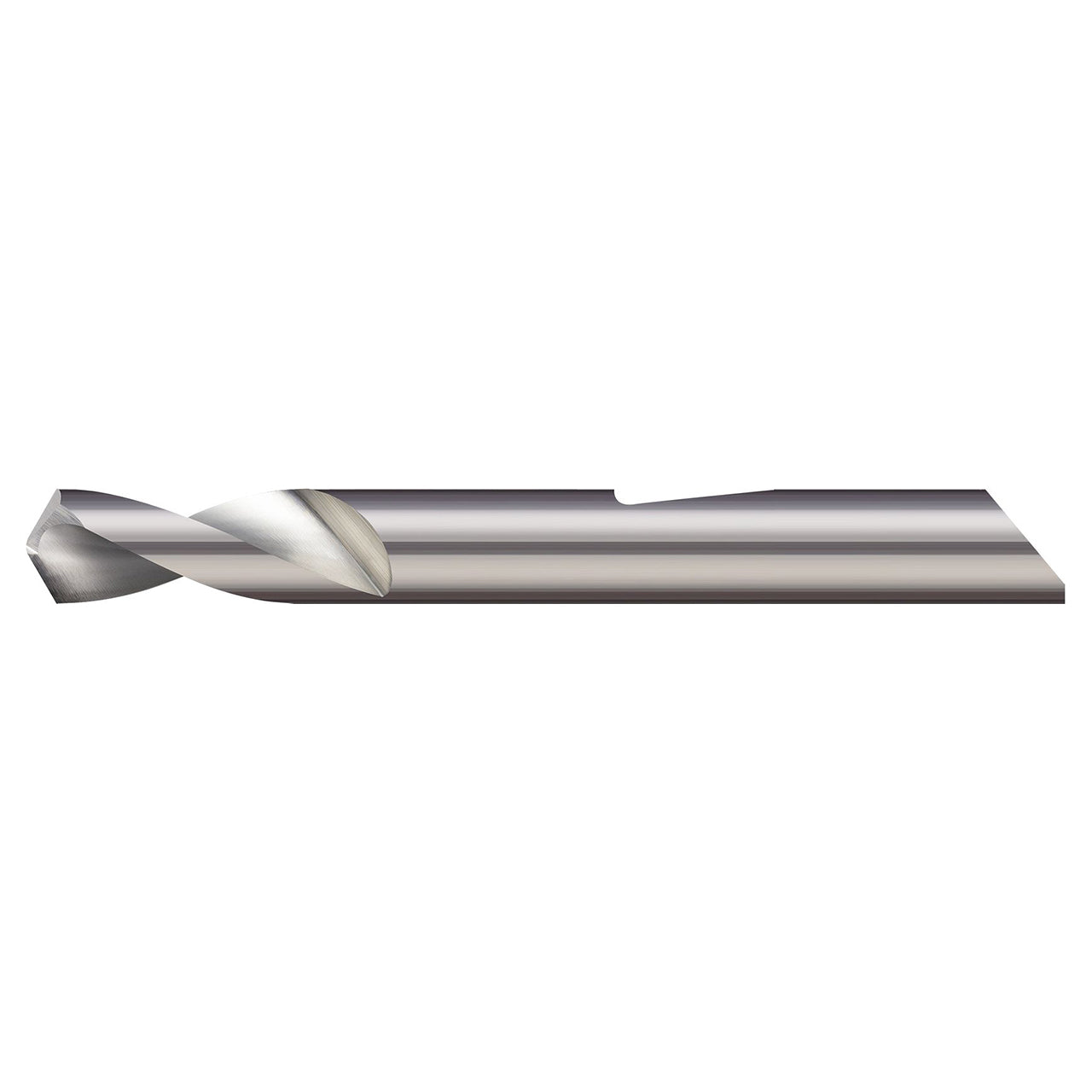

Micro 100's product line of spotting drills, can also be utilized for countersinking and chamfering existing holes and features a narrow web thickness for spotting small diameter holes.
Features:- 90 Degree, 120 Degree, and 140 Degree included angles
- Narrow web thickness allows for spotting small diameter holes
- Point geometry designed for self-centering
- 2 Flutes
- Coolant fed enabled shank design
- Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | QSPD-187-100X |
| Drill Diameter (Inch) | 0.1875" (3/16) |
| Flute Length (Inch) | 0.625" (5/8) |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Length from Holder (Inch) | 1.090" |
| Overall Length (Inch) | 2.00" (2) |
| Point Angle (Degree) | 100 Degree |
| Type | II |
| Web Thickness (Inch) | 0.005" |
| Number of Flutes | 2 |
| Coating | AlTiN |
