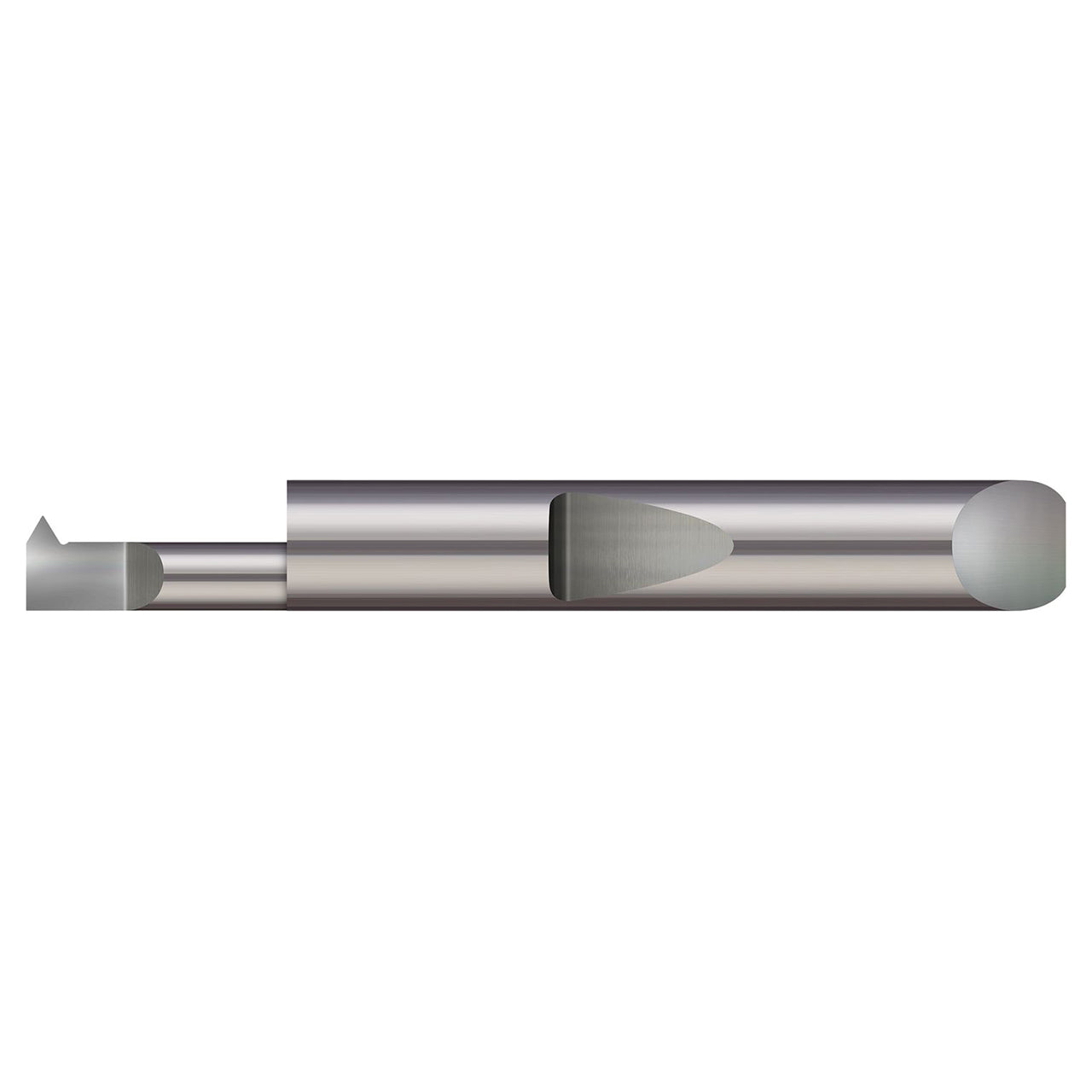

• QITL-320750X.jpg
1 1

Micro 100

Micro 100 QITL-320750X | 8-40 Thread 0.3420" Minimum Bore Diameter x 0.750" (3/4) Maximum Bore Depth x 0.0750" Projection x 0.002" Radius AlTiN Coated Left Hand Quick Change Threading Tool

Micro 100 QITL-320750X | 8-40 Thread 0.3420" Minimum Bore Diameter x 0.750" (3/4) Maximum Bore Depth x 0.0750" Projection x 0.002" Radius AlTiN Coated Left Hand Quick Change Threading Tool

SKU: 25236980

$89.15 USD
$89.15 USD $89.15 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

These Micro 100 quick change Un threading tools feature a single point, and are designed for threading multiple thread pitches (ANSI, Un, and Metric 60 Degree) in a left hand threading application.

Features:
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split face geometry provides optimal edge strength
  • Coolant fed enabled shank design
  • Corner radius profile
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part Number QITL-320750X
Minimum Bore Diameter (Inch) 0.3420"
Maximum Bore Depth (Inch) 0.750" (3/4)
Projection (Inch) 0.0750"
Shank Diameter (Inch) 0.3750" (3/8)
Centerline Offset (Inch) 0.1325"
Offset (Inch) 0.043"
Corner Radius (Inch) 0.002"
Length from Holder (Inch) 0.853"
Overall Length (Inch) 2.00" (2)
Neck Diameter (Inch) 0.2400"
Thread Size 8-40
Hand Direction Left Hand
Coating AlTiN
