Micro 100

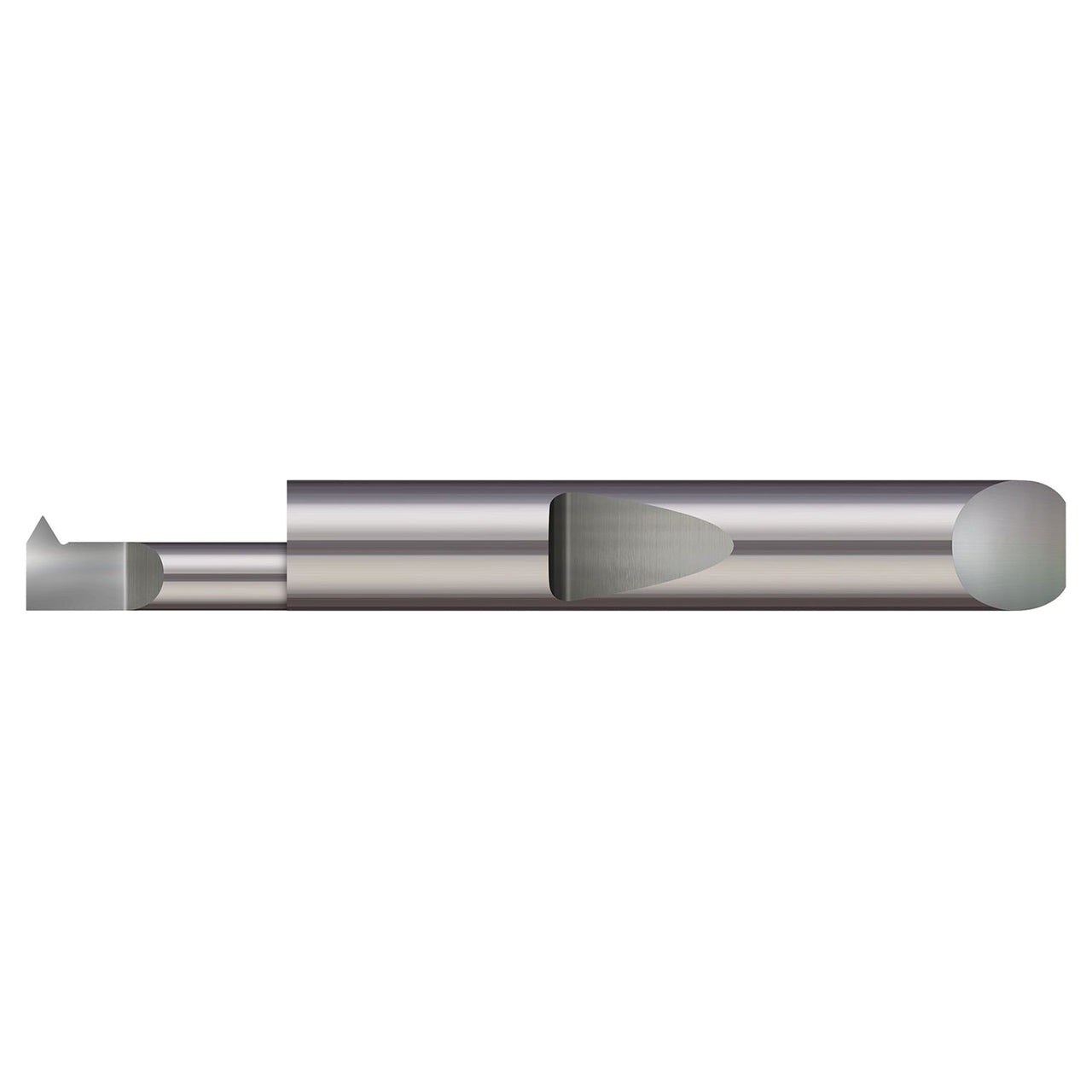

Micro 100 QITL-160400 | 14-56 Thread 0.1820" Minimum Bore Diameter x 0.400" Maximum Bore Depth x 0.0400" Projection x 0.002" Radius Uncoated Left Hand Quick Change Threading Tool

Micro 100 QITL-160400 | 14-56 Thread 0.1820" Minimum Bore Diameter x 0.400" Maximum Bore Depth x 0.0400" Projection x 0.002" Radius Uncoated Left Hand Quick Change Threading Tool

SKU: 25236961

$46.10 USD
$46.10 USD $46.10 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

These Micro 100 quick change Un threading tools feature a single point, and are designed for threading multiple thread pitches (ANSI, Un, and Metric 60 Degree) in a left hand threading application.

Features:
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split face geometry provides optimal edge strength
  • Coolant fed enabled shank design
  • Corner radius profile
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part Number QITL-160400
Minimum Bore Diameter (Inch) 0.1820"
Maximum Bore Depth (Inch) 0.400"
Projection (Inch) 0.0400"
Shank Diameter (Inch) 0.1875" (3/16)
Centerline Offset (Inch) 0.0662"
Offset (Inch) 0.023"
Corner Radius (Inch) 0.002"
Length from Holder (Inch) 0.590"
Overall Length (Inch) 1.50" (1-1/2)
Neck Diameter (Inch) 0.1150"
Thread Size 14-56
Hand Direction Left Hand
Coating Uncoated
