Micro 100

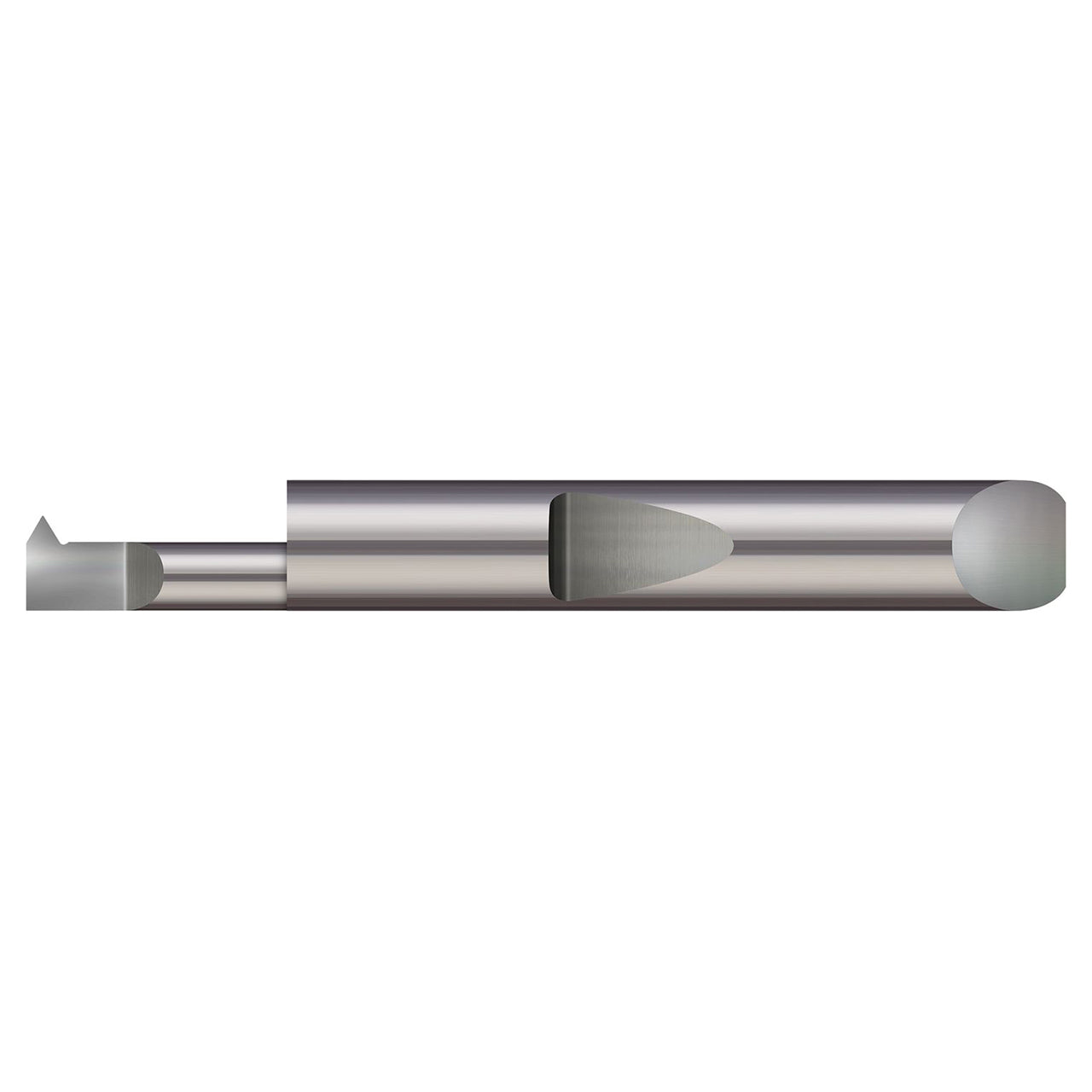

Micro 100 QITL-120500X | 20-56 Thread 0.1360" Minimum Bore Diameter x 0.500" (1/2) Maximum Bore Depth x 0.0300" Projection x 0.002" Radius AlTiN Coated Left Hand Quick Change Threading Tool

Micro 100 QITL-120500X | 20-56 Thread 0.1360" Minimum Bore Diameter x 0.500" (1/2) Maximum Bore Depth x 0.0300" Projection x 0.002" Radius AlTiN Coated Left Hand Quick Change Threading Tool

SKU: 25236958

$51.30 USD
$51.30 USD $51.30 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

These Micro 100 quick change Un threading tools feature a single point, and are designed for threading multiple thread pitches (ANSI, Un, and Metric 60 Degree) in a left hand threading application.

Features:
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split face geometry provides optimal edge strength
  • Coolant fed enabled shank design
  • Corner radius profile
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part Number QITL-120500X
Minimum Bore Diameter (Inch) 0.1360"
Maximum Bore Depth (Inch) 0.500" (1/2)
Projection (Inch) 0.0300"
Shank Diameter (Inch) 0.1875" (3/16)
Centerline Offset (Inch) 0.0262"
Offset (Inch) 0.017"
Corner Radius (Inch) 0.002"
Length from Holder (Inch) 0.590"
Overall Length (Inch) 1.50" (1-1/2)
Neck Diameter (Inch) 0.0850"
Thread Size 20-56
Hand Direction Left Hand
Coating AlTiN
