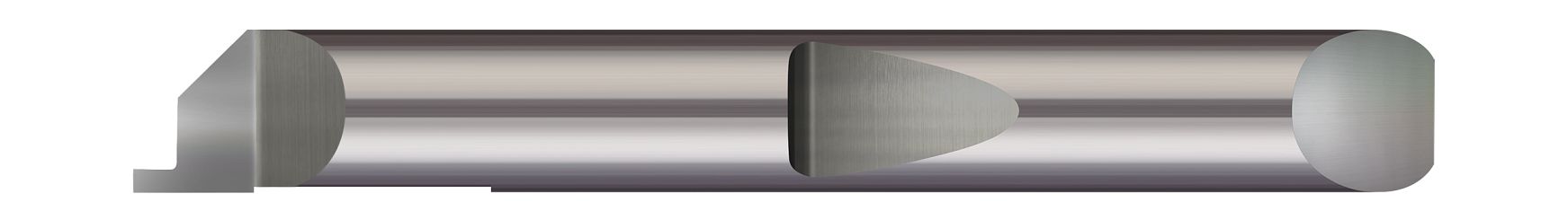

• QFG-250-030-075.jpg
1 1

Micro 100

Micro 100 QFG-250-030-075 | 0.0300" Width x 0.0750" Projection x 1/4" Minimum Bore Diameter x 3/4" Maximum Bore Depth x 1/4" Shank x 2" OAL Uncoated Carbide Grooving Tool

Micro 100 QFG-250-030-075 | 0.0300" Width x 0.0750" Projection x 1/4" Minimum Bore Diameter x 3/4" Maximum Bore Depth x 1/4" Shank x 2" OAL Uncoated Carbide Grooving Tool

SKU: 25175656

$37.45 USD
$37.45 USD $37.45 USD
Sale Sold out
Shipping calculated at checkout.

UPC:

Weight: 558 Grams

View full details

Micro 100's QFG, its offering of face grooving tools, is optimized for use with the proprietary Micro-Quik quick change system to maximize productivity through reliable accuracy and locational repeatability.

  • Designed for generating square grooves in the face of the part
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Relief ground along Maximum Bore Depth (L2) to avoid interference during deep hole applications
  • Coolant fed enabled shank design
  • Sharp corner profile
  • Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.2500" (1/4)
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 0.750" (3/4)
Projection (Inch) 0.0750"
Shank Diameter (Inch) 0.2500" (1/4)
Centerline Offset (Inch) 0.1250" (1/8)
Length from Holder 0.853"
Overall Length (Inch) 2" (2)
Overall Reach (Inch) 0.750" (3/4)
Tooth Width (Inch) 0.0300"
