Product Specifications
| Manufacturer Part Number | QBRKM-5002040K |
| Minimum Bore Diameter (Decimal Inch) | 0.250" |
| Minimum Bore Diameter (Inch) | 1/4" |
| Head Width (Decimal Inch) | 0.197" |
| Maximum Bore Depth (Decimal Inch) | 1.575" |
| Projection (Decimal Inch) | 0.075" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (Inch) | 1/4" |
| Centerline Offset | 0.0720" |
| Radius (Decimal Inch) | 0.008" |
| Length from Holder (Decimal Inch) | 1.853" |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (Inch) | 3" |
| Coating | NACRO |

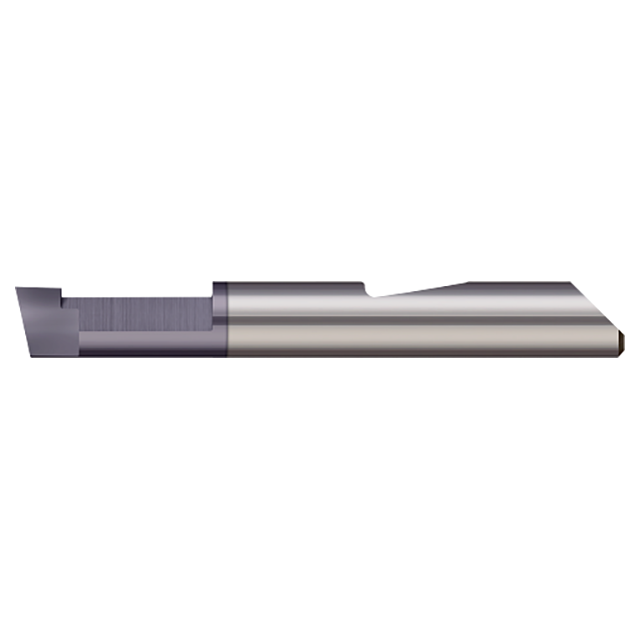

| Product Type | Quick Change Broaching Tool - Metric Keyway |
