Product Specifications
| Manufacturer Part Number | QBRKM-3981015 |
| Minimum Bore Diameter (Decimal Inch) | 0.250" |
| Minimum Bore Diameter (Inch) | 1/4" |
| Head Width (Decimal Inch) | 0.217" |
| Maximum Bore Depth (Decimal Inch) | 0.591" |
| Projection (Decimal Inch) | 0.102" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (Inch) | 1/4" |
| Centerline Offset | 0.0920" |
| Radius (Decimal Inch) | 0.004" |
| Length from Holder (Decimal Inch) | 0.853" |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (Inch) | 2" |
| Coating | Uncoated |

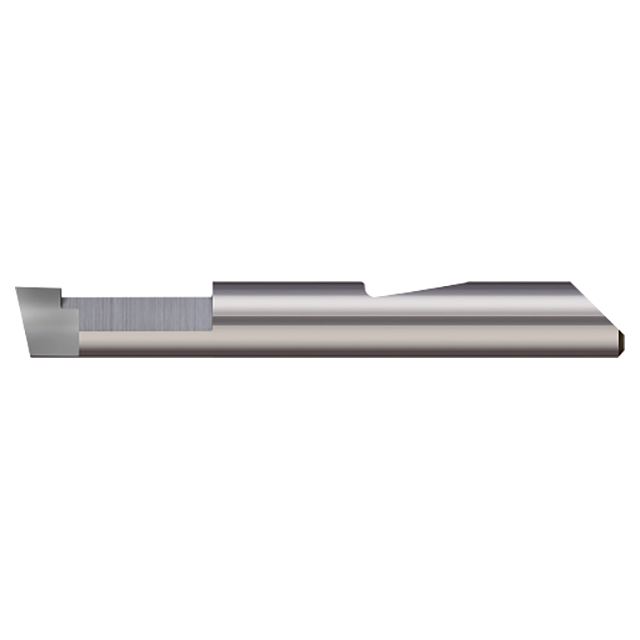

| Product Type | Quick Change Broaching Tool - Metric Keyway |
