Product Specifications
| Manufacturer Part Number | QBRK-250001000K |
| Minimum Bore Diameter (Decimal Inch) | 0.375" |
| Minimum Bore Diameter (Inch) | 3/8" |
| Head Width (Decimal Inch) | 0.323" |
| Maximum Bore Depth (Decimal Inch) | 1.000" |
| Maximum Bore Depth (Inch) | 1" |
| Projection (Decimal Inch) | 0.150" |
| Shank Diameter (Decimal Inch) | 0.370" |
| Shank Diameter (Inch) | 3/8" |
| Centerline Offset | 0.1350" |
| Length from Holder (Decimal Inch) | 1.353" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Coating | NACRO |

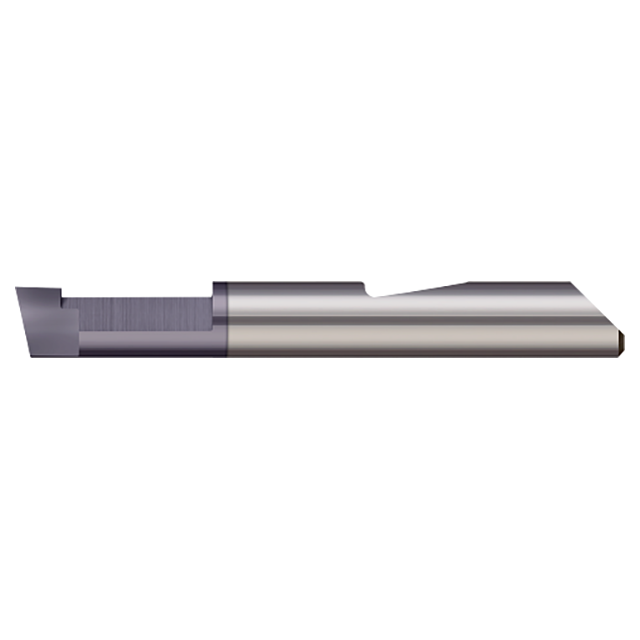

| Product Type | Quick Change Broaching Tool - Standard Keyway |
