Product Specifications
| Manufacturer Part Number | QBRK-125001000K |
| Minimum Bore Diameter (Decimal Inch) | 0.187" |
| Minimum Bore Diameter (Inch) | 3/16" |
| Head Width (Decimal Inch) | 0.159" |
| Maximum Bore Depth (Decimal Inch) | 1.000" |
| Maximum Bore Depth (Inch) | 1" |
| Projection (Decimal Inch) | 0.080" |
| Shank Diameter (Decimal Inch) | 0.187" |
| Shank Diameter (Inch) | 3/16" |
| Centerline Offset | 0.0650" |
| Length from Holder (Decimal Inch) | 1.090" |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (Inch) | 2" |
| Coating | NACRO |

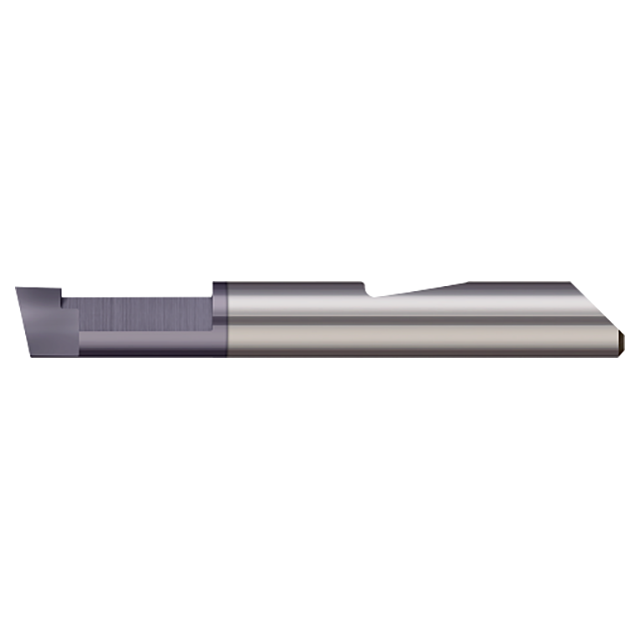

| Product Type | Quick Change Broaching Tool - Standard Keyway |
