Product Specifications
| Manufacturer Part Number | QBRH-2025 |
| Head Width (Decimal Inch) | 0.075" |
| Maximum Bore Depth (Decimal Inch) | 0.157" |
| Shank Diameter (Decimal Inch) | 0.187" |
| Shank Diameter (Inch) | 3/16" |
| Centerline Offset | -0.0190" |
| Radius (Decimal Inch) | 0.002" |
| Length from Holder (Decimal Inch) | 0.590" |
| Overall Length (Decimal Inch) | 1.500" |
| Overall Length (Inch) | 1-1/2" |
| Coating | Uncoated |

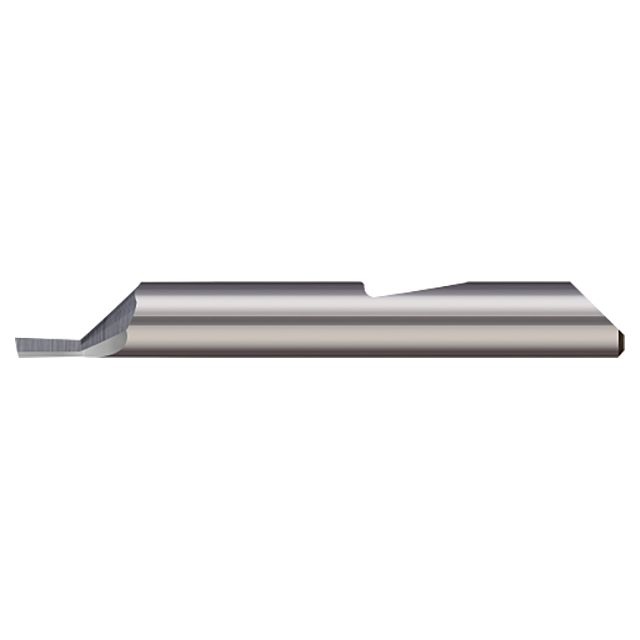

| Product Type | Quick Change Broaching Tool - Hexagon |
