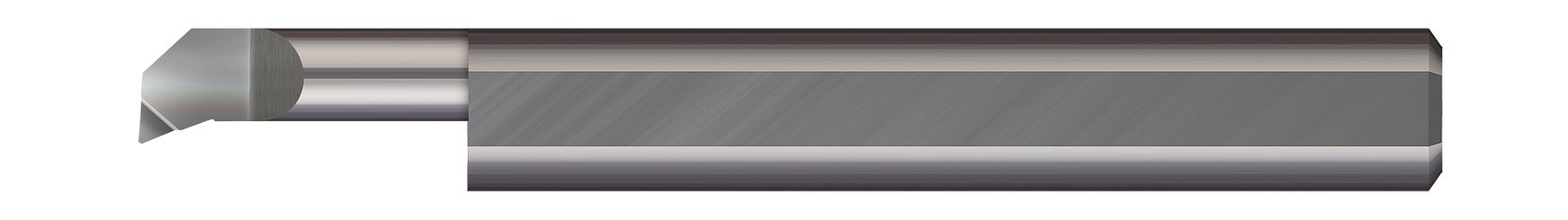

The top rake geometry of this Micro 100 solid carbide Boring Tool provides freer cutting, while its lockdown flat automatically locates the tool on center.
- Optimized for finishing operations
- Top rake geometry provides freer cutting
- Polished face for reducing galling
- Corner radius profile
- Lockdown flat automatically locates tool on center
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid Carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.1220" |
| Hand Direction | Right Hand |
| Finish/Coating | AlTiN |
| Max Bore Depth (Inch) | 0.500" (1/2) |
| Projection (Inch) | 0.0200" |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Centerline Offset (Inch) | 0.0475" |
| Corner Radius (Inch) | 0.004" |
| Neck Diameter (Inch) | 0.0900" |
| Overall Length (Inch) | 1.50" (1-1/2) |
