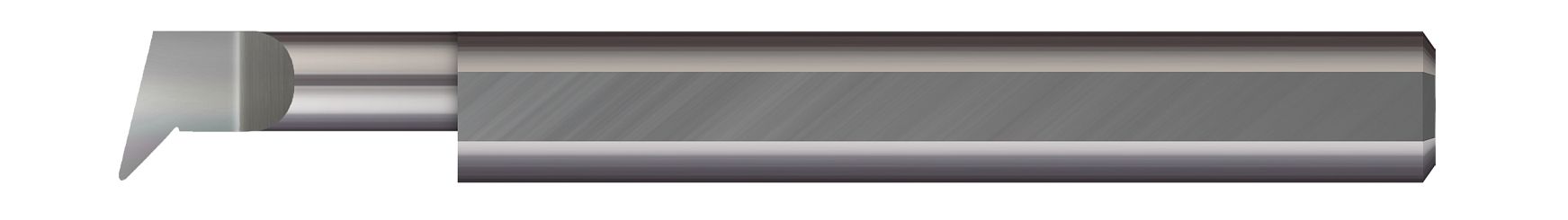

Micro 100's fully stocked, solid carbide Angled Profiling Tools are designed for both radial and axial profiling and are excellent for fine finishing. They feature a corner radius profile and a lockdown flat to automatically locate the tool on center.
- Designed for both radial and axial profiling
- Unique design maximizes tool versitilty and part feature creation
- Excellent choice for fine finishing
- Corner radius profile
- Lockdown flat automatically locates tool on center
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.4320" |
| Hand Direction | Right Hand |
| Finish/Coating | AlTiN |
| Max Bore Depth (Inch) | 0.750" (3/4) |
| Projection (Inch) | 0.1200" |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Centerline Offset (Inch) | 0.1600" |
| Corner Radius (Inch) | 0.008" |
| Neck Diameter (Inch) | 0.2900" |
| Overall Length (Inch) | 3" (3) |
